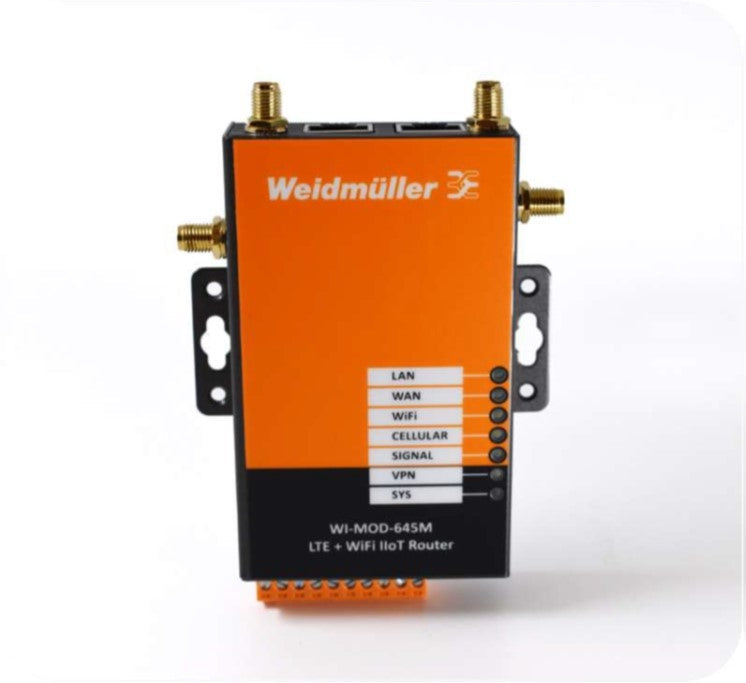

WI-MOD-645M 4G/LTE Cellular WiFi Modem and Router

Secure Industrial Cellular and WiFi connectivity for IIoT applications

Features

• 3G/4G/LTE Connectivity including Band 28
• Compact design for easy integration into machines

or electrical cabinets

• SMS to oontrol router online/offline, reboot, status,

IO alarm, WiFi state

• Integrated RS232 Serial Server
• Automatic fallback to 3G networks
• LAN/WAN Fallback for redundant networks
• WiFi for remote hotspot and mobile applications
• IPSec & OpenVPN Client & Server, L2TP, PPTP
• GRE, Port Forward, DMZ
• Enhanced security for both cyber and data transmission
• 2 x 10/100M LAN / WAN Ports
• Antenna diversity for WiFi and Cellular bands
• 5-40VDC input range with wide operating temperature

Applications

• Water / wastewater pump control connectivity
• Irrigation monitoring and control
• Secure remote access to equipment
• Utility metering
• Wellhead monitoring


The WI-MOD-645M is an LTE CAT-1 industrial grade  3G/4G/4GX Wifi Modem Router, based on the latest OpenWrt  platform. Low-power LTE CAT-1 router, with download speeds  of up to 1OMbps and upload speeds of up to 5Mbps, which  allows a smooth migration from 3G to 4G LTE, with the benefits  of a lesser latency and improved network coverage.

The WI-MOD-645M enables users to quickly create a secure  and fast wireless network. It features a built-in Wi-Fi N300 with  speeds of up to 300 Mbps, one Ethernet WAN port for fixed  internet connection and one Ethernet LAN port, as well as a  GPIO with four digital output ports. Among some of the other  features include, VPN IPSEC, PPTP, L2TP and Open VPN to  establish a secure connection over the 3G/4G network.

The durable and rugged design makes this router an ideal  choice for remote harsh environments. The compact design,  easy integration and advanced built-in features make it suitable  for a wide range of industrial M2M applications, including  industrial automation, building automation, smart metering,  security, surveillance, transportation, health, mining and  environmental monitoring.

• Video Surveillance
• Pipeline management
• lloT Deployments
• Smart grid networking
• Secure Peer to Peer networks

Ordering Data

Type Order NumberWI-MOD-645M-47940109138
