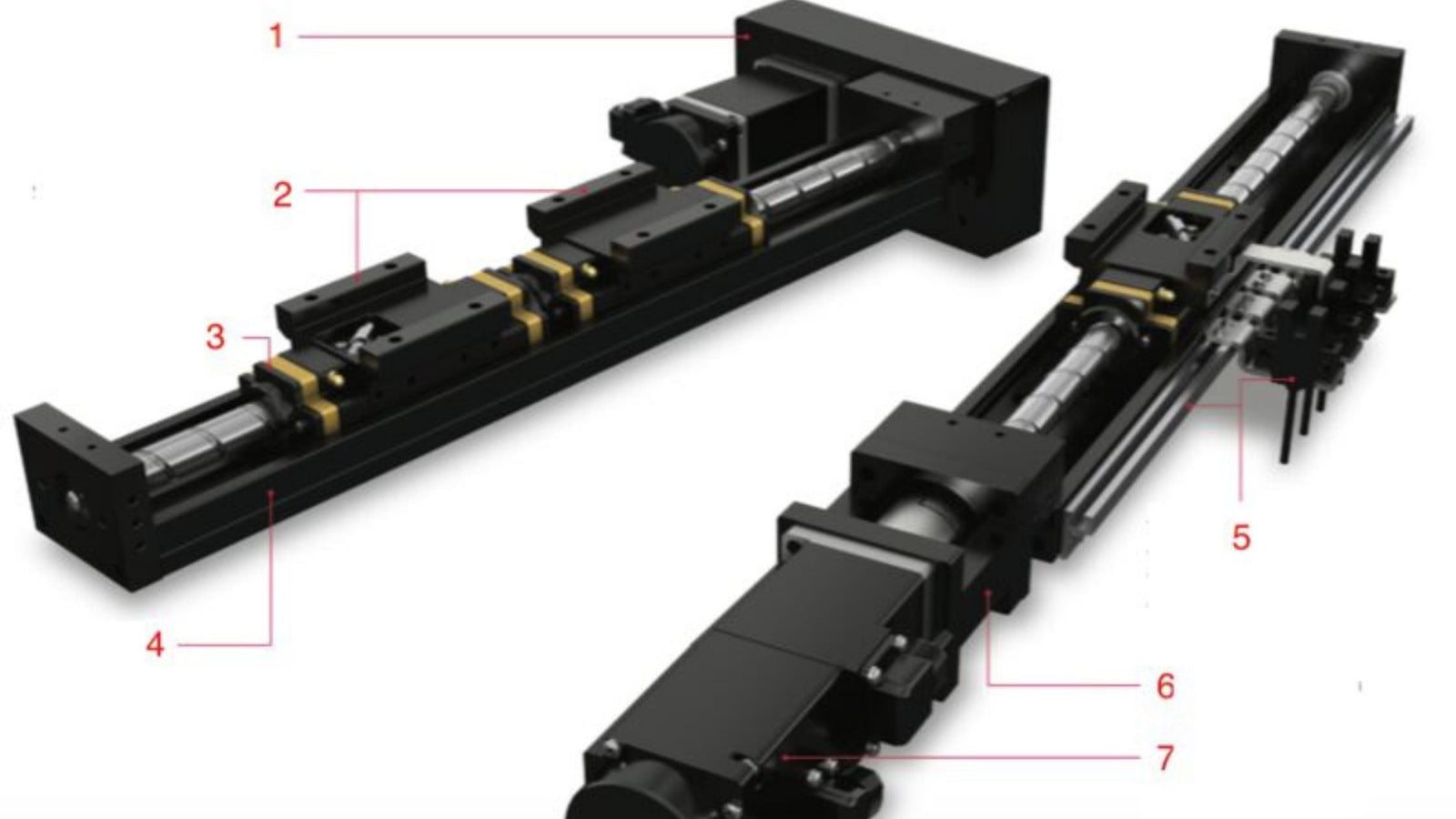

Motorized Actuator
MCE model
High performance motor with NSK Electrified
Monocarrier linear actuator
SANMOTION R
AC SERVP SYSTEMS
High-performance AC servo systems consisting of servo amplifiers with advanced vibration suppression and highly efficient servo motors.
SANMOTION F2
2-PHASE STEPPING SYSTEMS
With high torque, low vibration, low noise, and high resolution. Their rich lineup is used in a wide range of fields.
STEPPING SYSTEM
24/36 VDC Input Bipolar Microstep Driver
- 42 mm sq (NEMA 17) Motor
|
Model Number (Actuator and Motor) Lead Stroke Max |
Lead | Stroke | Max Trust | Max Speed |
| MCE03010P01K0001SKF | 1 mm | 100 mm | 1040 N | 50 mm/s |
Customize Options
- Lead: 2, 10, 12 mm
- Stroke: 50, 150 mm
Closed loop stepping system with EtherCAT/ Indexer drive is also available.
Compatible Driver and Cable
| Driver |
BS1D200P10 |
| Cable | 4835775-1 |
AC SERVO SYSTEM
24 VDC Input Multi Axis EtherCAT Amplifier (Total 300 W)
- 40 mm sq, 30 W Motor
| Model Number (Actuator and Motor) |
Brake | Lead | Stroke | Max Trust |
Max Speed |
| MCE03010P02K0001SAF | 2 mm | 100 mm | 1040 N | 100 mm/s | |
| MCE03010P02K0001SBF | ✔ | 2 mm | 100 mm | 1040 N | 100 mm/s |
Customize Options
- Lead: 2, 10, 12 mm
- Stroke: 50 to 250 mm
- Driver I/F: Analog/Pulse, single axis EtherCAT
Compatible Amplifier and Cable
| Amplifier | RF2K24A0HL5 |
| Cable | a: Motor | 1026-107009 |
| b: Encoder | EEXTKABS2410FT | |
| c: Brake | MEXTBRK2010FT | |
| d: Power | AL-00921367-01 |
200 VAC input EtherCAT Amplifier
- 40 mm sq, 100 W Motor
|
Model Number (Actuator and Motor) |
Brake | Lead | Stroke | Max Trust |
Max Speed |
| MCE03015H10K0001SCF | 10 mm | 150 mm | 704 N | 830 mm/s | |
| MCE03015H10K0001SDF | ✔ | 10 mm | 150 mm | 704 N | 830 mm/s |
- 60 mm sq, 200 W Motor
| Model Number (Actuator and Motor) |
Brake | Lead | Stroke | Max Trust | Max Speed |
| MCE06030H10K0001SEF | 10 mm | 300 mm | 2626 N | 830 mm/s | |
| MCE06030H10K0001SFF | ✔ | 10 mm | 300 mm | 2626 N | 830 mm/s |
Customize Options
- Lead: 2, 10, 12 mm
- Stroke:
MCE06 model 50 to 600 mm
- Driver I/F: Analog/Pulse, Indexer
Compatible Amplifier and Cable
| Amplifier | 100 W motor | RS3A01A2HA4 |
| 200 W Motor | RS3A02A2HA4 | |
| Cable | a: Motor | MEXTK1810FT |
| b: Encoder | EEXTKABS2410FT | |
| c: Brake | MEXTBRK2010FT |
