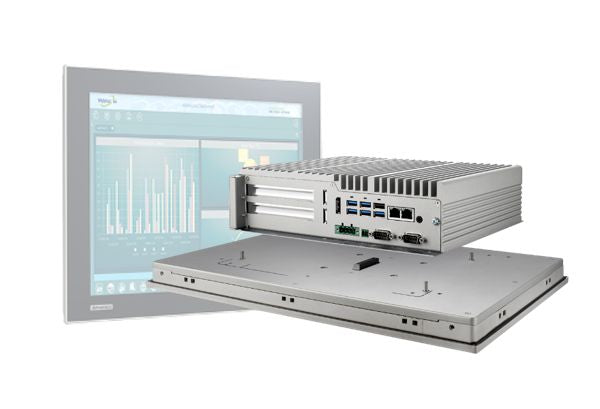

TPC-B500 TPC-B200 FPM-B700
Introduction
Computing/Monitor Box Modules with 6th Gen. Intel® Core™/Celeron®/Atom® Processor
Features
- TPC-B200: Computing Box powered by Intel® Celeron® J3455/ Atom® E3940 with 4GB SODIMM
- TPC-B500: Computing Box powered by Intel® Core™ i3-6100U/i5-6300U/ i7-6600U/ Celeron® 3955U with 8GB SODIMM
- FPM-B700: Monitor Box with 2 flexbile I/O slots to accomodate FPM-M700 I/O modules for video signal or long distance transmission
- Computing Box supports PCIe, mini PCIe, M.2, and SSD expansion③Monitor Box supports two independent video interfaces with picture-in picture (PiP) functionality and a signal transmission distance of up to 100 m via iLINK technology
- Front panel modules in varying size equipped with P-CAP multi-touch sensors (the 12.1" module features 5-wire resistive touch control)
Advantech’s TPC computing box modules are powered by a 6th generation Intel® Core™/Celeron® processor. When combined with an industrial-grade LED LCD module, the TPC series provides compact and fanless control panel solutions that support high-performance computing. The FPM monitor box's flexible modular design allow users to alter the video interfaces, simultaneously support two controllers via PiP technology, and extend the signal transmission distance to 100 m via iLINK technology.
Specifications
|
Series |
TPC-2000 |
TPC-5000 |
FPM-7002 |
||||
|
Module P/Ns |
TPC-B200-J12AE |
TPC-B200-E12AE |
TPC-B500-6C2AE |
TPC-B500-633AE |
TPC-B500-653AE |
TPC-B500-673AE |
FPM-B700-AE |
|
CPU |
Intel® Celeron® J3455 1.50GHz |
Intel® Atom® E3940 1.60 GHz |
6th Gen Intel® Celeron® 3955U 2.00 GHz |
6th Gen Intel® Core™ i3-6100U 2.30 GHz |
6th Gen Intel® Core™ i5-6300U 2.40 GHz |
6th Gen Intel® Core™ i7-6600U 2.60 GHz |
- |
|
Memory |
4GB DDR3L SDRAM (up to 8GB) |
4GB DDR4 SDRAM (up to 16GB) |
8GB DDR4 SDRAM (up to 32GB) |
8GB DDR4 SDRAM (up to 32GB) |
8GB DDR4 SDRAM (up to 32GB) |
- |
|
|
Storage |
1 x M.2 (2242) 1 x 2.5" SATA SSD |
1 x M.2 (2280) SATA 1 x 2.5" SATA SSD 1 x CFast (optional via iDoor module) |
- |
||||
|
LAN |
2 x 10/100/1000 BASE-T (2 x Intel® I210) |
3 x 10/100/1000BASE-T (2 x Intel® I210, 1 x Intel® I219) |
See ordering information, FPM-M700 |
||||
|
Expansion Slots |
1 x Full-size mini PCIe (supports GSM 11.11 SIM card) |
1 x Half-size PCIe* 2 x Full-size mini PCIe |
|||||
|
I/O |
2 x RS-232/422/485 2 x USB 3.0 2 x USB 2.0 1 x Audio line out DisplayPort 1.2 Out x 1 |
1 x RS-232, 1 x RS-232/422/485 2 x USB 3.0, 2 x USB 2.0 1 x Audio line out DisplayPort 1.2 Out x 1 |
|||||
|
Power Input |
24 VDC± 20% |
24 VDC± 20% |
24 VDC± 20% |
||||
|
Operating Temperature |
0°C~60°C |
-20°C~60°C |
0°C~60°C |
0°C~60°C |
|||
|
OS |
Windows 10 IoT Enterprise LTSB/LTSC |
Microsoft® Windows WS7P Windows 10 IoT Enterprise LTSB/LTSC |
- |
||||
|
Security |
TPM 2.0 (built-in) |
TPM 2.0 (built-in) |
- |
||||
*Max. Dimension of PCIe card for TPC-B500: 167.65 mm x 64.41 mm x 14.48 mm (D x W x H)
Modular Panel PCs
All product specifications are subject to change without notice. Last updated: 24-Aug-2021
Computing/Monitor Box Modules
DimensionsUnit: mmTPC-B200 TPC-B500FPM-B700
Ordering Information
|
Panel Module P/N |
FPM-D12T-BE |
FPM-D15T-BE |
FPM-D17T-BE |
FPM-D15W-FBE |
FPM-D18W-BE |
FPM-D21W-BE |
FPM-D24W-BE |
|
Description |
12.1" XGA TFT LED LCD |
15" XGA TFT LED LCD |
17" SXGA TFT LED LCD |
15.6" FHD TFT LED LCD |
18.5" HD TFT LEDLCD |
21.5" FHD LED LCD |
23.8" FHD TFT LED LCD |
Note: Display modulescannotwork independently. A computing box (TPC-B200/500) or a monitor box (FPM-B700) is compulsory to operate the display module.
Configurable Rear Computing Box
|
Box Module P/N |
Description |
|
TPC-B200-J12AE |
Intel® Celeron® J3455 1.50 GHz processor with 4 GB DDR3L |
|
TPC-B200-E12AE |
Intel® Atom™ E3940, 1.60 GHz, processor with 4GB DDR3L |
|
TPC-B500-6C2AE |
Intel® Celeron® 3955U 2.00 GHz processor with 4 GB DDR4 |
|
TPC-B500-633AE |
Intel® Core™ i3-6100U 2.30 GHz processor with 8 GB DDR4 |
|
TPC-B500-673AE |
Intel® Core™ i7-6600U 2.60 GHz processor with 8 GB DDR4 |
|
TPC-B500-653AE |
Intel® Core™ i5-6300U 2.40 GHz processor with 8 GB DDR4 |
|
TPC-B200-J12AO |
TPC-B200-J12AE without Audio function |
|
TPC-B200-E12AO |
TPC-B200-E12AE without Audio function |
|
TPC-B500-633AO |
TPC-B500-633AE without Audio function |
|
TPC-B500-653AO |
TPC-B500-653AE without Audio function |
|
TPC-B500-673AO |
TPC-B500-673AE without Audio function |
Configurable Rear Monitor Box
|
Box Module P/N |
Description |
|
FPM-B700-AE |
Monitor Rear Box |
Note:FPM-B700 does not include an I/O module. I/O module (FPM-M700) is necessary for video input and touch signal connection.
Configurable I/O Module for Monitor Box
|
I/O Module P/N |
Description |
|
FPM-M700-HDAE |
HDMI + USB Touch Module |
|
FPM-M700-DPAE |
Display + USB Touch Module |
|
FPM-M700-TRAE |
iLINK Tx + Rx Module |
|
FPM-M700-RXAE |
iLINK Rx Module |
Note:Up to two I/O modules can be installed onto FPM-B700-AE.
Optional Accessories
|
Part Number |
Description |
|
EWM-W157H01E |
Wi-Fi module 802.11 a/b/g/n/ac, RTL8821AE, 1T1R, BT4.0 |
|
9656EWMG00E |
Bracket for Half-size miniPCIe Wi-Fi/BT Module |
|
1750006043 |
Coaxial Cable R/P SMA (F) to MHF 1.32 150mm |
|
1750008717-01 |
Wi-Fi/BT Antenna Dipole D.B 2.4/5G WIFI 3dBi SMA/M-R BLK |
|
PWR-247-DE |
Power Adapter (60W, 24V) for TPC-B200 & FPM-B700 |
|
96PSA-A120W24T2-3 |
Power Adapter (120W, 24V) for TPC-B500 |
|
20703WX9ES0041 |
Win10 IoT Ent 2019 LTSC Entry for TPC-B200 |
|
20703WX9VS0005 |
Win10 IoT Ent 2019 LTSC Value for TPC-B500-6C2AE/633AE/653AE |
|
20703WX9HS0005 |
Win10 IoT Ent 2019 LTSC High End for TPC-B500-673AE |
|
20703WX6ES0004 |
Win10 IoT Ent 2016 LTSB Entry for TPC-B200 |
|
20703AI0NS0011 |
Android 8.1 for TPC-B200 |
|
20703WX6VS0013 |
Win10 IoT Ent 2016 LTSB Value for TPC-B500-6C2AE/633AE/653AE |
|
20703WX6HS0017 |
Win10 IoT Ent 2016 LTSB High End for TPC-B500-673AE |
|
TPC-5000T-VMKE |
VESA Kit for TPC-B200, B500 & FPM-B700 |
|
TPC-RUSB-W10LTSBE |
Recovery USB Drive for TPC-B200 |
|
TPC-RUSB-W10LTSBV |
Recovery USB Drive for TPC-B500-6C2AE/633AE/653AE |
|
TPC-RUSB-W10LTSBH |
Recovery USB Drive for TPC-B500-673AE |
|
1702002600 |
Power cable (US) 1.8 M |
|
1702002605 |
Power cable (EU) 1.8 M |
|
1702031801 |
Power cable (UK) 1.8 M |
|
1700000596 |
Power cable (CN/AU) 1.8 M |
Note:
*the Bracket, Coaxial Cable and Antenna listed above are all needed for TPC-B200 to equip with Wi-Fi/BT feature; for TPC-B500, "Coaxial Cable" is not required.
Online Downloadwww.advantech.com/products
TPC-B510Introduction
Modular Series -
Computing Box Module with 8th Gen. Intel® Core™ i3/i5/i7 Processor
Features
- Modular Computing Box powered by 8th Gen. Intel® Core™ i3- 8145UE dual-core/i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Dual channel memory slots support up to 32GB in total ③Compact, fanless embedded system with chassis grounding protection③Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)③Diverse system I/O and isolated digital I/O via iDoor technology
- Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
- Support TPM2.0 hardware security
- Modular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1" features 5-wire resistive touch)
Advantech's TPC-B510 computing box module, as a member of the Modular Series TPC family, is powered by 8th Generation Intel Core processors. With its compact and fanless design, TPC-B510 delivers high performance that not simply meets your demands for a daily-operation control panel, but a genuine Industry 4.0-era-tailored Industrial PC that features bountiful I/Os including four USB 3.1 ports, expansions with M.2 NVME SSD and 5G/Wi-Fi module support for ultra speed data transmission. With an easy pairing with modular series FPM module, the whole system makes an IP66-grade powerful Panel PC that ranges from 12.1" to 23.8" with up to FHD resolution, adapting to your corporate demands both visually and technically.
*For other Modular Series TPC/FPM family members, please find 'TPC-B500', 'TPC-B200'and 'FPM-B700' on Advantech's official website.
Specifications
General
- BIOSAMI UEFI
- CertificationBSMI, CCC, CE, FCC Class A, CB/UL ③Cooling SystemFanless design
- Dimensions (W x H x D)268.96 x 202.96 x 39.5 (mm)
- EnclosureBack housing: Die cast aluminum alloy③MountingVESA Mount, Desktop, Wall or Panel Mount ③OS SupportWin 10, Android, Linux
- Power ConsumptionTyp. 29W; Max. 65W
- Power Input24 VDC ± 20%
- Watchdog Timer15-255 sec (system)
- Weight (Net)4.5kg
- System Hardware
- CPU8th Gen. Intel® Core™ i3- 8145UE 2.20GHz Dual-core/ i5-8365UE 1.60GHz Quad-core/i7-8665UE 1.70GHz
- Quad-core processor
- MemoryDual channel DDR4 SO-DIMM (Each channel supports up to 16G)
- Environment
- Humidity10 ~ 95% RH @ 40°C, non-condensing③Ingress ProtectionIP66-rated front panel
- Operating Temperature-10~55°C (14~131°F) (w/o air flow) ③Storage Temperature-20~70°C (-4~158°F)
- Vibration ProtectionWith SSD: 1 Grms (5 ~ 500 Hz)
(Operating, random vibration)
Power Consumption with Panel Module
|
Item |
Power Consumption |
Screen Size |
Resolution |
Aspect Ratio |
|
|
Typ. |
Max. |
||||
|
TPC-B510 |
29W |
65W |
N/A |
N/A |
N/A |
|
w/ FPM-D12T-BE |
41W |
77W |
12.1" |
1024x768 |
4:3 |
|
w/ FPM-D15T-BE |
43W |
79W |
15" |
1024x768 |
|
|
w/ FPM-D17T-BE |
53W |
89W |
17" |
1280x1024 |
|
|
w/ FPM-D15W-FBE |
47W |
83W |
15.6" |
1920x1080 |
16:9 |
|
w/ FPM-D18W-BE |
40W |
76W |
18.5" |
1366x768 |
|
|
w/ FPM-D21W-BE |
43W |
79W |
21.5" |
1920x1080 |
|
|
w/ FPM-D24W-BE |
55W |
91W |
23.8" |
1920x1080 |
|
*Please find below the Ordering Information for the Panel Module.Rear View
1 x 8G DDR4 SO-DIMM (Built-in)
- LAN2 x 10/100/1000BASE-T
- Expansion Slot1 x Full-size mini PCIe
- Storage Slot1 x M.2 M key 2280 (SATA or NVMe PCIe x4) 1 x M.2 B key 2242 (SATA / PCIe)
Ordering Information
- TPC-B510-833AEIntel® Core™ i3-8145UE 2.20GHz Dual-core Processor, 8G DDR4 RAM
- TPC-B510-853AEIntel® Core™ i5-8365UE 1.60 GHz Quad-core Processor, 8G DDR4 RAM
- TPC-B510-873AEIntel® Core™ i7-8665UE 1.70GHz Quad-core Processor, 8G DDR4 RAM
- TPC-B510-833AOIntel® Core™ i3-8145UE 2.20GHz Dual-core Processor, 8G DDR4 RAM without Audio Line out
- TPC-B510-853ACOIntel® Core™ i5-8365UE 1.60 GHz Quad-core Processor, 8G DDR4 RAM without Audio Line out (Mfg: China)③TPC-B510-873AOIntel® Core™ i7-8665UE 1.70GHz Quad-core Processor, 8G DDR4 RAM without Audio Line out
|
Panel Module P/N |
FPM-D12T-BE |
FPM-D15T-BE |
FPM-D17T-BE |
FPM-D15W-FBE |
FPM-D18W-BE |
FPM-D21W-BE |
FPM-D24W-BE |
|
Description |
12.1" XGA TFT LED LCD |
15" XGA TFT LED LCD |
17" SXGA TFT LED LCD |
15.6" FHD TFT LED LCD |
18.5" HD TFT LEDLCD |
21.5" FHD LED LCD |
23.8" FHD TFT LED LCD |
*For more information about the panel module, please refer to "FPM-Display Module" Data Sheet.
Optional Accessories
- 96PSA-A120W24T2-3120W 24VDC power supply
- 1702002600Power cable (US) 1.8 M
- 1702002605Power cable (EU) 1.8 M
- 1702031801Power cable (UK) 1.8 M
- 1700000596-11Power cable (China/Australia) 1.8 M
Embedded OS
20703WX9HS0020Win10 LTSC for TPC-B510-873AE③20703WX9VS0023Win10 LTSC for TPC-B510-833AE/853AE③Android
Advantech Linux
iDoor Modules
③PCM-24D2R4-BEIsolated RS-422/485, DB9 x 2, (USB type) ③PCM-24D2R2-BEIsolated RS-232, DB9 x 2, (USB type)③PCM-24R1TP-AE1-Port Gigabit Ethernet, Intel® 82574L, mPCIe, RJ45 ③PCM-27D24DI-AEDigital I/O, 16 DI / 8 DO, Isolation, DB37 x 1 ③PCM-24S2WF-BE802.11 a/b/g/n/ac 2T2R w/BT4.1, Atheros QCA6174A ③PCM-26D2CA-AE2-Port Isolated CANBus mPCIe, CANOpen, DB9③PCM-23U1DG-CEInternal locked USB Slot for USB Dongle, mPCIe
Application Software
|
Advantech WebAccess/SCADA is a 100% browser-based IIoT software platform aimed at supervisory control and data acquisition (SCADA) operations. WebAccess/SCADA provides open interfaces that allow our customers and partners to develop unique IoT applications for different vertical markets. In addition to supporting traditional SCADA functions, the platform features an HTML5-based user interface and intelligent dashboard to facilitate cross-platform, cross-browser data analysis. Moreover, WebAccess/SCADA not only offers built-in widgets, but is also equipped with an innovative Widget Builder that enables customers to build their own widgets. |
|
|
Advantech WebAccess/HMI is human-machine interface (HMI) software based on Microsoft's Windows operating system. This software features excellent communication and monitoring capabilities, supports more than 350 PLC communication protocols, and offers a wide choice of screen design objects to satisfy diverse integrations of factory automation and HMI operation and monitoring requirements. |
Please note: If some optional modules are offered with the system, additional system certificates may be required in certain regions/countries. Please contact Advantech for certificate compliance.
7 x Interchangeable Display Modules forTPC-B200 Computing Box TPC-B500 Computing Box FPM-B700 Monitor Box
Introduction
Interchangeable Display Modules with 12" XGA / 15" XGA / 17" SXGA / 15.6" FHD / 18.5" HD / 21.5" FHD / 23.8" FHD
Features
- Modular front display design in three application-based module categories, enabling flexible configurations
- Front panel module with P-CAP multi-touch sensor available in various sizes (12.1" module is equipped with 5-wire resistive touch control)
- Industrial-grade LED LCD with 50,000 hours (18.5"/23.8" 30,000 hours, 15" 70,000 hours) lifetime
- Built-in intelligent home key and i-Key (only models with P-CAP touch)③System status LED indicators in front panel
- IP66-rated front panel and panel mount
- Optional Wi-Fi antenna and NFC reader on the front panel (not available in 12")
- Rear mounted computing box or monitor box module is compulsory to activate display module
Advantech’s modular display series offers various display modules ranging between 12.1" and 23.8" inches in size to go with two selections of computing boxes (TPC-B200/TPC-B500) or one selection of monitor boxes (FPM-B700) for multiple configurations that can be flexibly adapted to various scenarios. Modular display series are equipped with industrial grade LCD and Projected Capacitive touch (12" Resistive touch) screens, providing the best user experience and reliable operation. The modular design ensures flexible configuration and easy maintenance/upgrades. Its robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress. Moreover, optional Wi-Fi/NFC antennas can be built into the front panel for enhanced connectivity and signal reception.
Specifications
|
Part Number |
FPM-D12T-BE |
FPM-D15T-BE |
FPM-D17T-BE |
FPM-D15W-FBE |
FPM-D18W-BE |
FPM-D21W-BE |
FPM-D24W-BE |
|
|
LCD Panel |
Display Size |
12" |
15" |
17" |
15.6" |
18.5" |
21.5" |
23.8" |
|
Display Type |
XGA TFT LED LCD |
XGA TFT LED LCD |
SXGA TFT LEDLCD |
FHD TFT LED LCD |
HD TFT LED LCD |
FHD TFT LED LCD |
FHD TFT LED LCD |
|
|
Aspect Ratio |
4:3 |
5:4 |
16:9 |
|||||
|
Max.Resolution |
1024 x 768 |
1024 x 768 |
1280 x 1024 |
1920 x 1080 |
1366 x 768 |
1920 x 1080 |
1920 x 1080 |
|
|
Max. Color |
16.2M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
16.7M |
|
|
Luminance |
600 cd/m² |
300 cd/m² |
350 cd/m² |
450 cd/m² |
250 cd/m² |
250 cd/m² |
350 cd/m² |
|
|
Viewing Angle (H/V) |
178°/178° |
176°/176° |
160°/140° |
170°/170° |
170°/160° |
178°/178° |
178°/178° |
|
|
Backlight Life |
50,000 hr |
70,000 hr |
50,000 hr |
50,000 hr |
30,000 hr |
50,000 hr |
30,000 hr |
|
|
Contrast Ratio |
1000:1 |
2000:1 |
800:1 |
800:1 |
1000:1 |
1000:1 |
1000:1 |
|
|
Touchscreen |
Type |
5-Wire resistive |
PCAP |
PCAP |
PCAP |
PCAP |
PCAP |
PCAP |
|
Light Transmission |
Above 75% |
90% ± 3% |
90% ± 3% |
90% ± 3% |
90% ± 3% |
90% ± 3% |
90% ± 3% |
|
|
Anti-Glare Treatment |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Built-In iKey |
N/A |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
|
Expandibility |
WiFi/NFC Support onFront Panel |
N/A |
Optional (Please contact Advantech for more information.) |
|||||
Modular Panel PCs
All product specifications are subject to change without notice. Last updated: 5-Jan-2021
7 x Interchangeable Display Modules for
TPC-B200 Computing Box
TPC-B500 Computing Box
FPM-B700 Computing Box
|
System Dimensions |
Panel Mount |
||||
|
Display Type |
X1 |
Y1 |
Z1 |
X2 |
Y2 |
|
12" (XGA) |
311.8 |
238 |
27.1 |
303 |
229 |
|
15" (XGA) |
383.2 |
307.3 |
27.5 |
374.5 |
298.5 |
|
15.6" (HD) |
419.7 |
269 |
30. |
412.4 |
261.7 |
|
15.6" (FHD) |
419.7 |
269 |
30. |
412.4 |
261.7 |
|
17" (SXGA) |
410.4 |
343.4 |
28.3 |
401.3 |
334.8 |
|
18.5" (HD) |
488 |
309 |
30.3 |
479.3 |
300.3 |
|
21.5" (FHD) |
558.4 |
349.8 |
30.3 |
550.3 |
341.8 |
|
23.8" (FHD) |
595.9 |
374.1 |
30.3 |
587 |
365.3 |
Ordering Information
|
Panel Module P/N |
FPM-D12T-BE |
FPM-D15T-BE |
FPM-D17T-BE |
FPM-D15W-FBE |
FPM-D18W-BE |
FPM-D21W-BE |
FPM-D24W-BE |
|
Description |
12.1" XGA TFT LED LCD |
15" XGA TFT LED LCD |
17" SXGA TFT LED LCD |
15.6" FHD TFT LED LCD |
18.5" HD TFT LEDLCD |
21.5" FHD LED LCD |
23.8" FHD TFT LED LCD |
Note: Display modulescannotwork independently. A computing box (TPC-B200/500) or a monitor box (FPM-B700) is compulsory to operate the display module.
Configurable Rear Computing Box
|
Box Module P/N |
Description |
|
TPC-B200-J12AE |
Intel® Celeron® J3455 1.50 GHz processor with 4 GB DDR3L |
|
TPC-B200-E12AE |
Intel® Atom™ E3940, 1.60 GHz, processor with 4GB DDR3L |
|
TPC-B500-6C2AE |
Intel® Celeron® 3955U 2.00 GHz processor with 4 GB DDR4 |
|
TPC-B500-633AE |
Intel® Core™ i3-6100U 2.30 GHz processor with 8 GB DDR4 |
|
TPC-B500-673AE |
Intel® Core™ i7-6600U 2.60 GHz processor with 8 GB DDR4 |
|
TPC-B500-653AE |
Intel® Core™ i5-6300U 2.40 GHz processor with 8 GB DDR4 |
Configurable Rear Monitor Box
|
Box Module P/N |
Description |
|
FPM-B700-AE |
Monitor Rear Box |
Note:FPM-B700 does not include an I/O module. I/O module (FPM-M700) is Compulsory for video input and touch signal connection.
Configurable I/O Module for Monitor Box
|
I/O Module P/N |
Description |
|
FPM-M700-HDAE |
HDMI + USB Touch Module |
|
FPM-M700-DPAE |
Display + USB Touch Module |
|
FPM-M700-TRAE |
iLINK Tx + Rx Module |
|
FPM-M700-RXAE |
iLINK Rx Module |
Optional Accessories
|
Part Number |
Description |
|
98R35000000 |
USB NFC/RFID module ADT-006 (via CTOS) |
|
Wi-Fi |
Contact your sales rep. for front panel Wi-Fi module |
Please note: If some optional modules are offered with the system, additional system certificates may be required in certain regions/countries. Please contact Advantech for certificate compliance.
Online Downloadwww.advantech.com/products
