Industrial LoRaWAN Solution

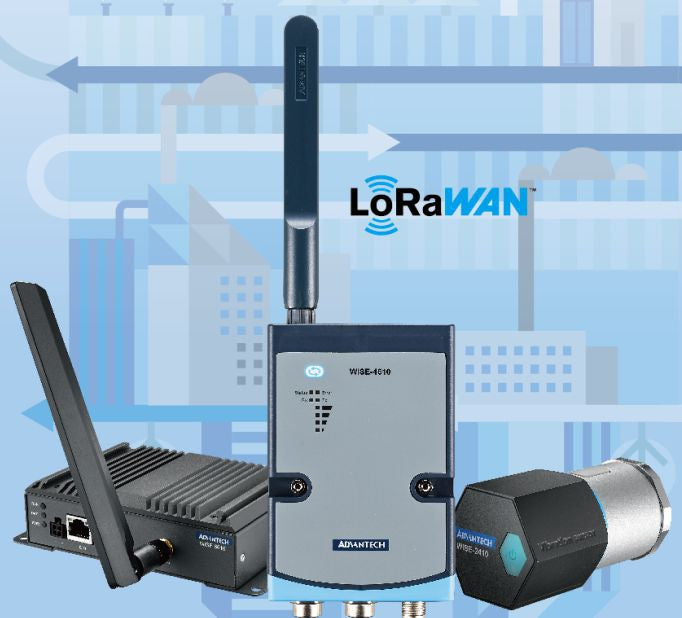

llot LoRaWAN sensor,1/0 module and gateway

• Cloud Integration Architecture  of LoRaWAN
• Factory Industrial IoT
• Smart Agriculture
• Selection Guide

ADANTECH  EnablinganIntelligent Planet

Cloud Integration Architecture of LoRaWAN

About LoRaWAN

Advantech LoRaWANsolutionsprovideadevice-to-cloud solution by simply sendingcollecteddata through the LoRa gateway to thecloud. With Edgelink inside the gateway, it also helpsuserssimply plug-and-playwithoutworryingaboutdataparsingprocesses.

WISE-2410 VibrationSensor

WISE-2410 is a LoRaWAN wireless vibration sensor integrated with ARM Cortex-M4 Processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. Battery life cycle is 2 years with IP66 enclosure.

• Built-in 3-axis accelerometerand temperaturesensor
• Computing total 8 vibration characteristicvalues onboard
• Compliant with ISO 10816
• IP66 with battery-powered, no wiring installationneeded
• Easy setting withuserfriendlyinterfaceson WISE Studio
• Support wide temperature-20~ 85 °C

WISE-6610 LoRaWAN Gateway

The WISE-6610plays a key role inconnectingsensor devices to the cloud. Withnetwork serviceproviders like "The Things Network" or WISE-PaaS EdgeLink,the WISE-6610utilizes data collectionto perform intelligent Internet of Things applications.

• LoRaWAN protocolforclosedandpublicsystemapplications
• Redundancy-enhanced functionsfor continuousdata transmission
• Enhancedmemoryforhosting customsoftware applications
• Low powerconsumption forsolarandbattery power applications
• EthernetandI/Ofor connecting awide array offieldassetswithDIN rail or wallmounting

• RED compliance

WISE-4610 I/O Module

WISE-4610 features a wireless sensor node based on LoRa network technologies targeting outdoor applications. Not only does it provide wireless communication coverage of 5 kilometers, it also has a long battery life due to the low power consumption of the LoRa network.

• Support LoRaWAN wireless frequency withexternal detach-able antenna
• Application-ready1/0combination with optional M12 connec- tors, IP65
• Widevoltagepower input with 10 ~ 50VDC
• Longer communicationrange
• Betterpenetrationthrough concrete andsteel

Factory Industrial loT

The point of IloT (Industrial Internet of Thing) is to deploy many types of sensors in a factory to collect vast quantities of information and send the corresponding data to the control center. Users can not only set the thresh- old for the system but also get in-time alerts to ensure safety control and maximize productivity. The primary benefit of using the Advantech WISE-4610 outdoor LoRa/LoRaWAN I/O node and WISE-2410 vibration sensor in a factory is that users do not need to worry about signal penetra- tion issues and/or tangled and complex wiring. Using vibration, humidity and temperature to monitor warehouses and storage environments through the control center offers an efficient alternative to the traditional one-by-one inspection. With WISE-2410 vibration sensor and other sensors paired with a WISE-4610 analog input VO board, alerts can be triggered when the pressure levels (water pressure, oil pressure, gas pressure...) are abnormal. This increases safety and improves production quality by controlling the material usage in the manufacturing process.

• Higher Penetration
• Lower Power Consumption
• No Wiring Needed
• Increase Productivity
• Enhance Factory Safety
• ControlFactoryResource Usage
• AutomaticAlerts

Smart Agriculture

The architecture of the Advantech LoRaWAN solution in smart agriculture connects WISE-2410 vibration sensor and other sensors with the WISE-4610 outdoor LoRa/LoRaWAN I/O node. They further send data through a WISE-610 LoRaWAN gateway to the cloud. In this use case, the application collects temperature, humidity, vibration and soil PH data to better understand the environmental situation. WISE-4610 is designed with an IP65 enclosure and M12 connectors to offer an optimal fit for outdoor applications. WISE-2410 is a LoRaWAN wireless vibration sensor integrated with ARM Cortex-M4 Processor, LoRa transceiver, 3-axis accelerometer and temperature sensor. The WISE-6610 is a high-performance LoRaWAN gateway with reliable connectivity options for industrial environments and LoRaWAN protocol support for building LoRaWAN private and public networks.

• Flexibility of deploymentwithout worrying about signalcoverage
• No monthly payment byusingLoRa network
• Solar powered or solarrechargeablebattery tomakethe device moreindependent
• Allowsfarmers tominimize resources such aswaterandfertilizers
• Upgradeddatacollection process helps with wirelessmonitoring and control
• Cost effective

WISE-2410 Series

(LoRaWAN Intelligent Vibration Sensor)

WISE-4610 Series

(Advanced Industrial LoRaWAN I/O Module)

IP 65 I/O Module

WISE-6610 Series

(LoRaWAN Gateway)
