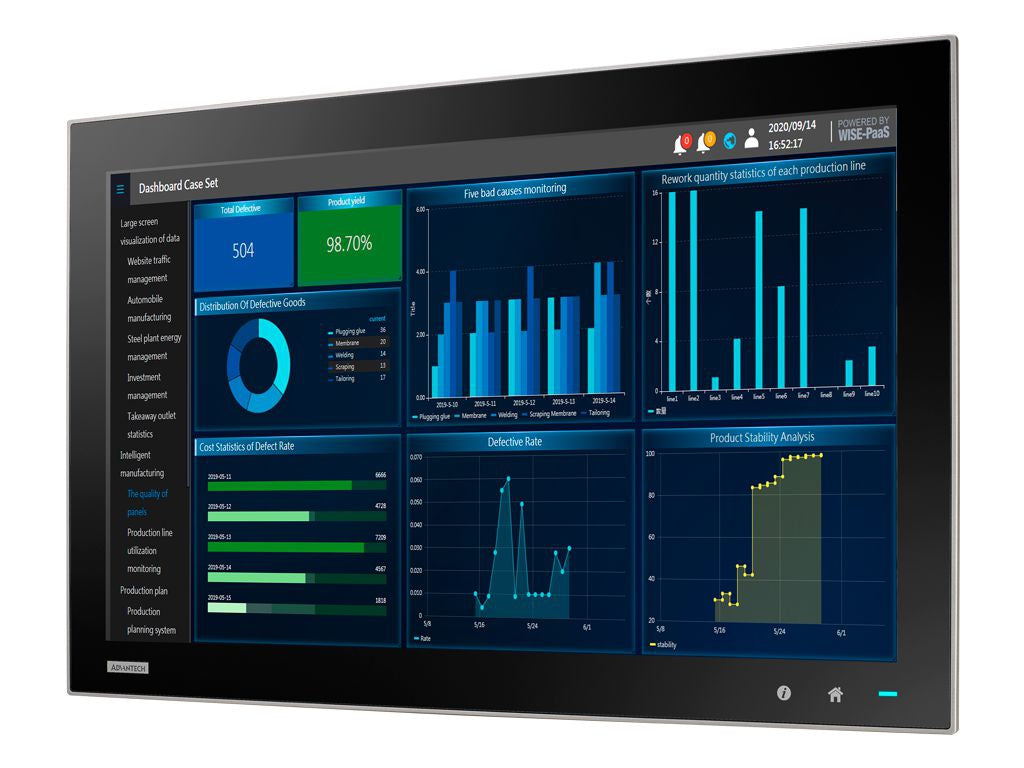

TPC-312 EHL
TPC-315 EHL
TPC-317 EHL
TPC-324W EHL

Features

Specifications

General

• BIOS: AMI UEFI
• Certification: BSMI, CCC, CE, FCC Class A, UL
• Cooling System: Fanless design
• Dimensions:
  • 12.1": 311.8 x 238 x 67 mm (12.28 x 9.37 x 2.64 in)
  • 15": 383.2 x 307.3 x 66.5 mm (15.09 x 12.10 x 2.62 in)
  • 23.8": 595.9 x 374.1 x 70 mm (23.46 x 14.73 x 2.76 in)
• Enclosure:
  • Front bezel: Die-cast aluminum alloy
  • Back housing: Die-cast aluminum alloy
• Mount Options: VESA mount, Desktop/wall/panel
• OS Support: Windows 10 Enterprise LTSC, Advantech Linux, Android
• Power Consumption:
  • 12.1": 69.8W (Typical)
  • 15": 59.73W (Typical)
  • 17": 65.38W (Typical)
  • 23.8": 79.29W (Typical)
• Power Input: 24 VDC ± 20%
• Watchdog Timer: 15 ~ 255 sec (system)
• Weight (Net):
  • 12.1": 4.2kg (9.26lbs)
  • 15": 5.15kg (11.35lbs)
  • 17": 6.1kg (13.45lbs)
  • 23.8": 9.2kg (20.28lbs)

System Hardware

• CPU: Intel® Elkhart Lake
  • Atom™ x6425E 2.00 GHz, quad-core
  • Celeron® J6412 2.00 GHz, quad-core
• Memory: 1 x SODIMM with 4 GB DDR4 SDRAM (up to 32 GB)
• LAN: 2 x Intel® I226; 2.5GbE
• Expansion Slots: 1 x Full-size mini PCIe (PCIE/USB2.0)
• Storage:
  • 1 x M.2 B key 2242/ 2280 (SATA/USB2.0)
  • 3042/ 3052 (USB3.0 for 5G LTE optional)
  • 1 x 2.5" SSD/HDD (SATA, Max. 7mm)
• I/O:
  • 1 x RS-232
  • 1 x RS-232/422/485
  • 3 x USB 3.2
  • 1 x USB 2.0
  • 1 x iDoor slot
  • 1 x Displayport (Video output)
  • 1 x Audio line out/mic in
  • 1 x Remote Power Button

LCD

• Display Type:
  • 12.1": XGA TFT LED LCD
  • 15": XGA TFT LED LCD
  • 17": SXGA TFT LED LCD
  • 23.8": FHD TFT LED LCD
• Display Size:
  • 12.1" (4:3)
  • 15" (4:3)
  • 17" (4:3)
  • 23.8" (16:9)
• Max. Resolution:
  • 12.1": 1024 x 768
  • 15": 1024 x 768
  • 17": 1280 x 1024
  • 23.8": 1920 x 1080
• Max. Colors: 16.2M (12.1", 15"), 16.7M (17", 23.8")
• Luminance:
  • 12.1": 600 cd/m²
  • 15": 300 cd/m²
  • 17": 300 cd/m²
  • 23.8": 350 cd/m²
• Viewing Angle (H/V°):
  • 12.1": 178°/178°
  • 15": 176°/176°
  • 17": 160°/140°
  • 23.8": 178°/178°
• Backlight Life:
  • 12.1": 50,000 hr
  • 15": 70,000 hrs
  • 17": 50,000 hrs
  • 23.8": 30,000 hrs
• Contrast Ratio:
  • 12.1": 1000:1
  • 15": 2000:1
  • 17": 800:1
  • 23.8": 1000:1
• Touchscreen:
  • Lifespan: 36 million touches at a single point
  • Light Transmission: Above 75%
  • Resolution Linearity:
    • 5-wire resistive: TPC-312/TPC-315/TPC-317
    • PCAP: TPC-324W

Key Features

• Processor: Intel® Elkhart Lake (EHL) Atom™ x6425E 2.00 GHz quad-core or Celeron® J6412 2.00 GHz quad-core processor with 4 GB DDR4 SDRAM
• Touchscreen: True-flat touchscreen with 5-wire resistive touch control (TPC-312, TPC-315, TPC-317) and PCAP (TPC-324W)
• Durability: IP66-rated front panel, wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
• Mounting: Built-in 100 x 100 VESA mount, desktop, wall, or panel options
• Expandability: iDoor technology support for additional I/O, digital I/O, fieldbus protocols, MRAM, and 5G/GPS/Wi-Fi capabilities
• Cooling: Fanless design with aluminum alloy front bezel for enhanced heat dissipation
• Applications: Suitable for industrial automation and other rugged environments

This industrial panel PC series combines high-performance processing with a durable design to meet the needs of automation applications.
