NEW PRODUCT NOTICE

Workstation Arm

• Monitor mounting compatible with the Video Electronics Standards Association (VESA) MIS-D mounting
patterns of 75mm and 100mm; holds monitors between 4.40 to 17.64 pounds (2.0 to 8.0 kg); adjustable
viewing angle and height; hardware to mount to T-slot included
• Rotates 360 degree mounting flange with 1.575” (40.00mm)
spacing between holes
• Fold up keyboard holder for weights up to 5.50 pounds (2.5 kg)
with left or right pull out shelf for mouse

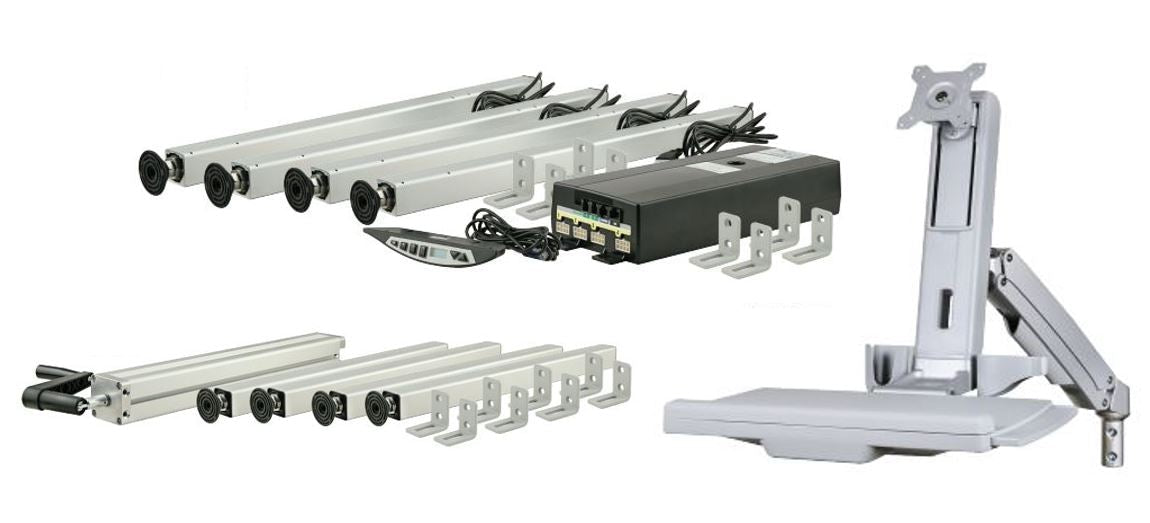

Electric Lift System

• Kit ships in one box weighing 33 lbs and
measuring 30” x 10” x 7” in size
See the lift system
in action. Scan the
QR code to see a
demonstration

• Included in kit: control box (1), memory control
switch (1), linear leg units with 6.5’ cables (4),
9.5’ power cable (1), rubber leveling feet (4),
mounting brackets (8), M5 x 8mm bolts (16)

Material Specifications
• Works with 15, 30, 40, 45 series profiles
• Made up of primarily aluminum, plastic and stainless steel
• Max load: 600 kg (1320lbs) – includes weight of frame
• Max stroke: 300mm (11.811”)
• Lifting speed: 9mm per second (.354”/sec)
• Retracted Height of legs: 599mm (23.583”)
• Extended Height of legs: 899mm (35.394”)
• Includes 3 programmable height settings, and a digital
readout of current height

Hand Crank Lift System

• Kit ships in one box weighing 29 lbs and
measuring 35” x 12” x 9” in size
See the lift system
in action. Scan the
QR code to see a
demonstration

• Included in kit: hydraulic pump with hand crank
(1), linear leg units (4), rubber leveling feet (4),
mounting brackets (8), M5 x 8mm bolts (16)

Material Specifications
• Works with 15, 30, 40, 45 series profiles
• Made up of primarily aluminum, plastic and stainless steel
• Max load: 450 kg (992 lbs) – includes weight of frame
• Max stroke: 300mm (11.811”)
• Lifting speed: 5mm (.197”) per hand crank turn
• Retracted height of legs: 445mm (17.520”)
• Extended height of legs: 745mm (29.331”)
