80/20
BUILD YOUR IDEA
NEW PRODUCTS 2024
Mobile Automation Cart

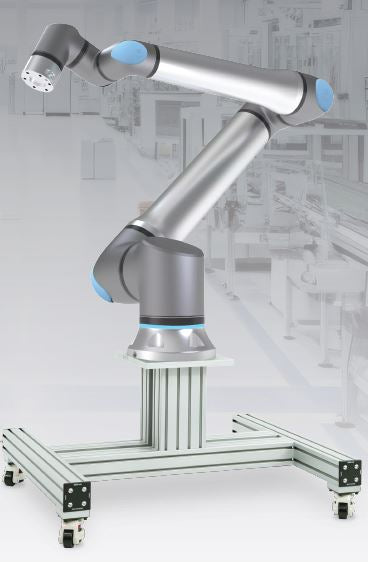

Robot Mounting Plate Sold Separately
Product Details
• Predesigned heavy-duty cart, 930 lbs capacity
• Dimensions: 63.00” (65.18” with handle) length; 31.50” width; 36.75” height
• 40mm T-slot mounting surface for easy tool plate adjustments (compatible with 80/20 robot plates) and open ended for T-nut install
• Swivel casters with lock
• Removable doors with secure latch
• Smooth external framing for sleek look
• Push/pull handles for easy movement
• Open slot for running electrical/pneumatic cables
• Ships as kit in standard 80/20 packaging
• Optional: 80/20 Assembly $540.00
Profile 40-1620
| Quote Number | Series | Length | Width | Height | Finish | T-Slot | Load Capacity | Weight | Discount | List Price Total |
| Q-101713 | 40 | 63.000” | 31.500” | 36.750” | Silver Anodize | 40mm | 930 lbs | 262 lbs | Standard | $3,884.83 |
Heavy Duty Workstation Kit with Flow Rack
Product Details
• Heavy duty adjustable workstation, 750 lbs load capacity
• Dimensions: 55.20” length x 48.50” width x 72.50” height
• Integrated four-leg lift system with keypad, adjustable 16” height
• Large work surface: 55.20” x 20.00” x 0.75” phenolic resin
• 44” task light with high/low switch and power cord
• Electrical power strip, 110V, 8 plugs
• Portable flow rack with locking casters that docks/undocks to sync with workstation: 48.00” x 24.00” x 67.90”
• Three level flow racks with up to 9 adjustable stations
• Ships as kit in standard 80/20 packaging
• Optional: 80/20 Assembly $540.00
| Quote Number | Series | Length | Width | Height | Finish | Load Capacity | Weight | List Price Discount Breakdown | List Price Total | ||
| Q-102130 | 40 P | 55.200” | 48.500” | 72.500” | Silver Anodize | 750 lbs | 442 lbs | Lift System $468.82 (20% Discount) |
Pipe & Joint $2,620.00 (23% Discount) |
All Other Products $3,970.08 (Standard Discount) |
$7,058.90 |
Standard Workstation Kit
Product Details
• Heavy-duty workstation, 500 lbs load capacity
• Dimensions: 48.00” length; 30.00” width; 60.70” height
• Integrated two-leg lift system with keypad, adjustable 16” height
• Large work surface 48.00” x 30.00” x 0.50” Black HDPE material
• 47” white rope light for T-slot mounting, includes dimmer/switch and power cord (1140 Lumens)
• Electrical power strip, 110V, 8 plugs
• Ships as kit in standard 80/20 packaging
• Optional: 80/20 Assembly $540.00
| Quote Number | Series | Length | Width | Height | Finish | Load Capacity | Weight | List Price Discount Breakdown | List Price Total | |
| Q-102129 | 15 | 48.000” | 30.000” | 60.700” | Silver Anodize | 500 lbs | 163 lbs | Lift System $1,550.00 (20% Discount) |
All Other Products $1,901.33 (Standard Discount) |
$3,456.33 |
For Distribution Partners Only
Effective Date: 8-13-2024
