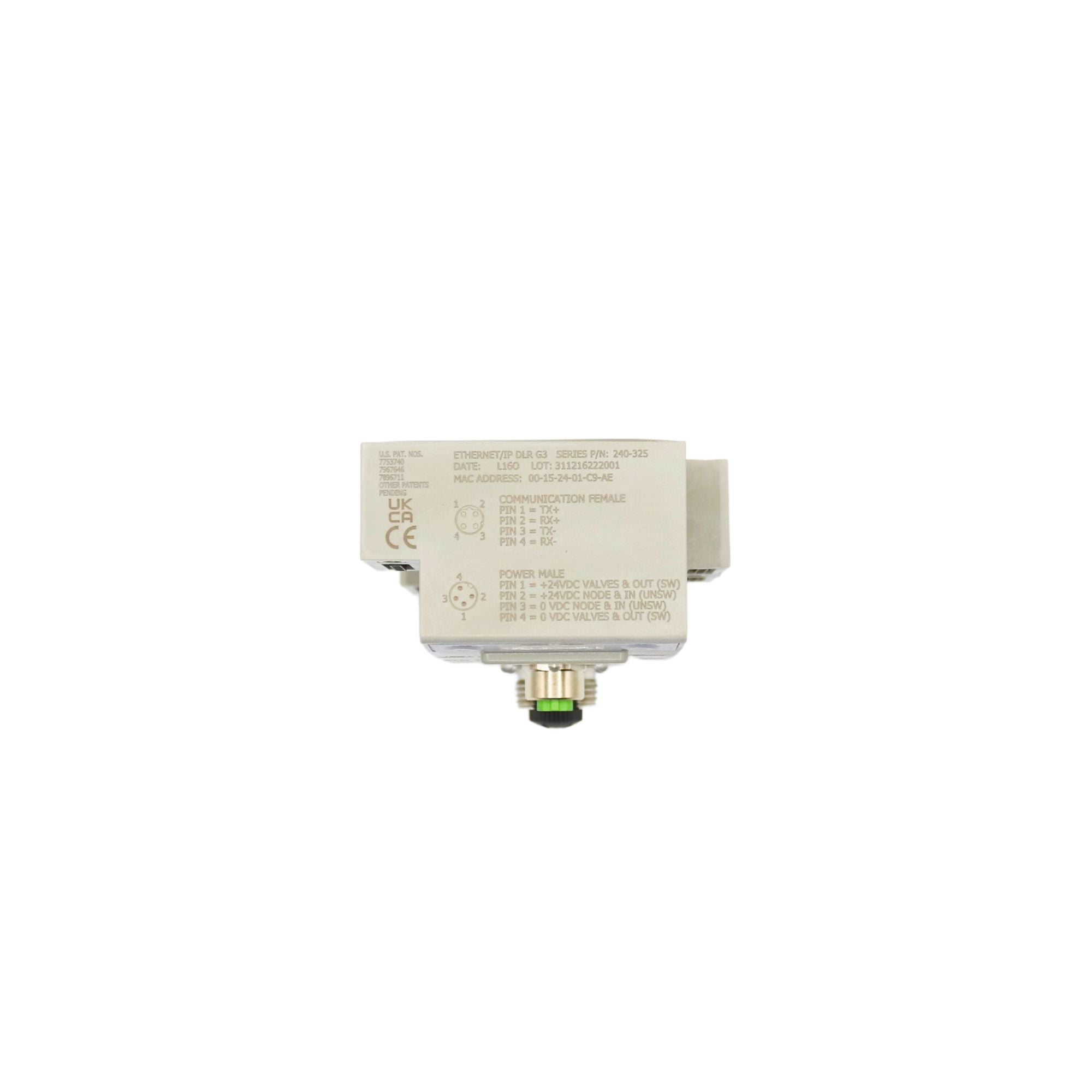

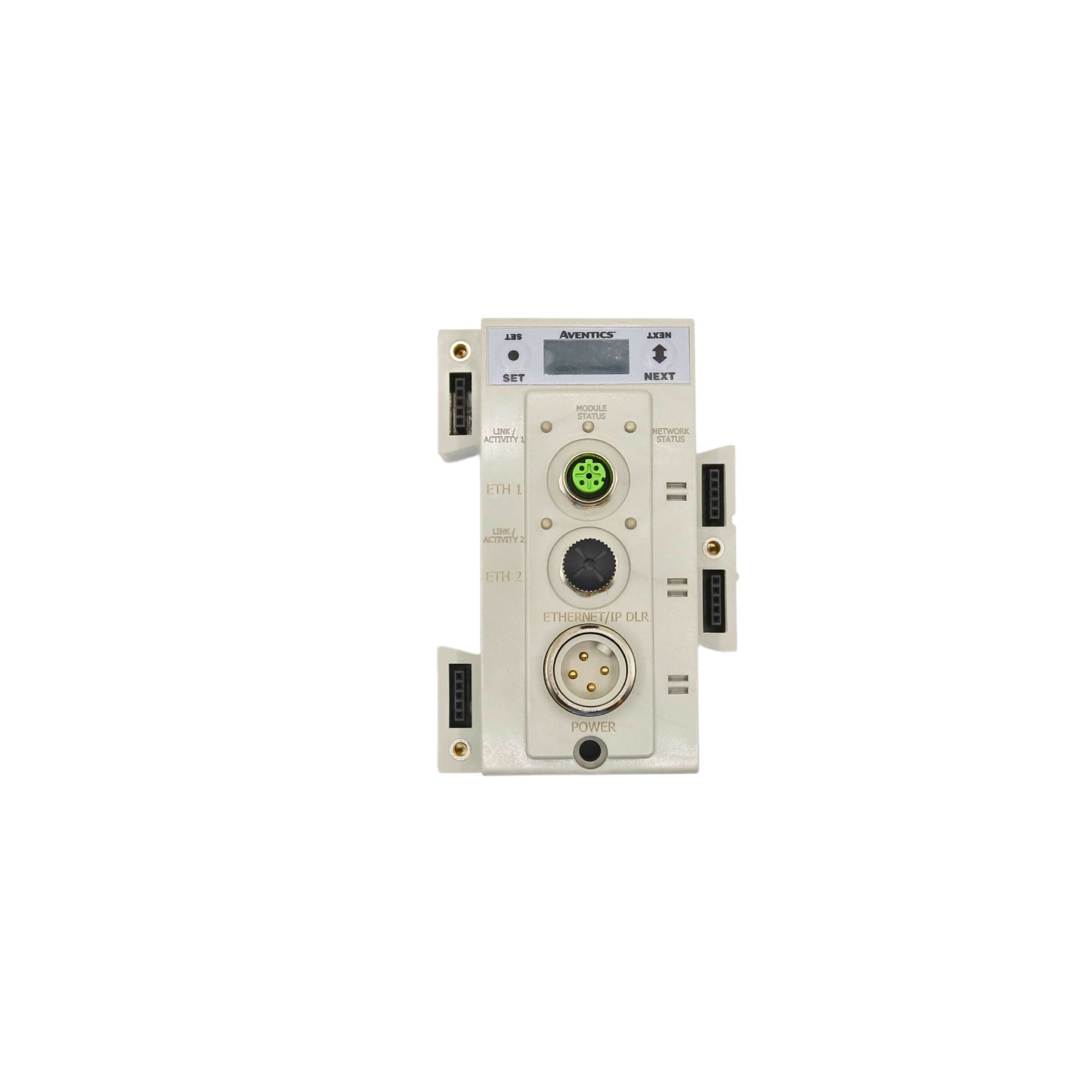

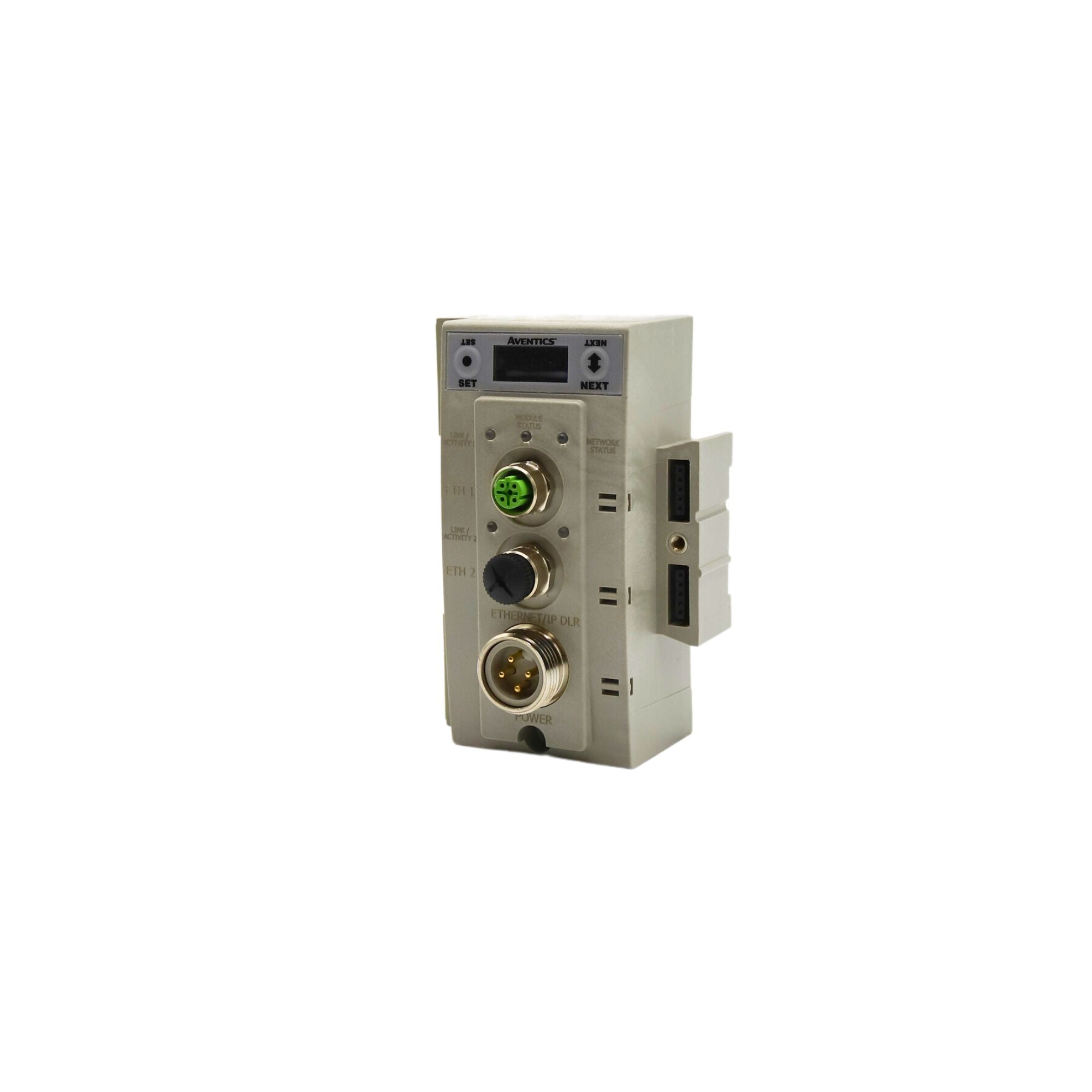

Numatics | Aventics Manifold part G3 Ethercat/IP DLR node | 240-325

Mfr. Part #: 240-325

4 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 139575

  • EtherNet/IP™ used throughout the world to network millions of PCs has now evolved into a viable industry network. EtherNet/IP™ is an open architecture high-level communication network that meets the demands of today’s industrial applications requiring high-speed (10/100 Mbit/s), high-throughput and flexibility. Additionally, EtherNet/IP™ technology can integrate an on-board web server, which can make the node readily accessible to any standard web browser for configuration, testing and even retrieval of technical documentation.

    Numatics’ G3 EtherNet/IP™ DLR (Device Level Ring) node with integrated display has an embedded switch which allows the unit to be used in simplified networks with linear topology configurations (daisy chain). This technology alleviates the need for an external Ethernet switch device in a single subnet configuration. Additionally, the DLR compatibility allows the node to be used in a fault tolerant “ring” network, when using appropriate EtherNet/ IP™ DLR scanners. DLR configuration allows communication recovery from a single point failure on the network ring (e.g. failed network connection or cable).

    Numatics G3 EtherNet/IP™ nodes are capable of addressing combinations of up to 1200 outputs and 1200 inputs. The G3 EtherNet/IP™ nodes have been tested and approved for conformance by the ODVA.

  • Electrical Data Voltage Current
    Node Power at Max. Brightness 24 VDC +/- 10% 0.0953 Amps
    Valves & Discrete I/O 24 VDC +/- 10% 8 Amps Maximum
    Power Connector Single key 5 pin 7/8" MINI type (male)
    Communication Connector Two D-coded 4 Pin M12 type (Female)
    LEDs Module Status, Network Status and Activity/Link
    Weight 227g / 8 oz
    Operating Data
    Temperature Range (ambient)  -23C - +46C (-10F - +115F)
    Humidity 95% relative humidity, non-condesing
    Vibration/Shock IEC 60068-2-27, IEC60068-2-6
    Moisture Protection IP65 (with appropriate assembly and termination)



    Configuration Data
    Graphic Display Display used for setting IP Address, Subnet Mask, Fault/Idle Actions, and all other system settings
    ARM (Auto Recovery Module) Optional module that contains automatic recovery of system setting in the event of total or partial system failure
    Maximum Valve-Solenoid Outputs 32
    Maximum Addressable I/O Points Various combinations of 1200 outputs and 1200 inputs
    Network Data
    Supported Baud Rates 10 Mbit / 100 Mbit
    Bus Connector Two D-coded 4 Pin M12 type (Female)
    Diagnostics Power, short, open load conditions and module health and configuration are monitored
    Special Features Embedded two port switch, Device Level Ring (DLR) compatibility, Linear network topology, QuickConnect™ capability, fail-safe device settings, integrated web server, HTTP, TFTP, UNICAST
