Mfr. Part #: 240-300
ID #: 142685

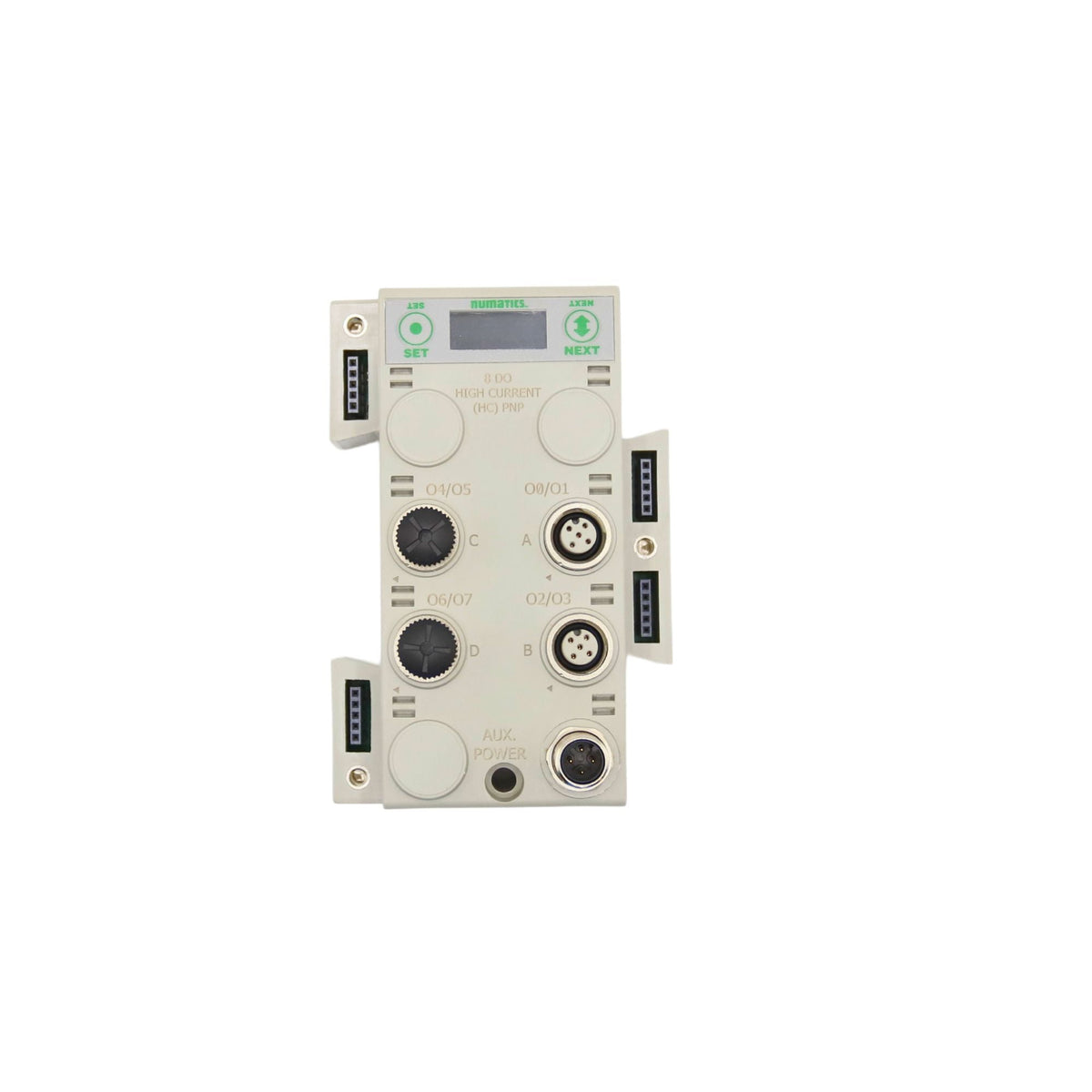

Numatics / Aventics 240-300 G3 Series Digital I/O Output Module, 8 PNP High Current outputs. This module is rated IP65 (with appropriate assembly and termination) and has M12 4 Pin Male connection. Resolution is 16 bit.
This I/O module has short circuit protection integrated.
I/O Modules | |
Digital I/O 5 Pin M12 Modules | |
| Descriptions | Part Number |
| Inputs | |
| 8 PNP Inputs | 240-206 |
| 8 NPN Inputs | 240-210 |
| 16 PNP Inputs | 240-205 |
| 16 NPN Inputs | 240-209 |
| Outputs | |
| 8 PNP Outputs | 240-208 |
| 8 PNP High Current Outputs | 240-300 |
| 16 PNP Outputs | 240-207 |
| Inputs & Outputs | |
| 8 PNP Inputs & 8 PNP Outputs | 240-211 |
| Operating Data | ||
| Temperature Range (ambient) | -23C - +46C (-10F - +115F) | |
| Humidity | 95% relative humidity, non-condensing | |
| Vibration/Shock | IEC 60068-2-27, IEC60068-2-6 | |
| Connector | M12 4 Pin Female, Speedcon (Compatible with 5 Pin) | |
| Ingress Protection | IP65 (with appropriate assembly and termination) | |
| Wieght | I/O Module-Analog | I/O Module-Digital |
| 244 g/ 8.6 oz | 274 g/ 9.7 oz | |
| Resolution | 16 Bit | |
