Mfr. Part #: P580AEEP1010A00
ID #: 139868

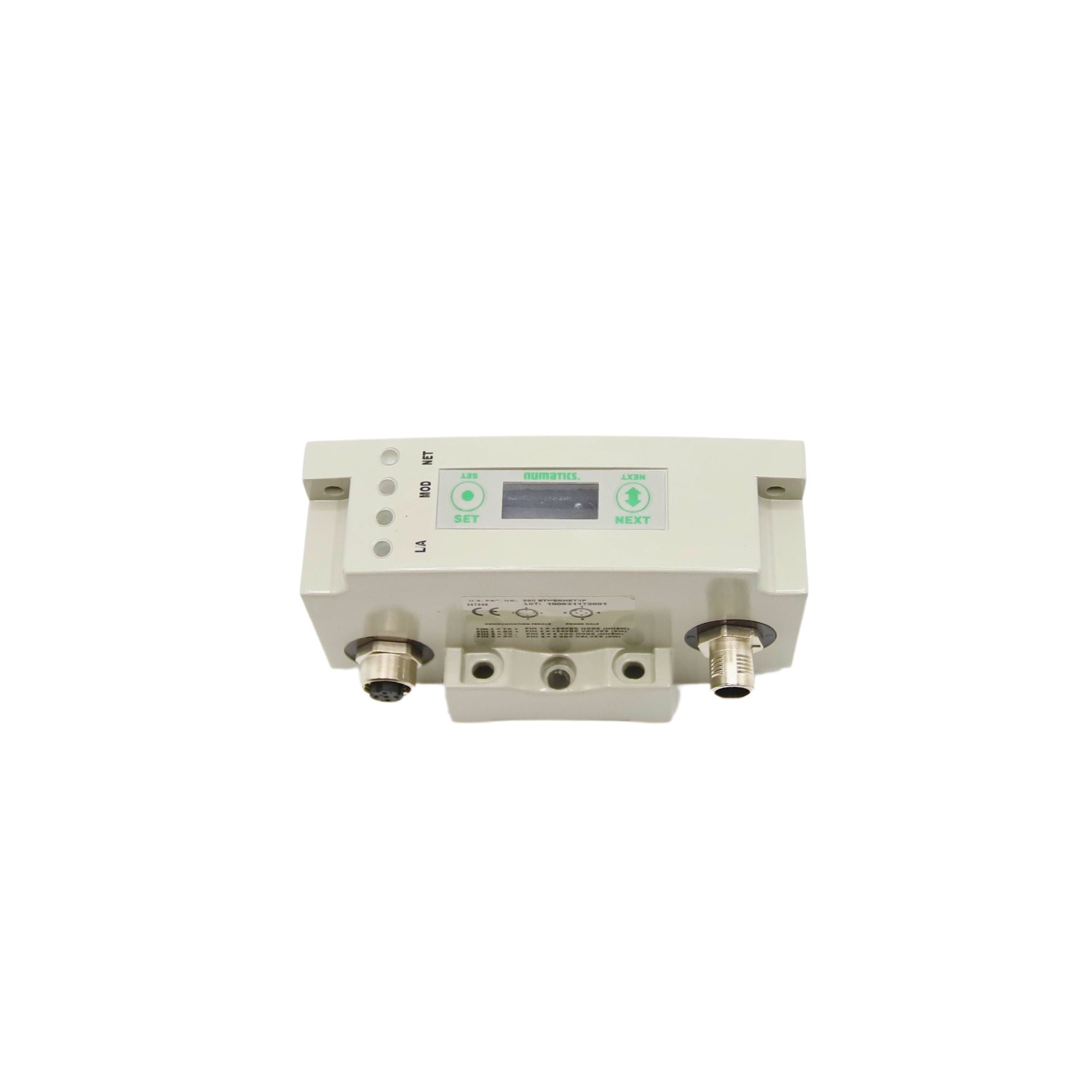

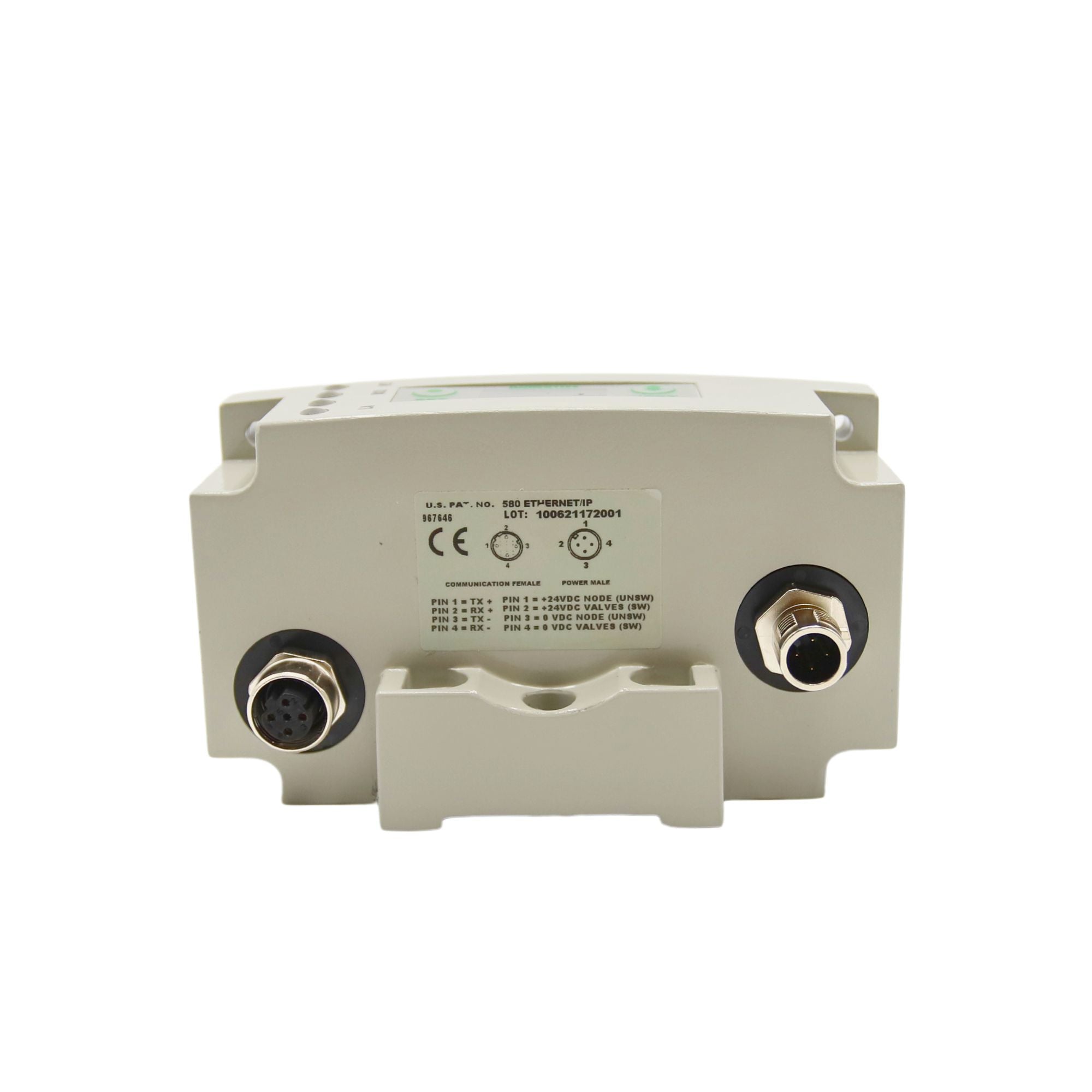

Aventics Manifold part 580 Ethernet I/P
| Electical Data | Voltage | Current |
| Node Power | 24 VDC +/- 10% | 0.09 Amps |
| Valves | 24 VDC +/- 10% | 4 Amps Maximum |
| Power Connector | A-Coded 4 Pin M12 (Male) | |
| Communication Connector | D-Coded 4 Pin M12 (Female) | |
| LEDs | Module Status, Network Status and Activity/Link | |
| Weight | 336g/10.8oz | |
| Operating Data | ||
| Temperature Range (ambient) | -23 ºC to 46 ºC (-10 ºF to 115 ºF) | |
| Humidfy | 95% relative humidity, non-condensing | |
| Vibration/Shock | IEC 60068-2-27, IEC60068-2-6 | |
| Moisture Protection | IP65 Certified | |
| Configuration Data | ||
| Graphic Display | Display used for setting IP Address, Subnet mask, Fault/Idle Actions, DHCP/BootP and all other system settings settings | |
| Maximum Valve-Solenoid Outputs | 32 | |
| Network Data | ||
| Supported Baud Rates | 10 Mbit/100 Mbit | |
| Bus Connector | D-Coded 4 pin M12 (female) | |
| Diagnostics | Power, short, open load conditions | |
| Special Features | Integrated web server, fail-safe device settings, HTTP, FTP, and UNICAST (for EtherNet/IP) | |
