Mfr. Part #: CBA2P12P25UL
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 179438

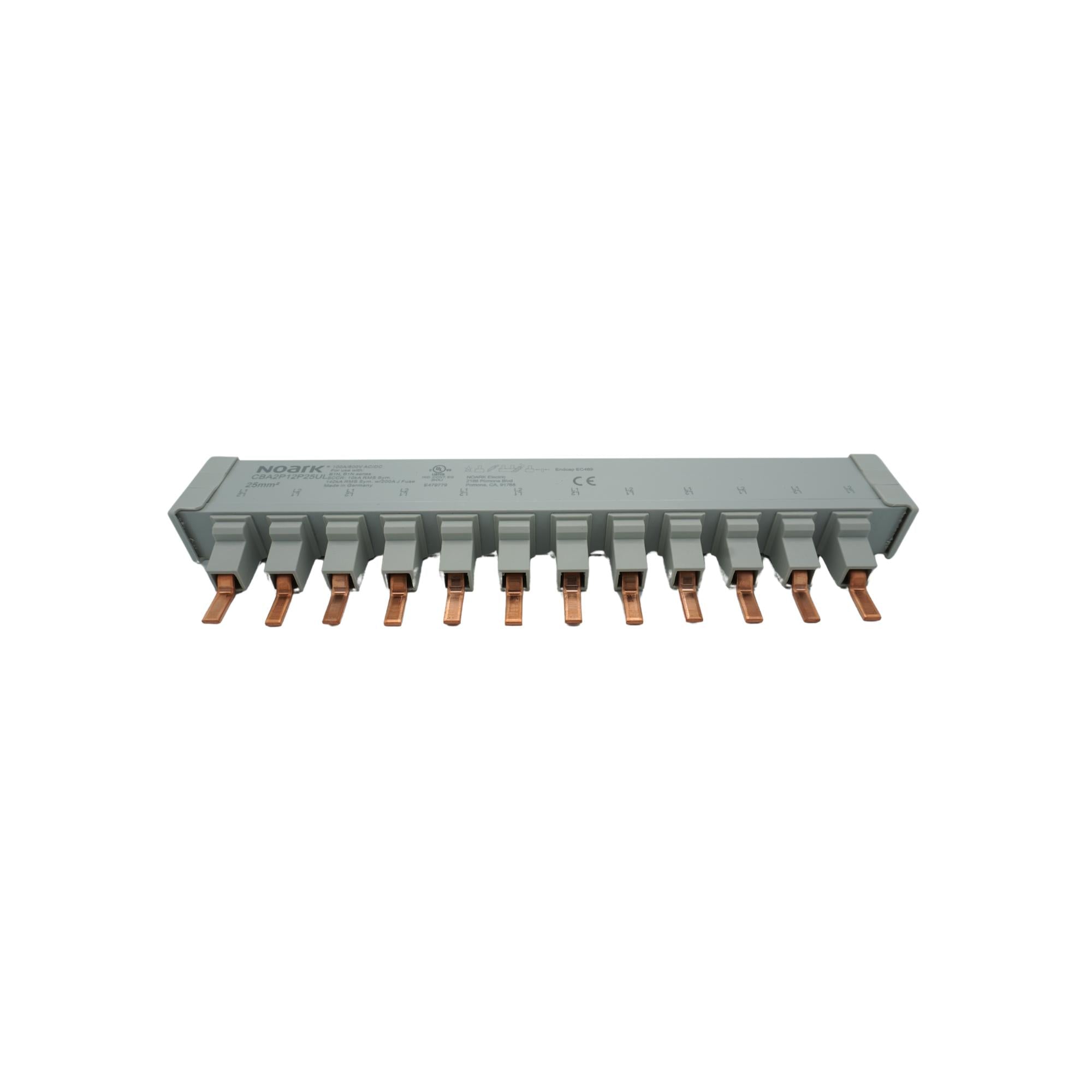

NOARK CBA2P12P25UL 2-pole 12-pin UL489 comb bus bar, 100A rated, DIN-rail mount for reliable circuit protection and distribution.
| CBA2P12P25UL Specifications | |
|---|---|
| Product Type | Comb Bus Bar (UL 489 Listed) |
| Manufacturer | NOARK |
| Poles | 2 |
| Pins | 12 |
| Rated Current | 100 A |
| Cross-sectional Area | 25 mm² |
| Standards Compliance | UL 489, CSA C22.2 No.5-16, IEC 60947-2 |
| Interrupting Capacity | 10 kA @ 480Y/277 VAC, 10 kA @ 125 VDC |
| Mounting | Standard 35 mm DIN-rail |
| Features | Trip-free design Captive screws Toggle position indicator (Red/Green) Lockable in ON or OFF position Field-installable shunt trip & auxiliary switch Provisions for ring tongue terminals |
| Typical Applications | Branch circuit protection Motor control circuits Convenience receptacle circuits HVACR equipment PLC I/O points Power supplies & conditioners Control instrumentation, relays, UPS systems |
