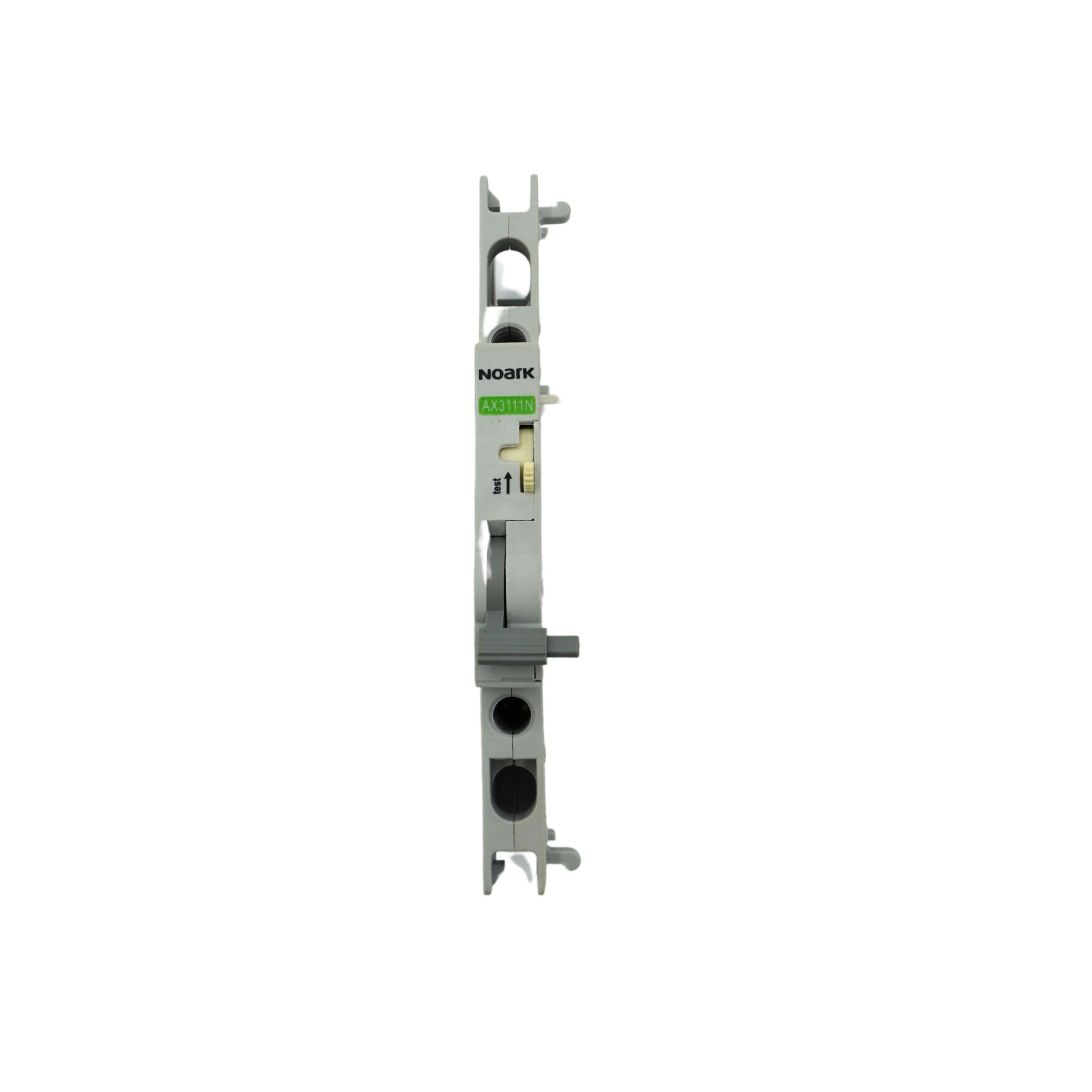

Mfr. Part #: AX3111N
ID #: 186370
Auxiliary (AX) ON/OFF contact/switch UL489 - 1001200 - 1NO+1NC
| Specification | Details |
|---|---|
| Primary Brand | NOARK |
| Main Function | Auxiliary contact |
| Product Series / Family Name | Electrical protection > MCBs accessories > UL489 > Aux. contacts |
| Functions | Auxiliary ON/OFF contact / switch block |
| Design | For UL489 devices |
| Rated Current | 0.5A (250Vdc), 1A (125Vdc), 2A (48Vdc), 3A (480Vac / 277Vac), 6A (240Vac / 24Vdc) |
| Cross-section | For #18AWG...#14AWG / 0.5mm²...4mm² Cu wires at 140/167°F / 60/75°C |
| Mounting Mode | DIN rail |
| Normally Open (NO) Auxiliary Contacts | 1 NO contact |
| Normally Closed (NC) Auxiliary Contacts | 1 NC contact |
| Contacts Type | 1 NO + 1 NC (1 Normally Open + 1 Normally Closed) aux. contacts |
| Dimensions | H103mm x W8.8mm x D75.5mm (H4.06"" x W0.35"" x D2.97"") |
| Reference Stripping Length | 7mm / 0.3"" |
| Net Width | 35 mm |
| Order Code / Manufacturer SKU | AX3111N, 1001200 |
| Manufacturer Product Status | Commercialized |
| Equivalent to | 1001200 |
| Compliant with Standard(s) | UL489 (file number E355392) |
| Tightening Torque | 9lb.in / 1 N.m |
