Mencom | Ethernet Plug, 4 Pole, Male Right Angle, M12, PG 9 | MDE45-4MP-FW09-R

Name: Mencom | Ethernet Plug, 4 Pole, Male Right Angle, M12, PG 9 | MDE45-4MP-FW09-R
Brand: Mencom Corporation
SKU: MDE45-4MP-FW09-R
Price: 13.43 USD
Availability: InStock

Mfr. Part #: MDE45-4MP-FW09-R

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 152730

Description
Features
Specifications
Resources

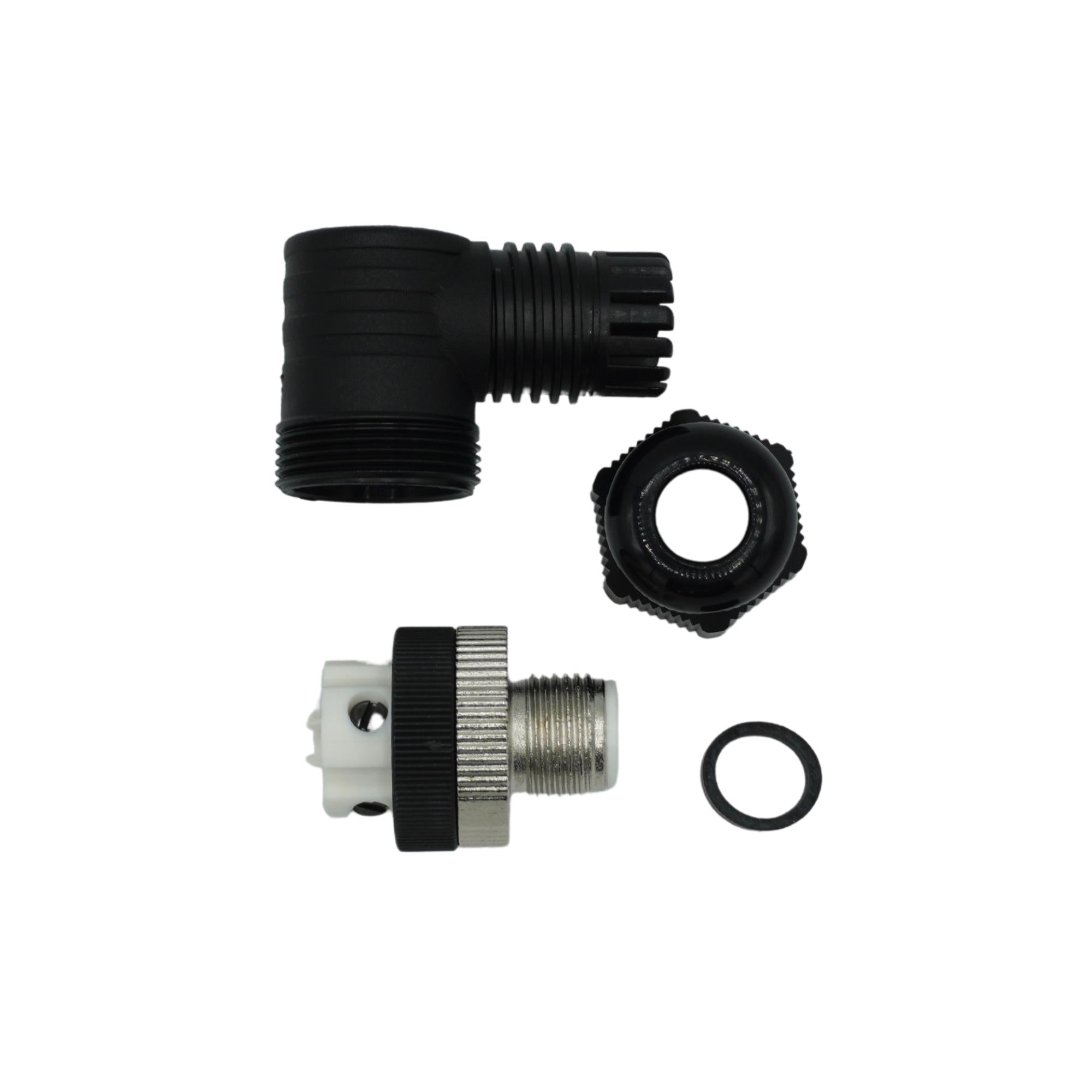

Mencom MDE45-4MP-FW09-R M12 D-coded right-angle field-wireable connector, IP67-rated, ideal for industrial Ethernet and automation applications.
Key Features:
- 4-pin M12 D-coded male connector with right-angle orientation
- Field-wireable design for easy on-site assembly
- Suitable for Ethernet applications in industrial environments
- Rated for up to 250V and 4A current
- IP67-rated for protection against dust and water ingress
- Operating temperature range from -25°C to 85°C (-13°F to 185°F)
- Compatible with cables having an outer diameter of 4–8mm
- Gold-plated copper alloy contacts for reliable signal transmission
- Polyamide (PA) housing for durability and chemical resistance

Typical Applications:
- Industrial Ethernet networks requiring robust and reliable connections
- Automation and control systems in manufacturing environments
- Applications in harsh conditions with exposure to dust and moisture
- On-site installations where pre-assembled connectors are not feasible
- Systems requiring quick and flexible connector solutions

MDE45-4MP-FW09-R Specifications
Model	MDE45-4MP-FW09-R
Product Type	M12 D-Coded Male Right-Angle Ethernet Field-Wireable Connector
Manufacturer	Mencom
Pin Count	4-pin
Orientation	Right-Angle
Voltage Rating	Up to 250 V
Current Rating	4 A
Protection Rating	IP67 (dust and water resistant)
Operating Temperature	-25°C to 85°C (-13°F to 185°F)
Cable Compatibility	Outer diameter 4–8 mm
Contacts	Gold-plated copper alloy for reliable signal transmission
Housing Material	Polyamide (PA) for durability and chemical resistance
Typical Applications	Industrial Ethernet, automation systems, harsh environments, on-site installations, flexible connector solutions
