I51AE255C10V01001S
ID #: 183861

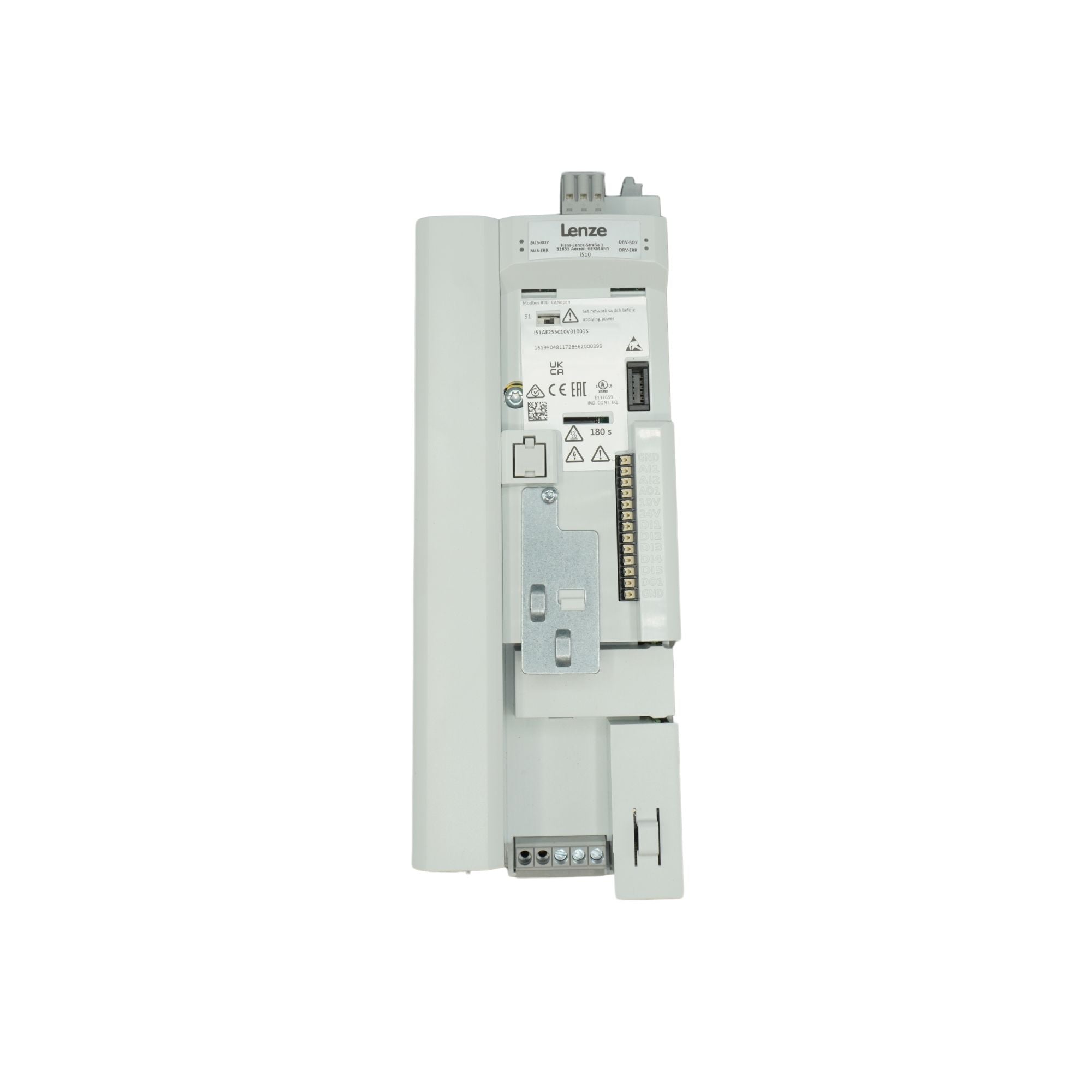

The i510 cabinet frequency inverter is a compact control cabinet device with scalable functionality. It is versatile, reliable and easy to use.
The requirements of the Ecodesign Directive, Standard EN 50598-2, are met.
Application areas: Conveyor drives, traveling drives, pumps, fans, agitators, ...
| Product group | Frequency inverters |
| Product range | i510-C |
| Application area | Simple applications for frequency inverters |
| Supply | Mains |
| Rated power | 7.5 HP |
| "Light Duty” operation possible (increased continuous power) | yes |
| Condition for "Light Duty" operation | Max. switching frequency 4 kHz Max. ambient temperature 40 °C |
| Output voltage | 3 AC 0 - 230/240 V |
| Max. output frequency | 599 Hz |
| Integrated RFI filter | no |
| Brake chopper | not intended for this product range |
| Brake resistor | not intended for this product range |
| Maintenance switch | not intended for this product range |
| Number of drive axes in the inverter | 1 |
| Mains | 3 AC 230/240 V |
| Rated output current | 23 A |
| Control electronics equipment | Relay |
| 24 V supply of control electronics | not intended for this product range |
| Resolver input | no |
| Resolver input, integration | not intended for this product range |
| Encoder input | no |
| Encoder input, integration | not intended for this product range |
| Motor temperature input | not intended for this product range |
| Operation/diagnostics | wired, e.g. with PC wireless, e.g. with smartphone Keypad |
| Keypad (operation/diagnostics) | no |
| Wireless operation/diagnostics, e.g. with smartphone | possible, a WLAN module is required in addition |
| Wired operation/diagnostics, e.g. with PC | possible, a USB diagnostic module is required in addition |
| Memory module | Saves software-based settings of the inverter The inverter’s scope of supply includes one memory module The inverter cannot be operated without the memory module |
| Factory default mains setting | 60 Hz |
| Number of digital inputs | 5 |
| Number of analog inputs | 2 |
| Number of digital outputs | 1 |
| Number of analog outputs | 1 |
| Number of relays | 1 |
| Fieldbus | CANopen/Modbus RTU |
| Fieldbus, integration | firmly integrated, CANopen and Modbus RTU can be switched |
| Mounting location | in the control cabinet |
| Plug-in connection | Fieldbus Relay |
| Height | 9.84 " |
| Width | 3.54 " |
| Depth | 5.12 " |
| Weight | 4.6 lb |
| Degree of protection (EN 60529) | IP20 |
| Degree of protection (UL 50) | Type 1 |
| Approvals | CE EAC UL for USA and Canada RoHS IE2 acc. to EN 50598-2 |
