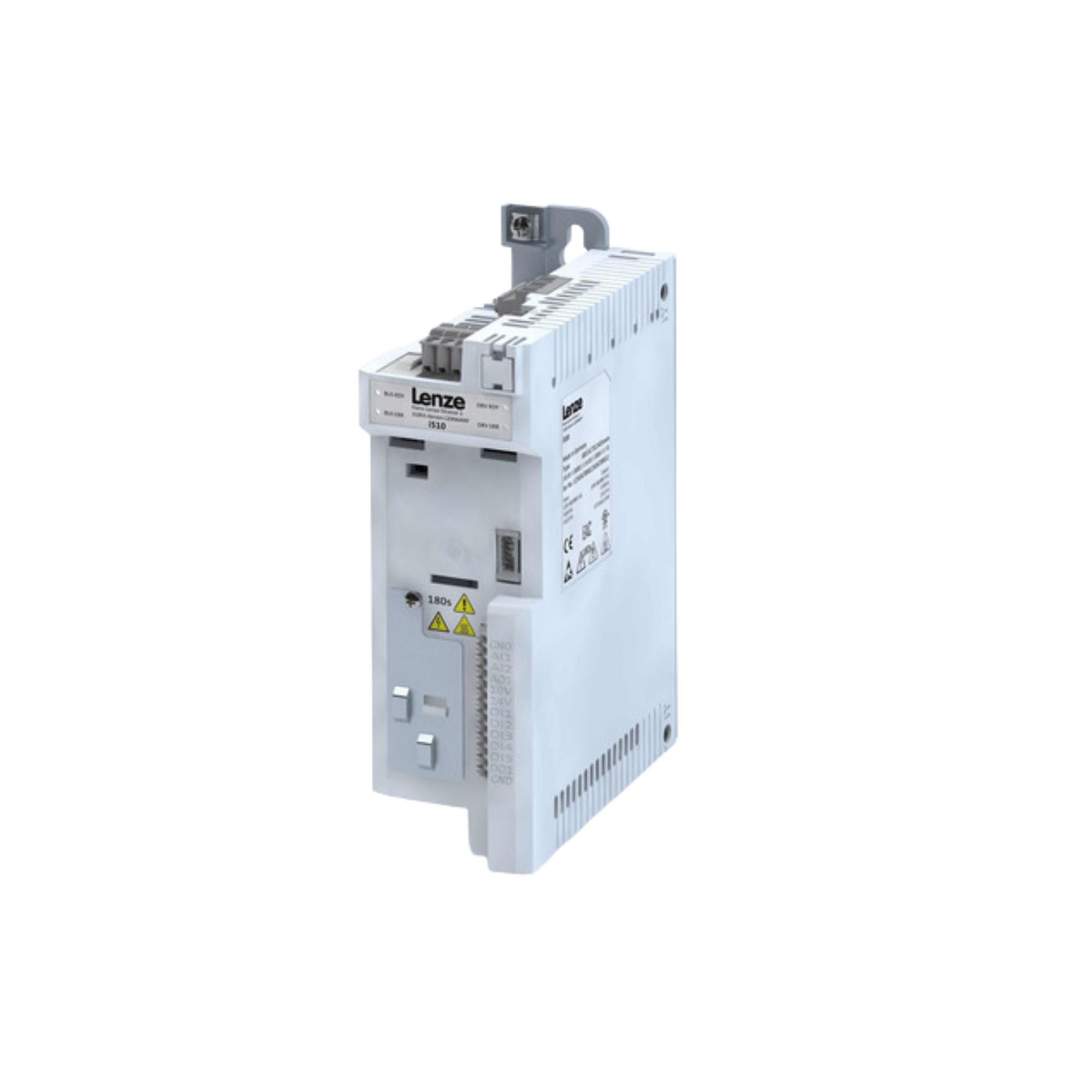

Lenze | i510 Frequency Inverter | I51AE240C10V01001S

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

Specifications

Primary brand
Lenze
Secondary brand
AC Tech
Main function
Variable Speed/Frequency Drive (VSD/VFD) / Inverter
Product series / family name
i510 series
Network frequency
(input) 45-65 Hz
(output) 0-599 Hz
Functions
Variable Speed/Frequency Drive (VSD/VFD) / Compact inverter
DC-injection braking
Brake management for brake control
S-ramps for smooth acceleration and deceleration
Flying restart circuit
PID controller
Design
basic I.O.
conformal coating
Supply voltage (AC)
230Vac / 240Vac
Type of network
3-phase (3P / 3AC)
Rated current
16.5A (heavy-duty; 230-240Vac)
Rated active power (kW)
5.5kW (light-duty; 230-240Vac)
4kW (heavy-duty; 230-240Vac)
Rated power (HP)
7-1/2HP (light-duty; 230-240Vac)
5HP (heavy-duty; 230-240Vac)
Protection functions
Overvoltage category
Leakage current
Earth fault resistance
Overtemperature of motor
Communication protocol
CANopen
Modbus RTU
Mounting mode
for control cabinet or surface/wall mounting
Digital inputs
1 x digital input (PNP/NPN logic) (DI1)
1 x digital input (PNP/NPN logic) (DI2)
1 x digital input (PNP/NPN logic) (DI3 can be optionally used as frequency or encoder input)
1 x digital input (PNP/NPN logic) (DI4 can be optionally used as frequency or encoder input)
1 x digital input (PNP/NPN logic) (DI5)
Digital outputs
1 x digital output (max. 100mA) (DO1)
Analog inputs
2 x analog inputs (0-10Vdc; 0-20mA or 4-20mA) (AI1 and AI2 can be optionally used as voltage input or current input)
Analog outputs
1 x analog output (0-10Vdc; 0-20mA or 4-20mA) (AO1 can be optionally used as voltage output or current output)
Degree of protection
IP20
Dimensions
H250mm x W90mm x D130mm
Ambient air temperature for operation
(at a switching frequency of 2kHz or 4kHz) max. ambient temperature 45 °C
(at a switching frequency of 8kHz or 16kHz) max. ambient temperature 40 °C
Application type
Pumps and fans
Conveying and travelling drives
Forming and tool drives
Order code / Manufacturer SKU
I51AE240C10V01001S
Manufacturer product status
Commercialized
Compliant with standard(s)
CE conformities 2014/30/EU; 2014/35/EU
EAC conformities TP TC 020/2011; TP TR 004/2011
RoHS conformity 2011/65/EU
UL 61800-5-1 approval File No. E132659 (CSA 22.2 No.274)
EN 61800-5-1

Benefits
The i510 cabinet frequency inverter is a compact control cabinet device with scalable functionality
It is versatile; reliable and easy to use
The requirements of the Ecodesign Directive are met
Space saving design 60mm wide (up to 4kW); 130mm deep (up to 11kW); with zero-clearance mounting
Innovative interaction (e.g. over WLAN) makes new record-breaking commissioning times and convenient diagnostics a reality
Special user-friendliness

ID #: 202084
