Mfr. Part #: HG3G-VAXT22MF-B
ID #: 172602
| Backlight Life | 100,000 hours minimum |
| Display Resolution | 1024W x 768H pixels |
| Brightness | 700 cd/m2 |
| Display Type | TFT Color LCD |
| Operating Force | 3 N |

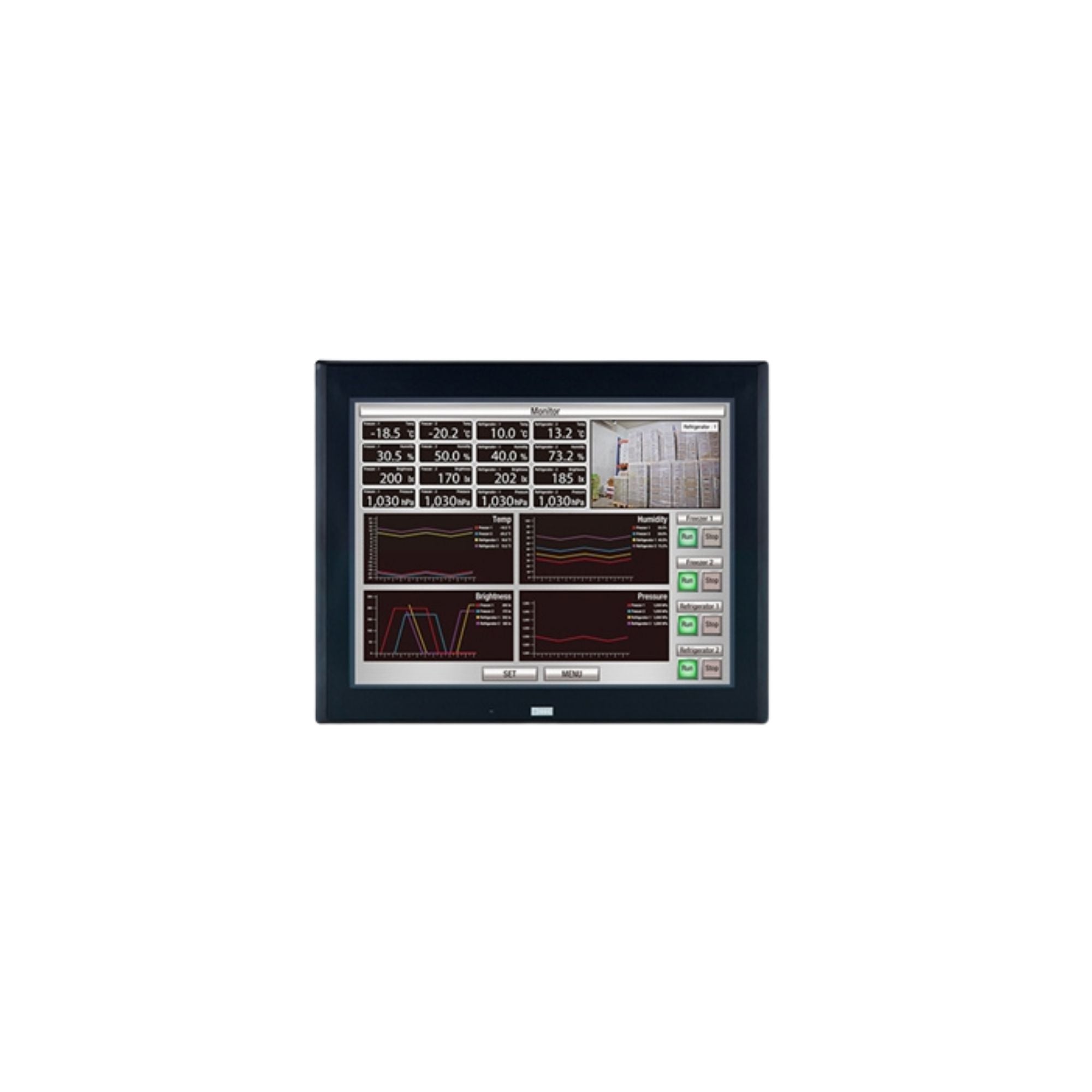

| Product Type | 10" HMI |
| Input Voltage | 24V DC |
| Maximum Power Consumption | 25W |
| Operating voltage range | 20.4 to 28.8V DC |
| SD Memory Slot | true |
| Number of Ethernet Port | 1 |
| USB Port | USB Mini-B USB Type A |
| Screen Size | 10.4 inches |
| Operating Temperature | -20 to +60 deg C |
| Degree of Protection | IP67f IP66f |
| CE marking | Yes |
| UL certification | Yes |
| TUV certification | Yes |
| Ship standard | true |
| Warranty | 3 Year |
| Bezel Color | Black |
| Body Color | black |
