Mfr. Part #: GP-F20-16-P-C
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 151758

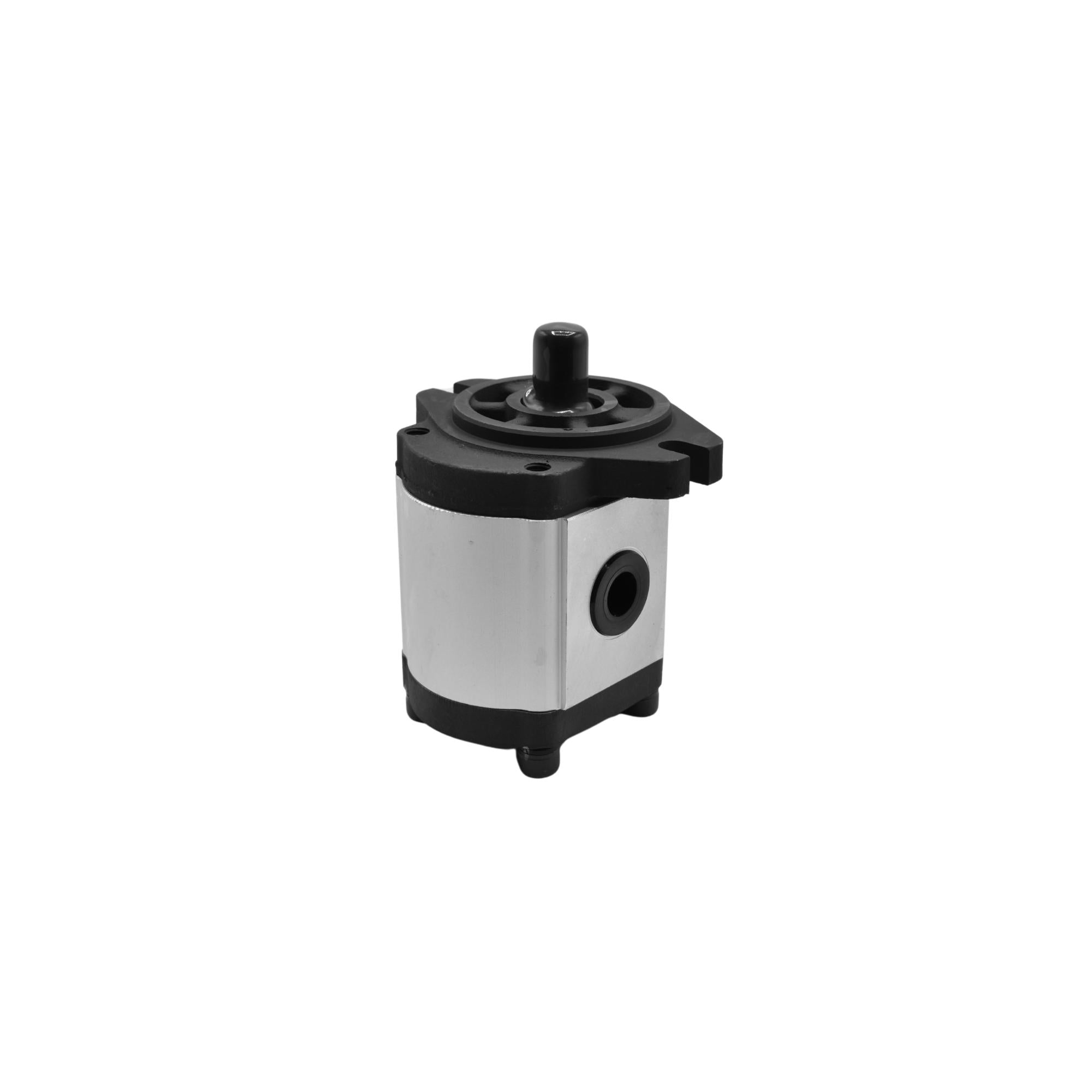

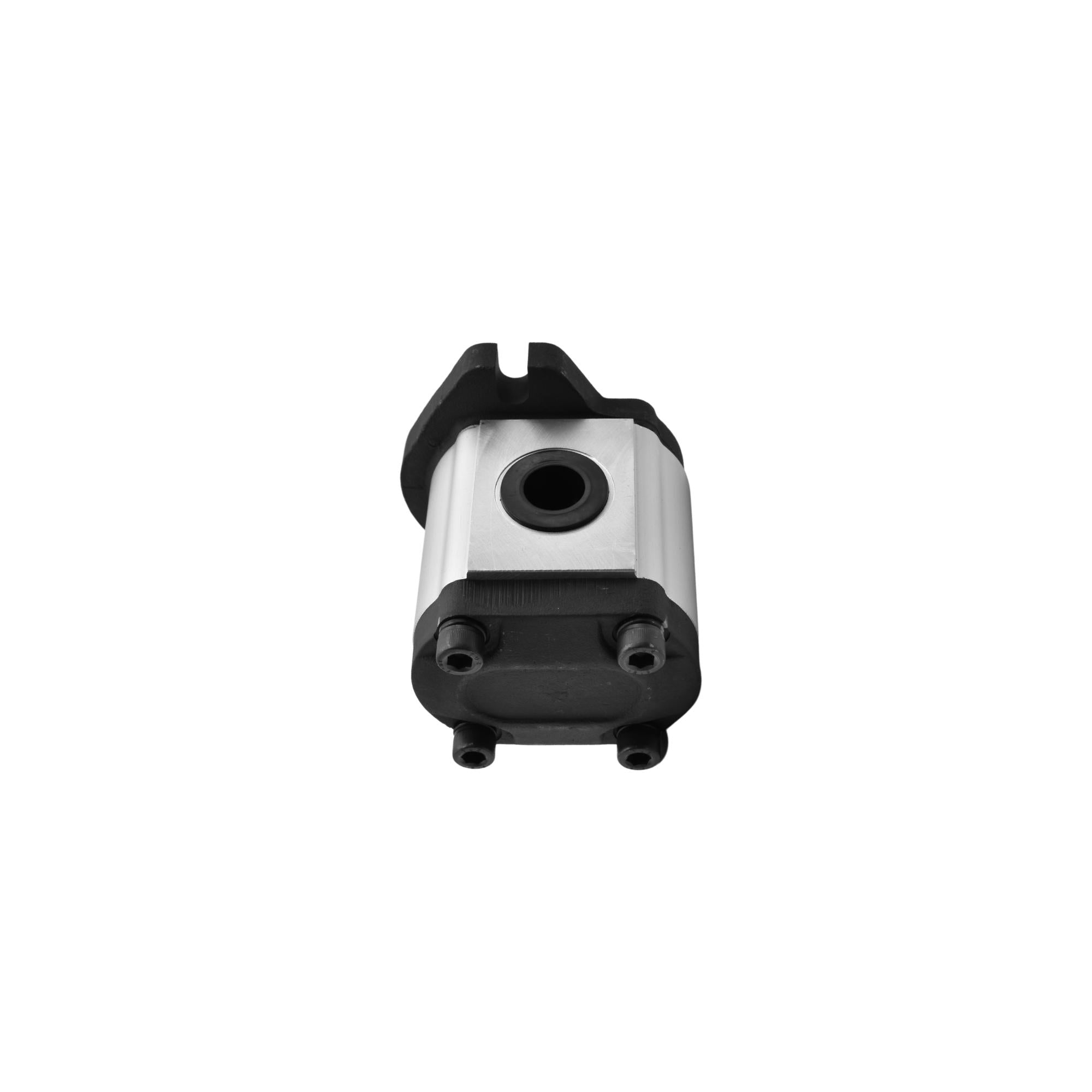

The GP-F20 Hydraulic Gear Pump is designed for high-pressure applications and features an aluminum center section with durable cast iron end plates. This pump offers 11 displacement sizes ranging from 0.24 to 1.95 in³/rev (4 to 32 cm³/rev). It comes with a standard SAE A – 2 bolt mounting flange and a 5/8” straight drive shaft with a 5/32” key, with additional shaft options available to suit various needs.
For optimal performance, the recommended working conditions include filtration of 25 microns or better, oil viscosity between 7 and 700 cSt, and an inlet pressure range of 12 to 32 psi absolute. The pump operates effectively within an oil temperature range of -25°C to 80°C (-12°F to 175°F) and an ambient temperature range of -22°C to 55°C (-8°F to 130°F).
| Specification | Details |
|---|---|
| Weight | 14 lbs |
| Dimensions | 6 × 6 × 6 in |
| Hydraulic Pump Style | Gear Pump |
| Pump Displacement | 0.97 |
| Pump Outlet Port Style/Size | ORB – 10 |
| Pump Mounting Flange | 2 Bolt / SAE A / 3.25" Pilot |
| Pump Inlet Port Style/Size | ORB – 12 |
| Pump Rotation | CW |
| Manufacturer | Dynamic Fluid Components |
| Pump Manufacturers | Dynamic Fluid Components |
| Pumps Frame Size | 16 (0.97 (16)) |
| Pumps Drive Shaft | 5/8” dia. Straight |
| Pumps Rotation | Clockwise |
| Pumps Max Pressure | 2900 psi |
| Pumps Rated Speed | 2000 rpm |
| Pumps Max Speed | 3600 rpm |
| Pumps Displacement | 0.97 (16) |
| Pumps Ports In | SAE-12 |
| Pumps Ports Out | SAE-10 |
| Pumps Side Ported | 4.50” |
| Pumps Rear Ported | 4.95” |
