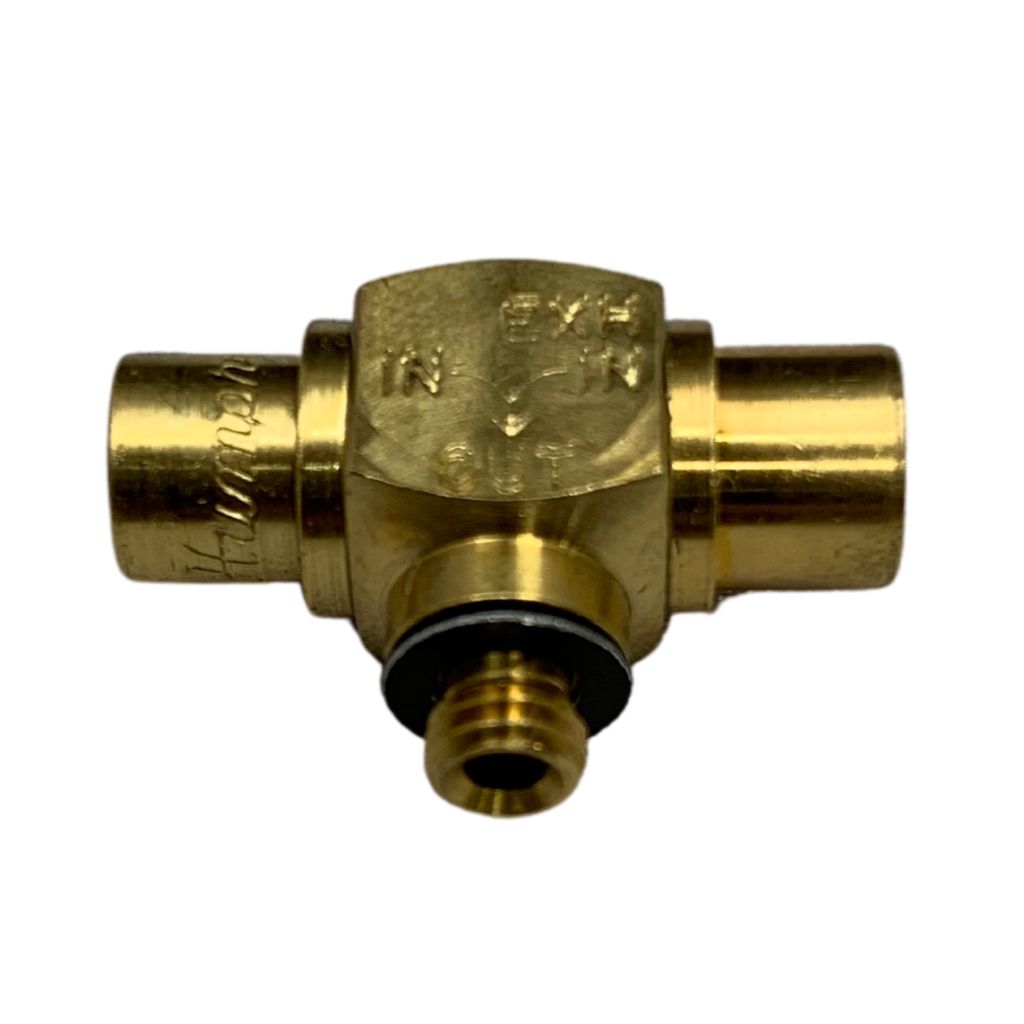

Humphrey | Miniature Quick Exhaust | SQE

Mfr. Part #: SQE

60 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity Discount Part Price
>10 5.0 % $14.06

ID #: 15118

  • Miniature Quick Exhaust or Shuttle (OR logic) Valve

    Humphrey SQE is 10-32 UNF and versatile. As quick exhaust, valve redirects exhausting air to its exhaust port by sensing pressure differential. As shuttle valve, opposing inlet ports always direct flow to common male port.

    • Add 97-21 metering screw (sold separately) to exhaust port and achieve miniature right angle flow control function for direct mount to 10-32 ported air cylinders
  • Description Miniature Quick Exhaust Valve
    Number of Ports 3 ports
    Number of Positions 2 positions
    Valve Function Quick Exhaust
    Piping Type Inline, Direct Piping
    Approx Size (in) HxWxD 0.66 x 0.38 x 0.93
    Media Air, Inert Gas
    Type of Operation Pressure Differential
    Flow Capacity (Cv) 0.13
    Port Size 10-32 UNF
    Pressure Range (psi) 3-125
    Ambient Temperature Range (⁰F) 20~150
    Wetted Materials Brass, Buna N
    Weight (oz) 0.4
