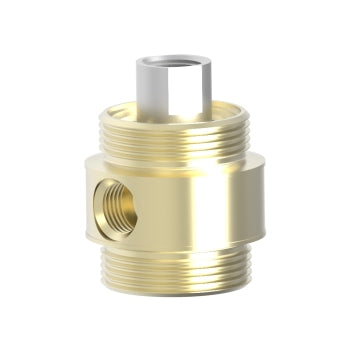

Humphrey | Diaphragm Poppet Air Piloted Valves | 125A-2-10-20-BRB

9 in stock | Need More? >>

125A Series 1/8 pipe Air Pilot Valves feature the classic Humphrey diaphragm poppet principle. The unbalanced, air-spring return design assures reliable shifting and bubble-tight sealing actuated, and unactuated. Compact design permits close proximity mounting to work and fast cycling/quick exhaust. Rugged 2- or 3- way valves are available normally closed or normally open, in standard or optional brass body construction (for alternate media).

Number of Ports 2 ports
Number of Positions 2 positions
Valve Function Single Pilot, Normally Closed
Piping Type Inline, Direct Piping
Size (in) HxWxD 1.5 x 1.19 DIA
Media Air, Inert Gas
Type of Operation Air Piloted
Flow Capacity (Cv) 0.30
Port Size 1/8 NPSF
Lubrication Not required
Media Filtration Not Required
Pressure Range (psi) 0-125
At Valved Pressure of:
Recommended Pilot Pressure (psi):
<=30 PSI 60 PSI 90 PSI 120 PSI
25 38 53 67
Operating Speed (cycles/min) 600
Ambient Temperature Range (⁰F) 0-225
Wetted Materials Brass, Buna N
Weight (oz) 5.5

ID #: 2573

Product Resources

Teco Pneumatic Services

TECO HQ is home to a state of the art services department! We have Pneumatic specialists available to help you with any solution.

Call us today to configure what you have in mind!

Our services starts the moment you buy a component, but it doesn't stop there...

Video Resources

More about this product

Video Transcript

A two-way valve is the simplest of all valves. You can have a two-way valve in pretty much any pneumatic system. They're the most simple. In our example, we're going to simply take a two-way push button valve. Two-way just means there is only two things that can be happening. It's either on or it's off.


And the push button, well, that's just the way we're going to make that happen. We could have a, a lever, we could have electricity, we could have any sorts of ways to make it happen. But all we're doing with the push button is simply actuating, making the valve change from one state to the other, and it's a two-way valve.


So the only two states, state number one is off, means the air is going to the valve, but it's not going through the valve.  state two as I come along and I push the button, sit on the button, kick the button, whatever, and now the air is going through the valve and downstream to wherever we've got our tubing going to.


It could be going to a balloon, it could be going to all sorts of other things, but that's all the two-way valve is. It's either on or it is off.
