Mfr. Part #: 41R-D3
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | 5.0 % | $53.02 |
ID #: 4612

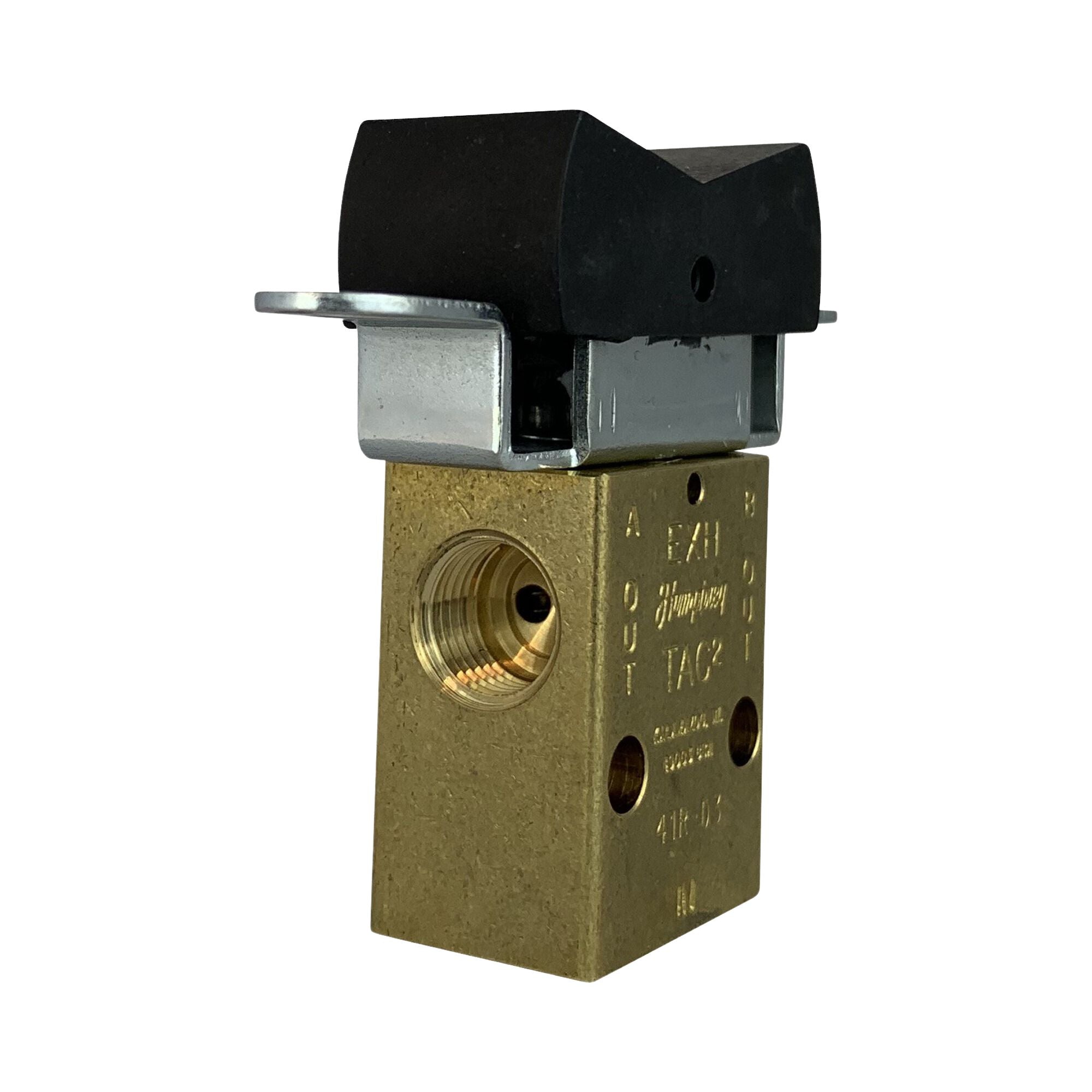

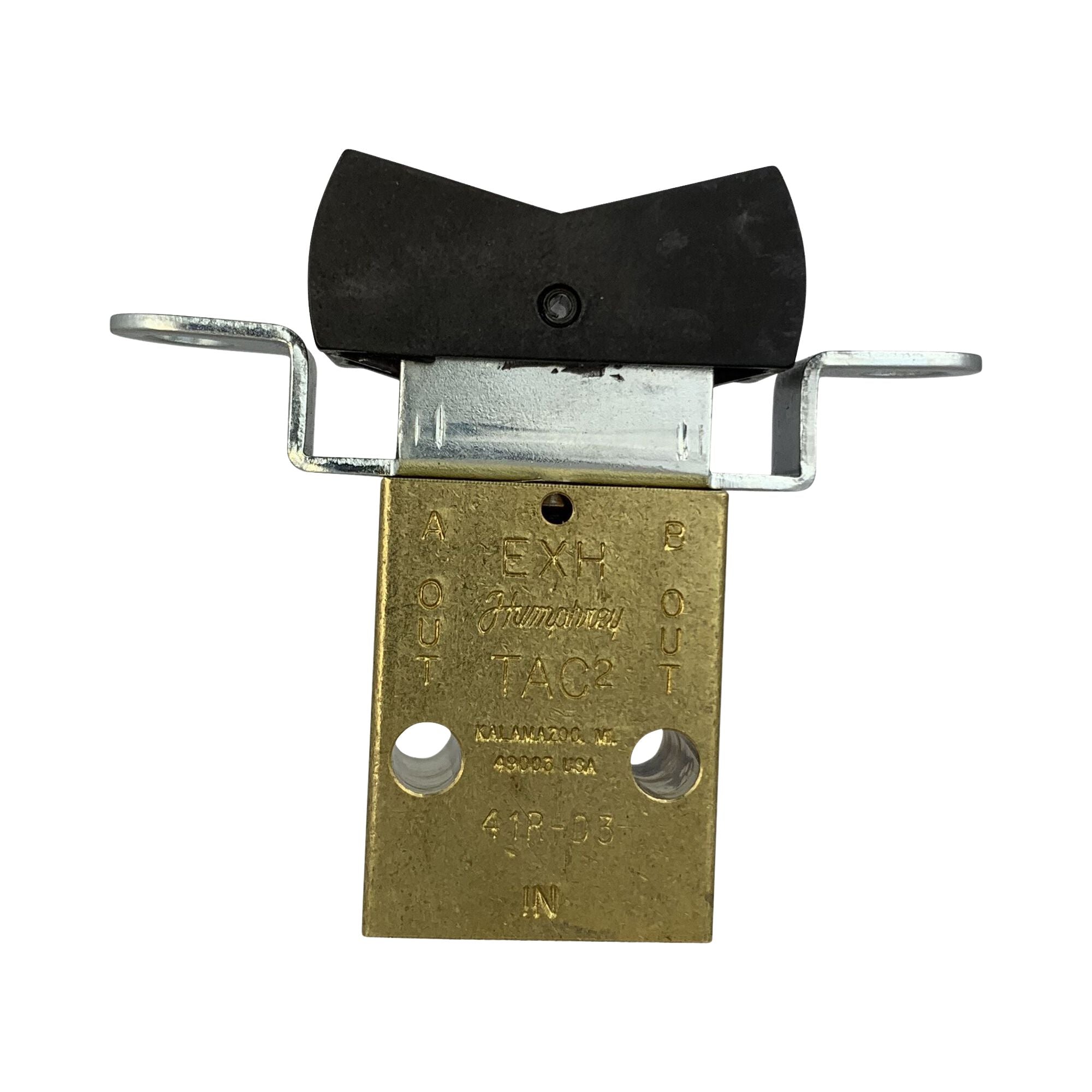

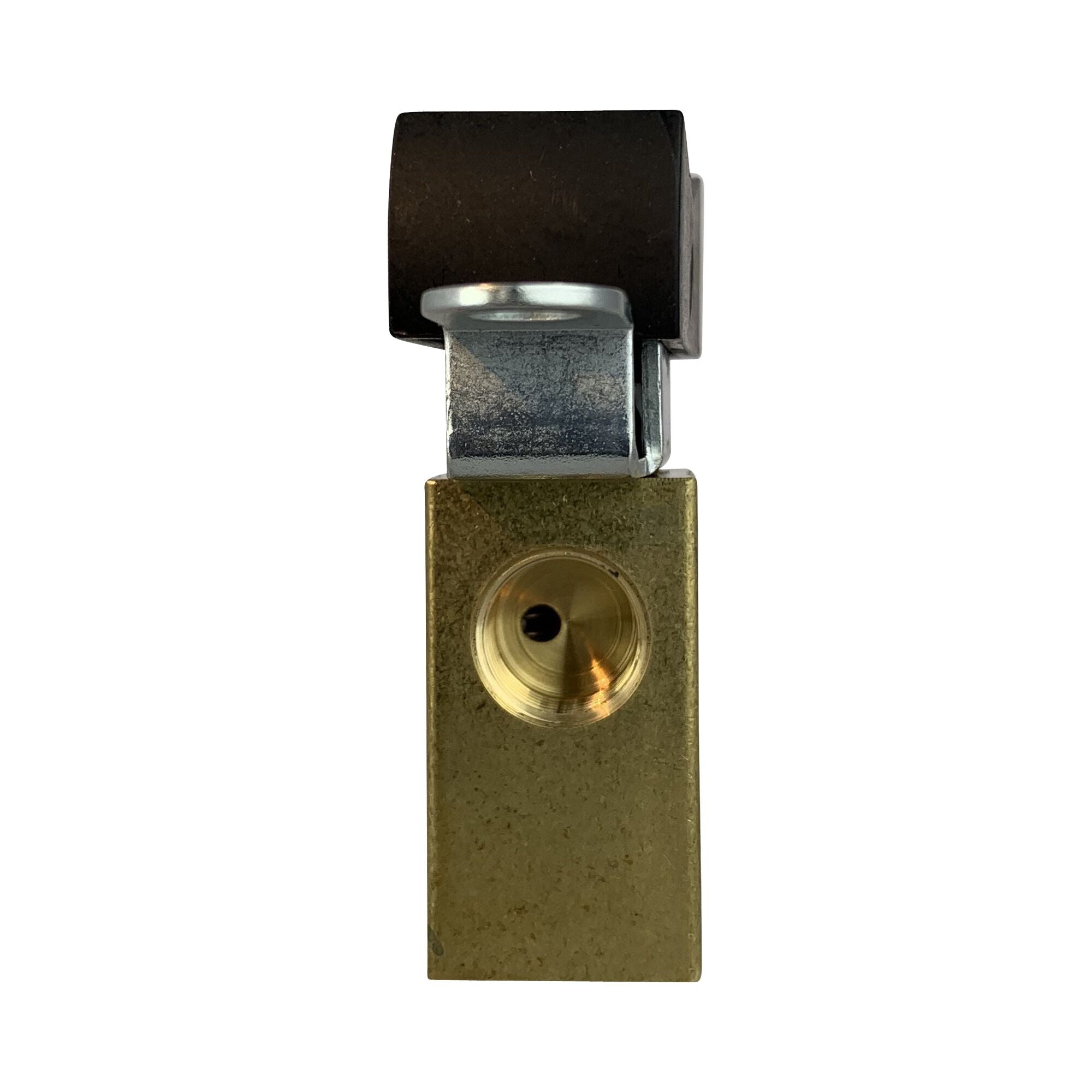

Three position, four way miniature rocker valve, detented, with 1/8 pipe ports. TAC three position toggle valves feature a rocker above speednuts and two 7/32 dia mtg holes. Feature permits easy panel mounting. Compact. Rugged.
| Number of Ports | 4 ports |
| Number of Positions | 3 positions |
| Valve Function | 4-way Detented, Exhaust Center |
| Piping Type | Inline, Direct Piping |
| Options Included | Flange Mounting Clips |
| Approx Size (in) HxWxD | 1.90 x 0.63 x 1.22 |
| Media | Air |
| Type of Operation | Rocker |
| Flow Capacity (Cv) | 0.12 |
| Port Size | 1/8 NPSF |
| Lubrication | Recommended |
| Media Filtration | 40 micron recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 3.0 |
