Mfr. Part #: 87R647-VS101-N470X
ID #: 190146

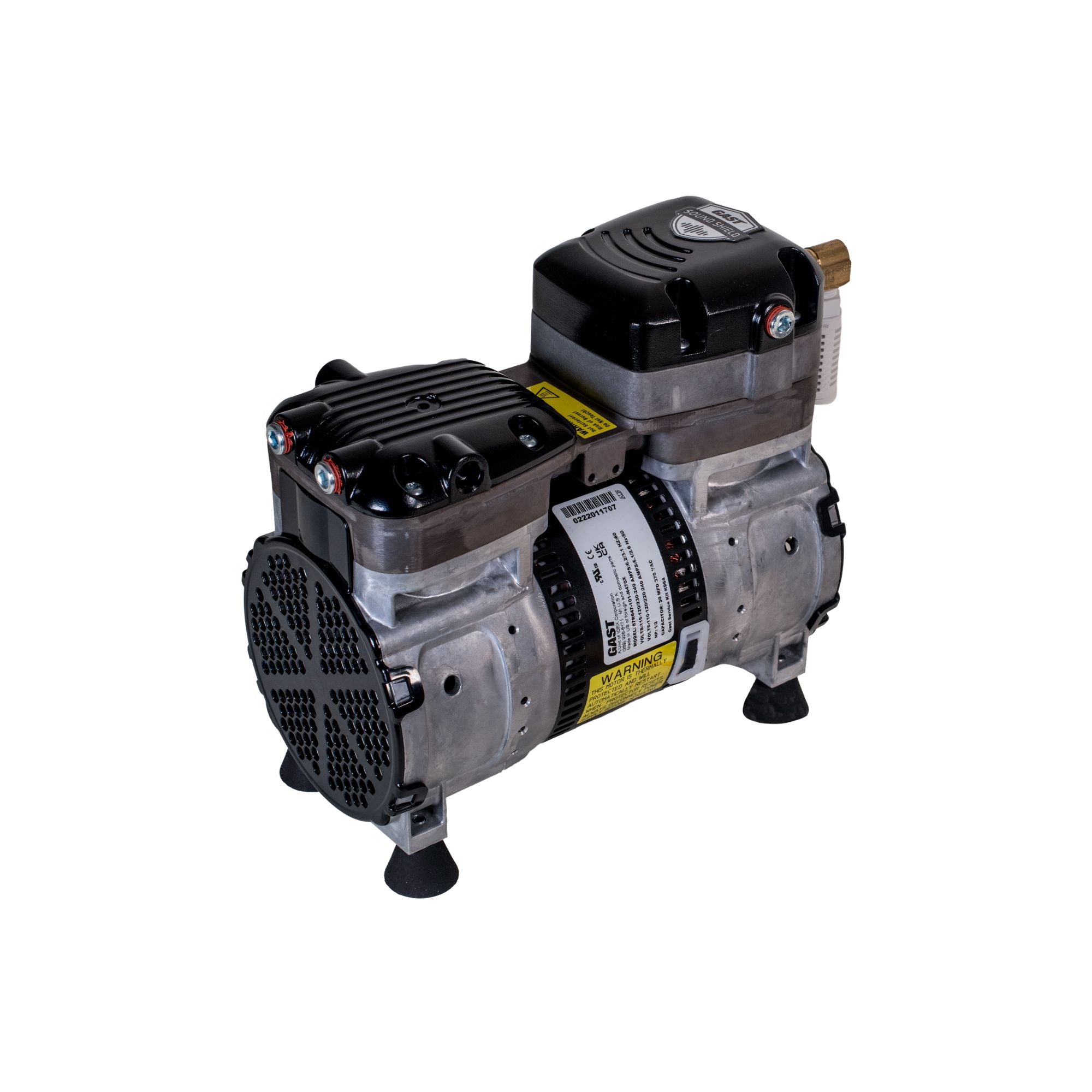

The Gast 87R647-VS101-N470X is a high-performance, oil-less rocking piston compressor and vacuum pump designed for quiet, efficient operation. With its durable construction and continuous duty cycle, it’s perfect for a wide range of applications, including industrial, medical, and laboratory uses.
| Max Speed: | 1725 rpm |
| Max Speed @ 50hz: | 1425 rpm |
| Max Speed @ 60hz: | 1725 rpm |
| Thermal Protection: | YES |
| Operating Voltage: | 115-120 |
| Regulatory Approval: | cUSus, CE |
| Mount: | FACE/FOOT |
| Power Rating: | 0.5 hp( 0.37 kW ) |
| Power Rating @ 50hz: | 0.5 hp ( 0.37 kW ) |
| Power Rating @ 60hz: | 0.5 hp ( 0.37 kW ) |
| Flow @ 50hz: | 4.8 cfm ( 8.16 m3h ) |
| Flow @ 60hz: | 4.8 cfm ( 8.16 m3h ) |
| Max Vacuum @ 50hz: | 28 in-hg ( 948.19 mbar ) |
| Max Vacuum @ 60hz: | 28 in-hg ( 948.19 mbar ) |
| Amps Running @ 50hz: | 5.1 |
| Amps Running @ 60hz: | 6.2 |
| Max Sound Level: | 55 dB(A) |
| Weight: | 19.1 lbs ( 8.66 kg ) |
| Duty Cycle: | 100% |
