Mfr. Part #: R3105-12
ID #: 22057

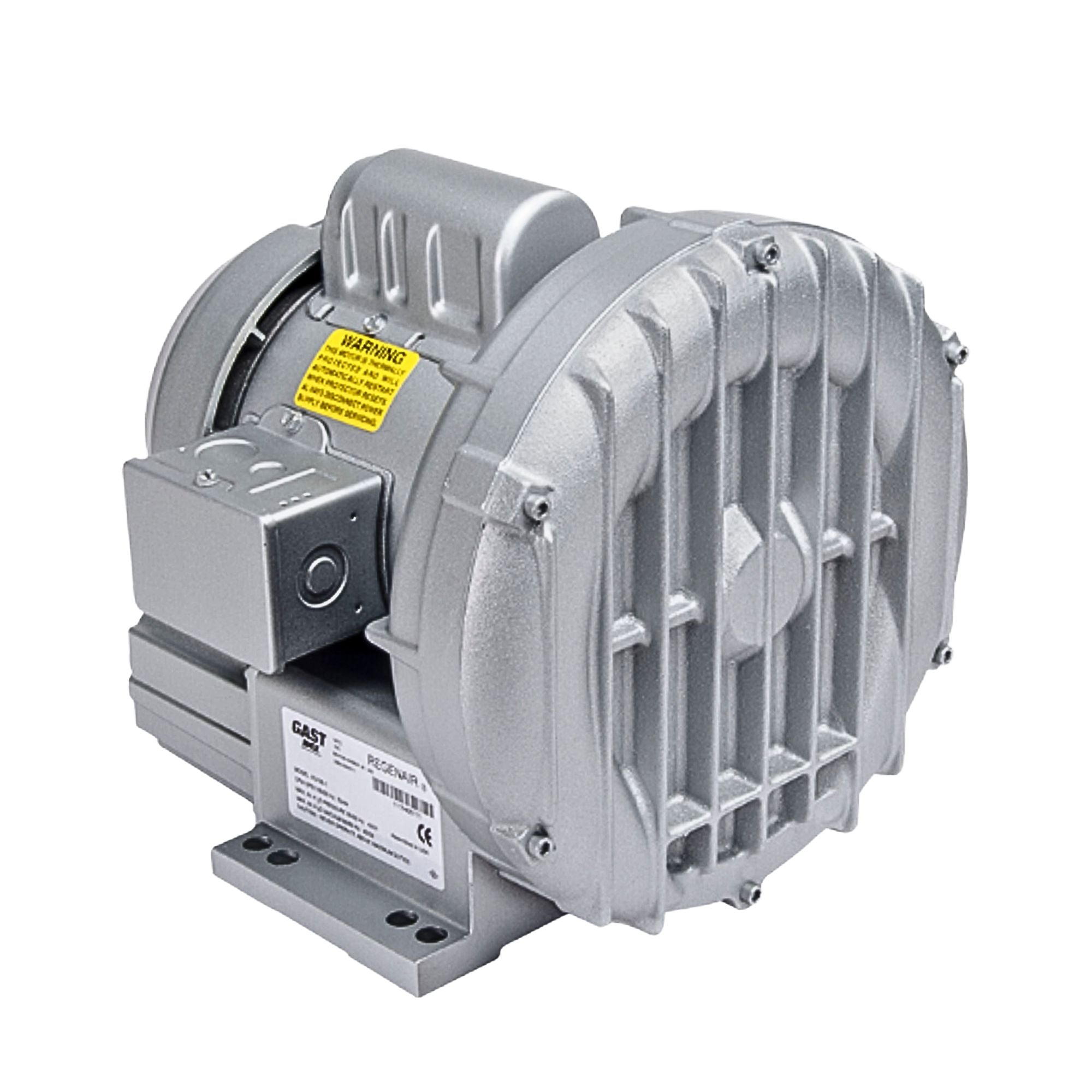

With a rugged construction that's suitable for demanding applications, the R3 offers oil-less operation ensuring that the discharge air remains free of contamination. The R3 can be mounted in any plane, which provides flexibility when mounting or integrating the blower into an OEM system. In addition, these blowers have very few moving parts and no wearing components, which minimize downtime and helps to lessen operating noise levels.
| SPECIFICATIONS | ||
| Thermal Protection | YES | |
| Operating Voltage | 110/220-240; 115/208-230 | |
| Regulatory Approval | CSA, CE | |
| Flow @ 50hz | 44 cfm ( 74.76 m3h ) | |
| Flow @ 60hz | 52 cfm ( 88.35 m3h ) | |
| Max Pressure | 55 in-h20 ( 1862.51 mbar ) | |
| Max Pressure @ 50hz | 40 in-h20 ( 1354.56 mbar ) | |
| Max Pressure @ 60hz | 55 in-h20 ( 1862.51 mbar ) | |
| Max Vacuum @ 50hz | 35 in-h20 ( 1185.24 mbar ) | |
| Max Vacuum @ 60hz | 50 in-h20 ( 1693.2 mbar ) | |
| Weight | 29 lbs ( 13.15 kg ) | |
| Duty Cycle | 100% | |
| Warranty | 1 Year | |
