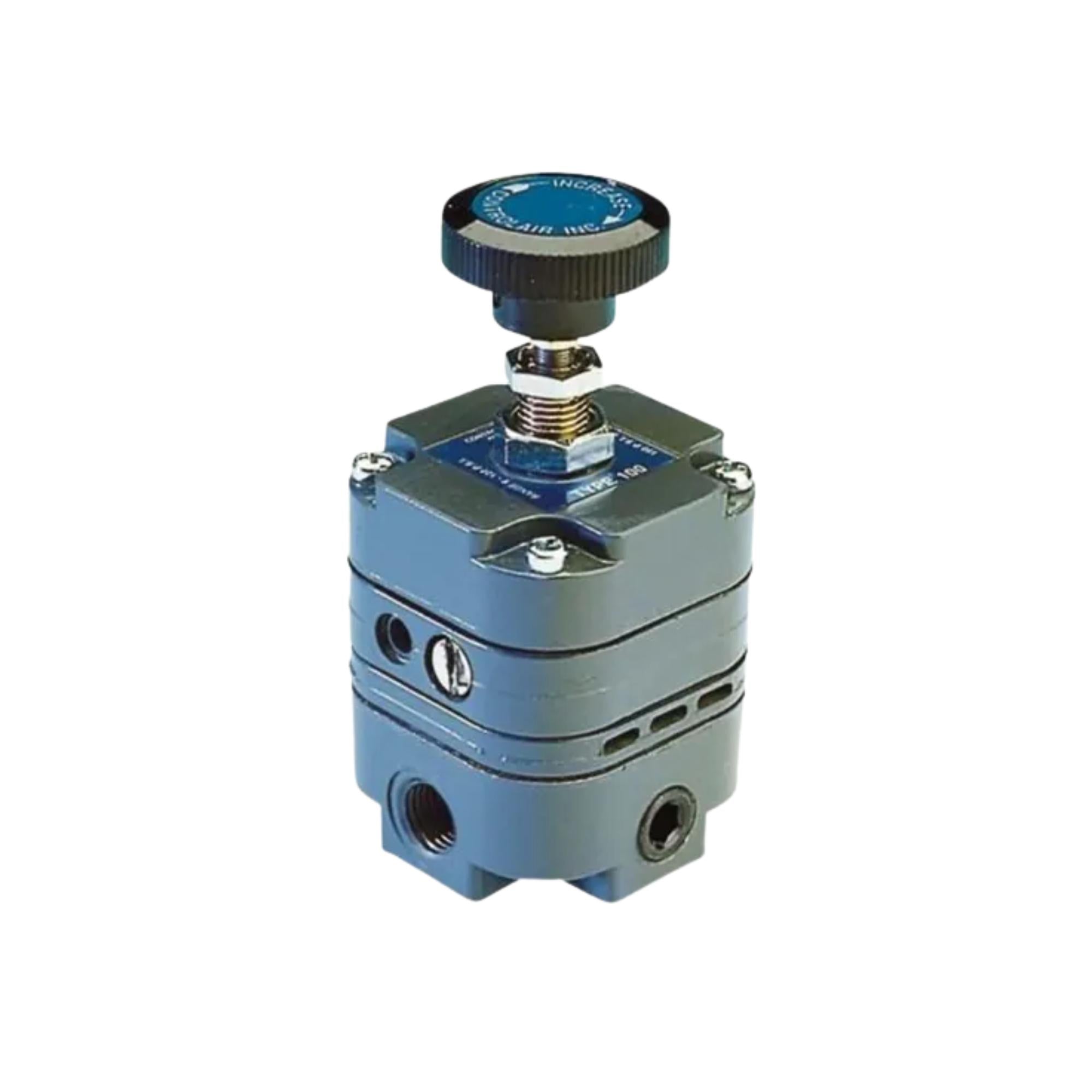

ControlAir | Regulator 1/4"NPT 2-40PSI | 100-BA

Name: ControlAir | Regulator 1/4"NPT 2-40PSI | 100-BA
Brand: ControlAir LLC
SKU: 100-BA
Price: 152.19 USD
Availability: InStock

Mfr. Part #: 100-BA

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 208288

100-BA precision regulator, 1/4" NPT, 2-40 PSI, 0.1% accuracy. For medical, lab, and industrial air control.
Key Features:
• High precision multi-stage air pressure regulator with 0.1% accuracy and sensitivity of 1/8" water
• 1/4" NPT port size with 2-40 PSI output range and maximum supply pressure of 150 PSI
• Diecast zinc alloy body with stainless steel measuring capsule and adjusting screw for durability
• Flow capacity of 14 SCFM and total air consumption under 6 SCFH for efficient operation
• Operating temperature range of -20°F to 160°F; optional tamper-proof and high-relief variants

Common Applications:
• Precision fluid control in medical instrumentation and ventilators
• Diagnostic controls and calibration standards in testing equipment
• Air gauging and gate actuators in manufacturing processes
• Microfluidics and gas mixing in laboratory setups
• Cylinder loading and web tensioning in industrial automation

Specifications - 100-BA
Model	100-BA
Type	Multi-Stage Precision Air Pressure Regulator
Port Size	1/4" NPT
Output Range	2-40 PSI
Max Supply Pressure	150 PSI
Accuracy	0.1%
Sensitivity	1/8" Water Column
Flow Capacity	14 SCFM
Air Consumption	<6 SCFH
Material	Diecast Zinc Body, Stainless Steel Capsule & Screw
Temperature Range	-20°F to 160°F
Applications	Medical instrumentation, diagnostic controls, air gauging, microfluidics, gas mixing, cylinder loading, web tensioning
