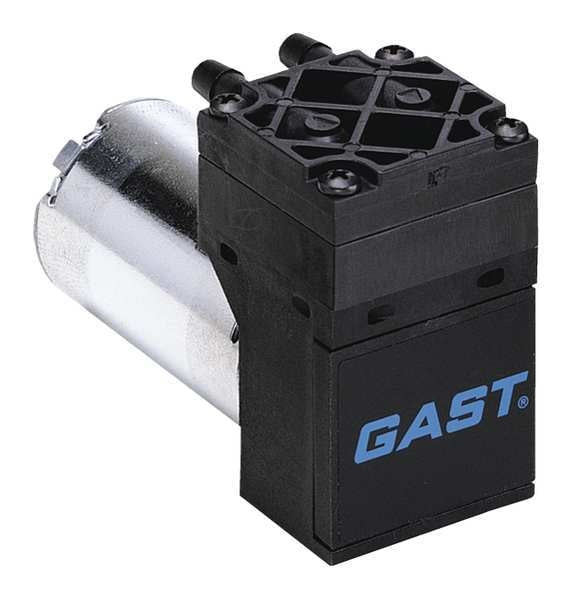

Gast | Compressor Pump Diaph 1/125HP 3-2/67 in | 10D1125-101-1052

17 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

Constructed of EPDM (Ethylene Propylene Diene Monomer) valve and diaphragm, chemically resistant PPS (Polyphenylene Sulfide) head assembly. The same model can be used as a compressor or vacuum pump, mounted in any plane, and head mounts in any of four positions with threaded or barbed ports, several alternate stroke options available.

  Power

   1/125 HP

  Max Flow

  4.3 lpm

  Max Pressure

  15 PSI

  Weight

  8 oz.

  Min Temperature

  40 F

  Max Temperature

  104 F

  Volts

 12 VDC

  Cycle

  60

  Phase

  1

  Speed 60 Hz

  3400

ID #: 20893
