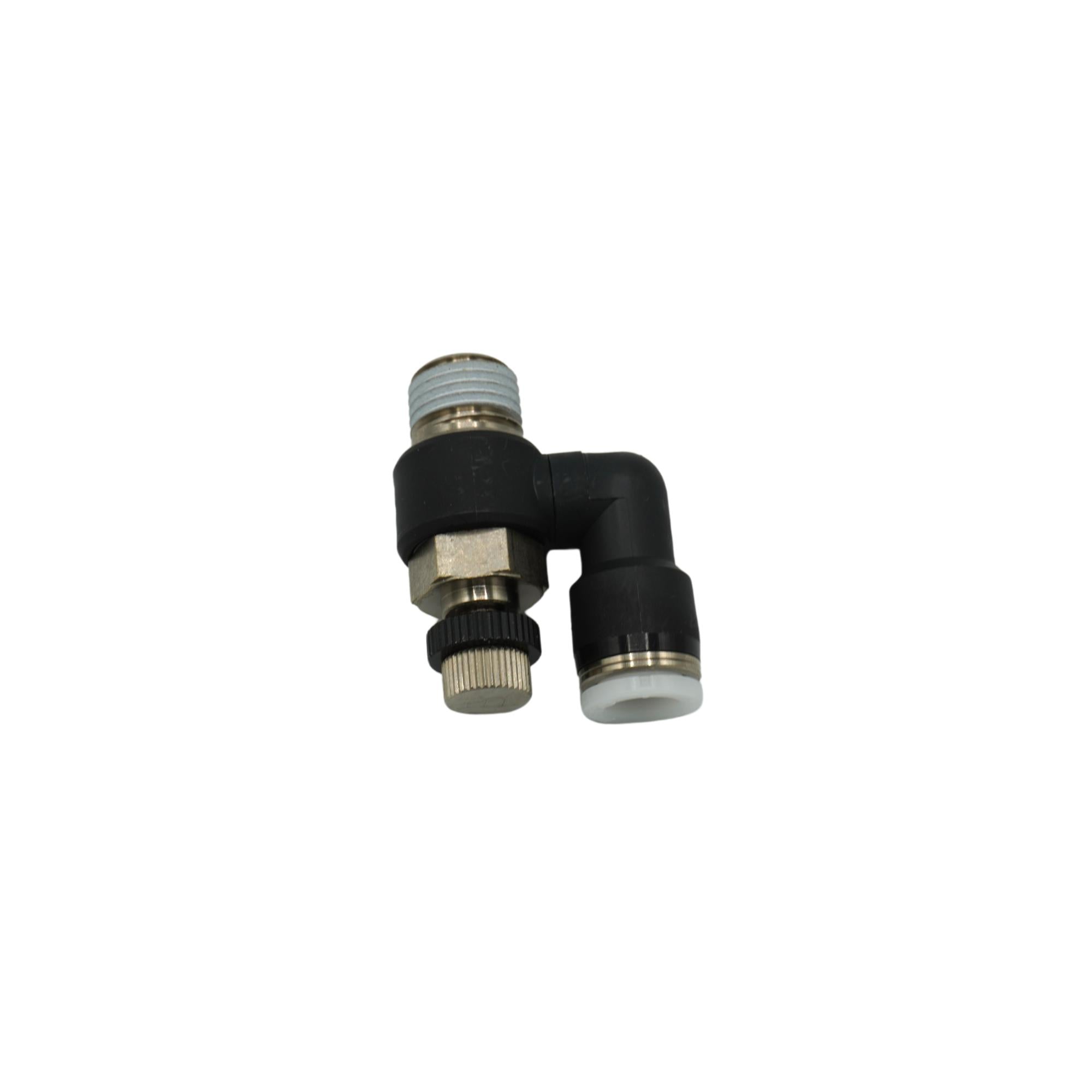

Pisco | Koganei | 1/4" NPT x 5/16" Tube Flow Control, Meter-in | JSS5/16-N2BU

$10.63

Mfr. Part #: JSS5/16-N2BU

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 209070

Description
Resources

Introducing the Standard Speed Control Valve for driving devices, engineered for efficient control of airflow in pneumatic systems. This valve is designed to offer reliable performance, making it an excellent choice for various industrial applications.

This valve features a PBT resin body that provides high durability, ensuring that the valve maintains performance even in demanding environments. The brass with electroless nickel plating construction offers superior resistance to corrosion, enhancing the valve's lifespan. The NBR and HNBR seals provide reliable sealing for the valve's air medium, preventing leaks during operation.

With an operating pressure range of 0.1 to 0.9 MPa, this valve is ideal for controlling air flow within pneumatic systems. The check valve cracking pressure of 0.05 MPa ensures smooth and consistent operation, while the operating temperature range of 0 to 60°C allows the valve to perform effectively in diverse conditions (without freezing).

This Standard Speed Control Valve is a versatile and dependable component for pneumatic systems, offering precise control and ensuring smooth, efficient operation in a wide range of industrial environments. Enhance your system’s performance by incorporating this durable and high-quality valve.
Product Resources

STEP file

Download Step File

FAQ

: Common types include push-to-connect, barbed, compression, and threaded fittings—each suited for different tubing and application requirements.
: Selection depends on the tubing’s outer diameter (OD), the thread type (e.g., NPT, BSPT), and the pressure rating of the system. Using a fitting size chart helps ensure proper fit and performance.
: Some fittings, like threaded metal ones, can be reused if undamaged, but push-to-connect fittings may wear or lose grip strength over time and should be replaced to maintain a secure seal.
