Mfr. Part #: NB102-012-002
ID #: 192990

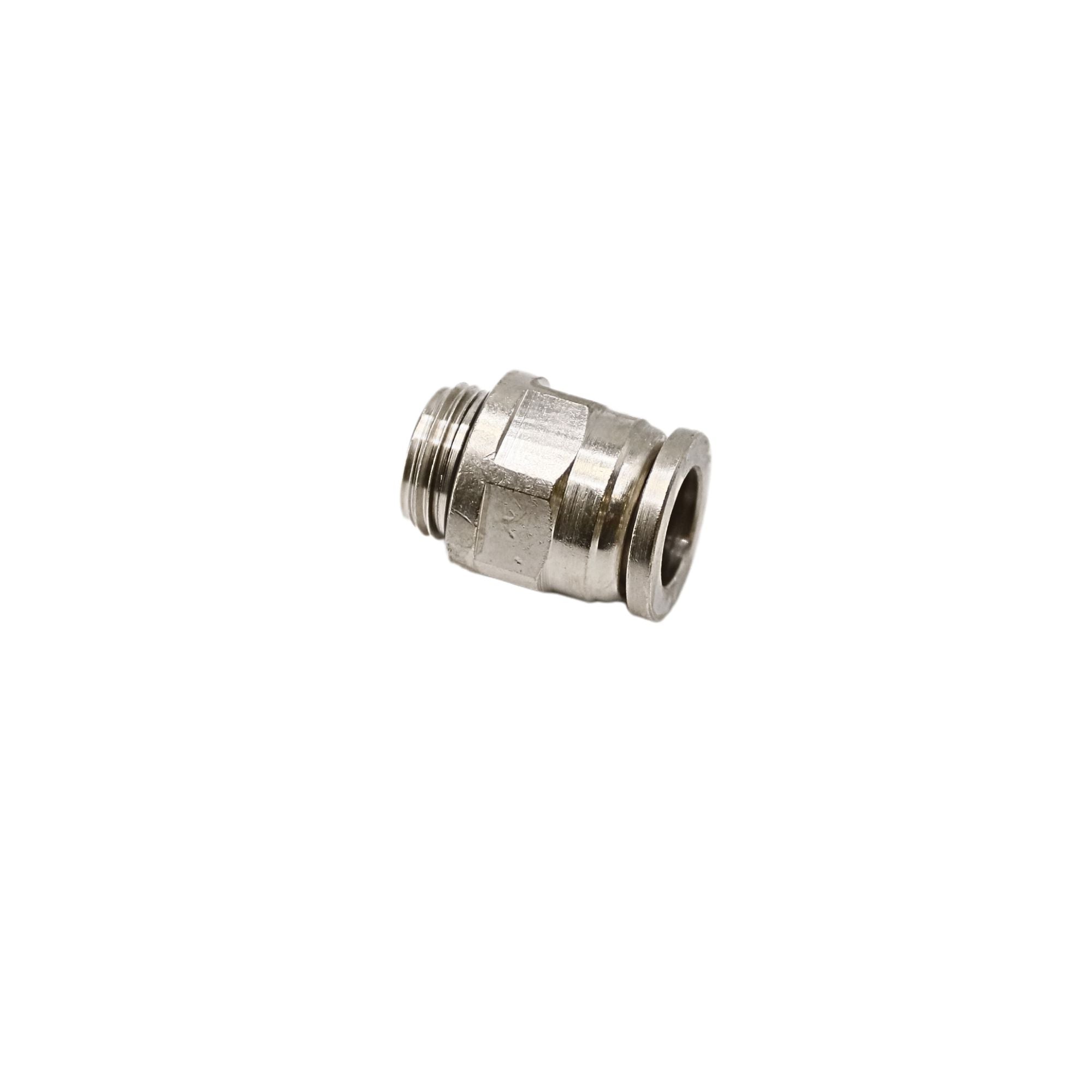

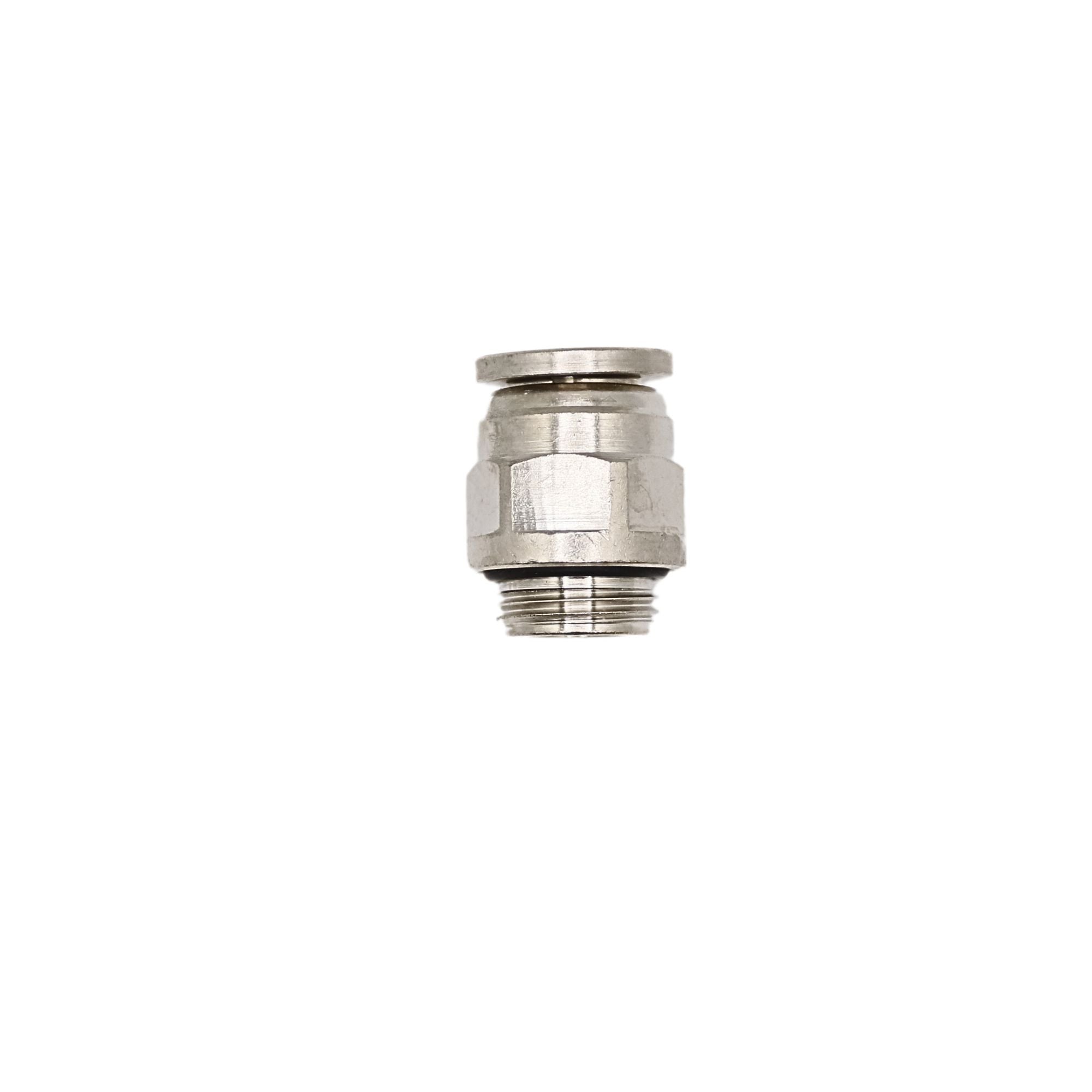

Aventics NP Brass Push-in fitting 12mm Tube 3/8 in MNPT
| Specifications | ||
| Tube Size | 12mm | |
| Thread-Type | 3/8" NPT | |
| Style | Standard | |
| NB102 | Tube Diameter | Thread | |
| NB102-004-000 | 4 | 1/8" | |
| NB102-004-001 | 4 | 1/4" | |
| NB102-005-000 | 5 | 1/8" | |
| NB102-005-001 | 5 | 1/4" | |
| NB102-006-000 | 6 | 1/8" | |
| NB102-006-001 | 6 | 1/4" | |
| NB102-008-000 | 8 | 1/8" | |
| NB102-008-001 | 8 | 1/4" | |
| NB102-008-002 | 8 | 3/8" | |
| NB102-010-001 | 10 | 1/4" | |
| NB102-010-002 | 10 | 3/8" | |
| NB102-010-003 | 10 | 1/2" | |
| NB102-012-001 | 12 | 1/4" | |
| NB102-012-002 | 12 | 3/8" | |
| NB102-012-003 | 12 | 1/2" | |
| D | D1 | L | L1 | H | SW | SW1 |
| 14 | 9.9 | 18.1 | 5.7 | 12.2 | 10 | 3 |
| 17 | 9.9 | 18.8 | 6 | 12.2 | 10 | 3 |
| 14 | 10.9 | 18.8 | 5.7 | 12.7 | 11 | 3 |
| 17 | 10.9 | 19.2 | 6 | 12.7 | 11 | 3 |
| 14 | 11.9 | 19 | 5.7 | 13.3 | 12 | 4 |
| 17 | 11.9 | 19.8 | 6 | 13.3 | 12 | 4 |
| 17 | 15 | 24.5 | 5.7 | 15.8 | 15 | 6 |
| 19 | 15 | 22 | 6 | 15.8 | 16 | 6 |
| 21 | 15 | 22.7 | 6.5 | 15.8 | 16 | 6 |
| 20 | 17.4 | 25.3 | 6 | 16.8 | 18 | 7 |
| 22 | 17.4 | 23.3 | 6.5 | 16.8 | 18 | 7 |
| 26 | 17.4 | 28.3 | 9.5 | 16.8 | 18 | 7 |
| 22 | 20 | 27.4 | 6 | 18.9 | 20 | 7 |
| 22 | 20 | 28 | 6 | 18.9 | 20 | 7 |
| 26 | 20 | 31.5 | 9.5 | 18.9 | 20 | 9 |
