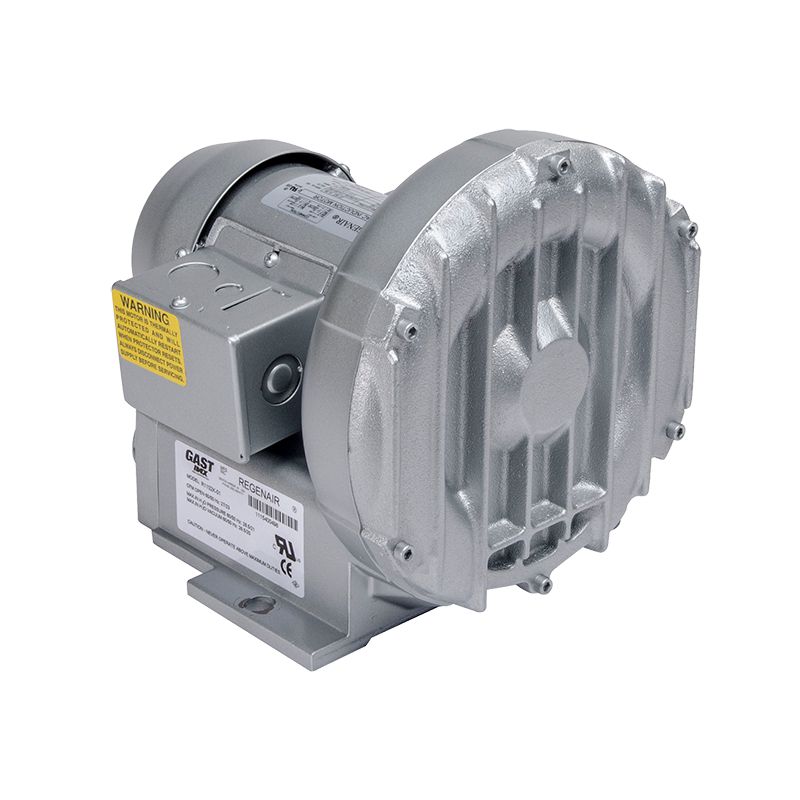

Gast | 1/8 HP Single Phase Regenerative Blower | R1102K-01

Name: Gast | 1/8 HP Single Phase Regenerative Blower | R1102K-01
Brand: Gast Manufacturing Corporation
SKU: R1102K-01
Price: 867.3 USD
Availability: InStock

$867.30

Mfr. Part #: R1102K-01

Pickup Available at Livermore

ID #: 13951

Description
Features
Specifications
Resources

With a rugged construction that's suitable for demanding applications, the R1 offers oil-less operation ensuring that the discharge air remains free of contamination. The R1 can be mounted in any plane, which provides flexibility when mounting or integrating the blower into an OEM system. In addition, these blowers have very few moving parts and no wearing components, which minimize downtime and helps to lessen operating noise levels.
The Gast R1102K-01 is a compact, oil-less regenerative blower designed for applications requiring clean, dry air with low noise levels. Its versatility allows it to function as both a compressor and a vacuum pump, making it suitable for various industrial, medical, and laboratory environments.

Key Features:
- Oil-less operation ensures discharge air remains free of lubricant contamination
- Dual functionality as both a compressor and vacuum pump
- Quiet operation, ideal for noise-sensitive environments
- Simple field serviceability extends product life and maximizes uptime
- Lightweight and compact design for easy integration into systems
- Thermal protection for motor safety
- Operating voltage: 110/115V or 220-240V AC
- Regulatory approvals: UL, CSA, CE
- Duty cycle: 100%
- Maximum flow rate: 27 cfm (45.87 m³/h) at 60 Hz
- Maximum pressure: 28.5 in H2O (965.12 mbar)
- Maximum vacuum: 26.5 in H2O (897.39 mbar)

Common Applications:
- Laboratory environments requiring precise vacuum control
- Medical and dental equipment requiring clean, oil-free air
- Environmental testing and sampling applications
- Packaging and material handling requiring controlled air pressure
- Analytical instruments and equipment in research and development setting

Thermal Protection	YES
Operating Voltage	110/220-240; 115/208-230 - 1 PH
Regulatory Approval	UL, CSA, CE
Flow‎ @ 50hz	23 cfm( 39.08 m³h )
Flow @ 60hz	27 cfm( 45.87 m³h )
Max Pressure	28.5 in-h20( 965.12 mbar )
Max Pressure @ 50hz	21 in-h20( 711.14 mbar )
Max Pressure @ 60hz	28.5 in-h20 ( 965.12 mbar )
Max Vacuum @ 50hz	20 in-h20( 677.28 mbar )
Max Vacuum @ 60hz‎	26.5 in-h20( 897.39 mbar )
Weight	15.75 lbs( 7.14 kg )
Duty Cycle	100%
Warranty	1 Year
