Numatics | Aventics Coalescing Filter 3/8 in NPT, 18SCFM | F22D-03

Name: Numatics | Aventics Coalescing Filter 3/8 in NPT, 18SCFM | F22D-03
Brand: NUMATICS, INC
SKU: F22D-03
Price: 62.98 USD
Availability: InStock

Mfr. Part #: F22D-03

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 144966

Description
Features
Specifications
Resources

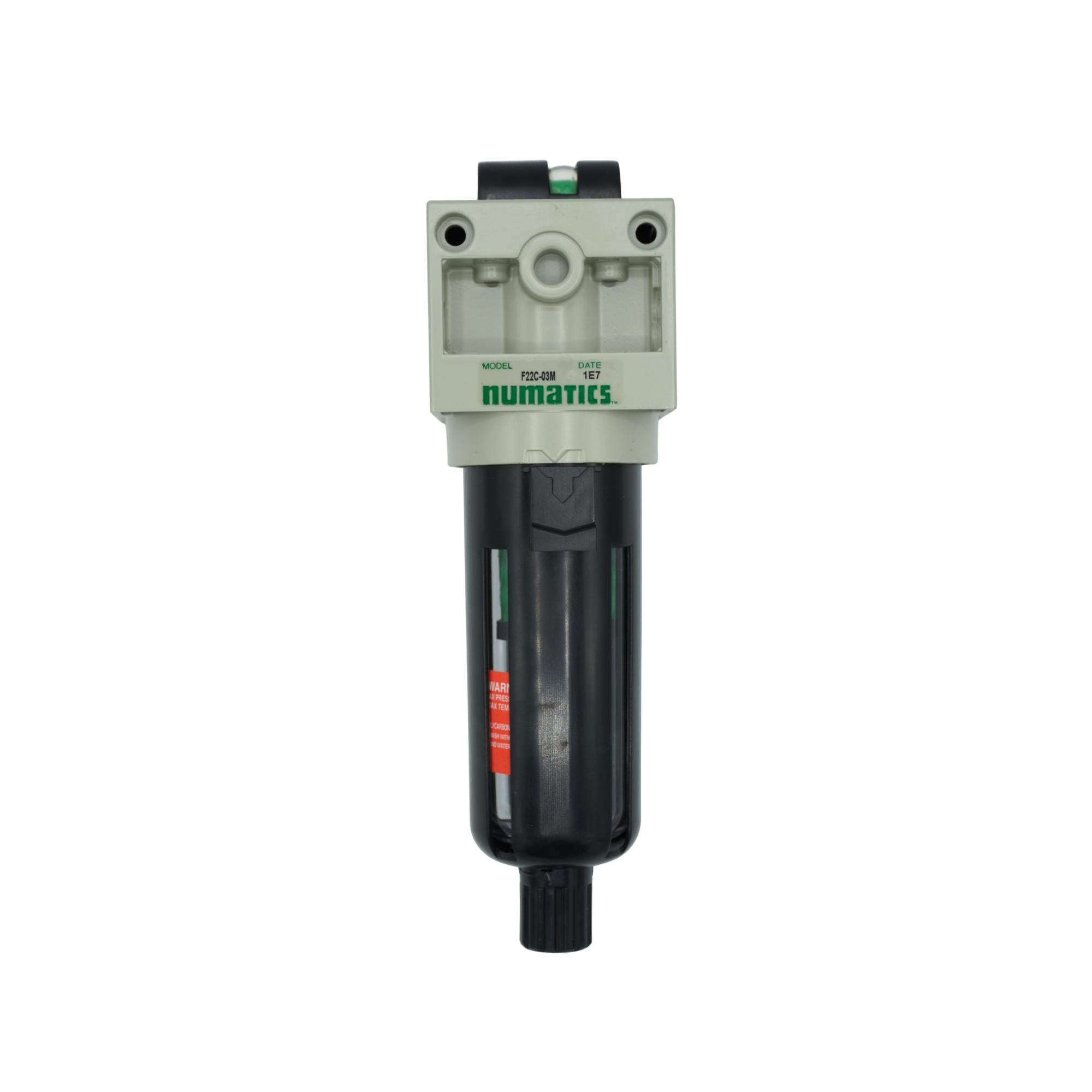

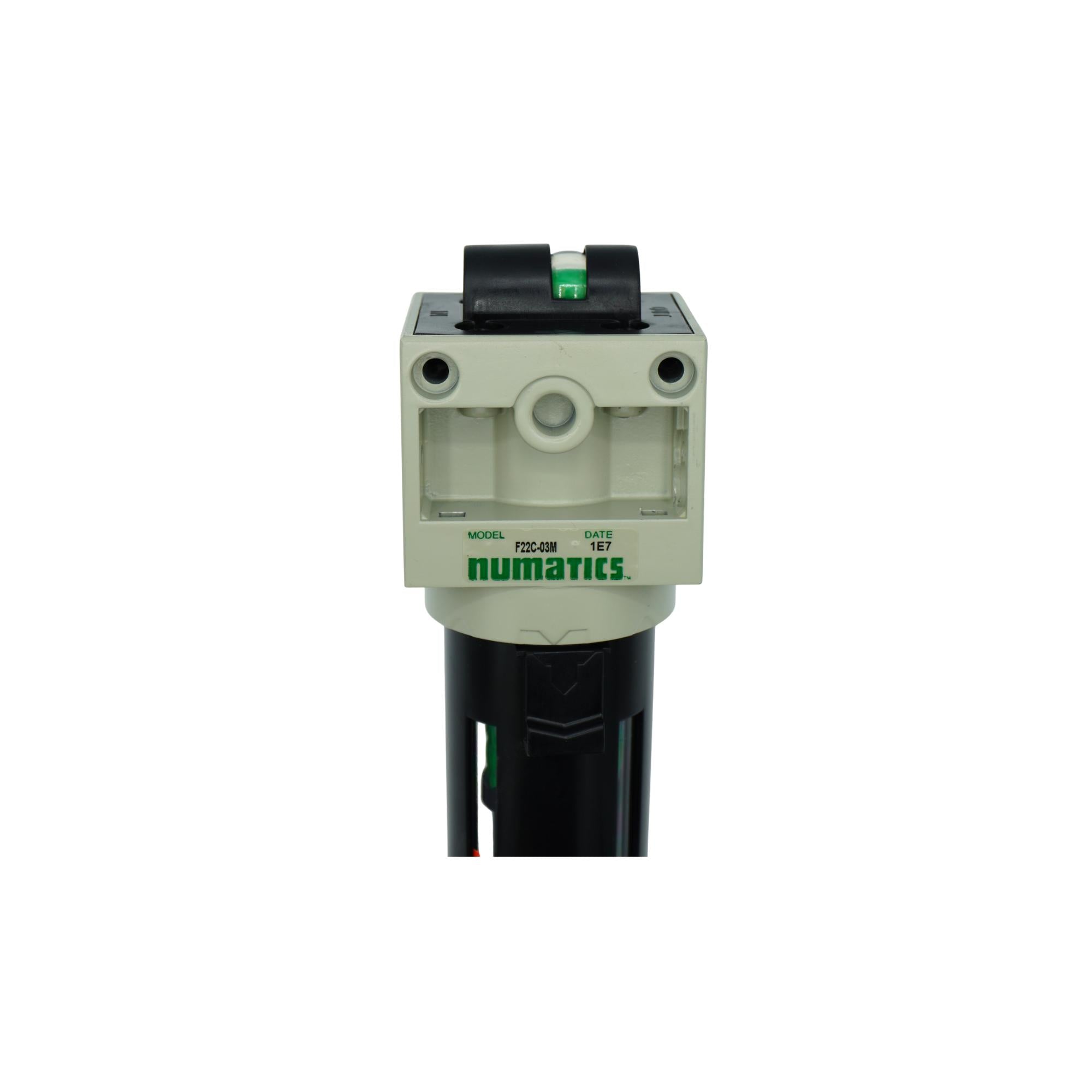

F22D-03 is a 3/8" coalescing filter with 0.3 micron filtration, ideal for clean compressed air in industrial and OEM pneumatic systems.
Key Features:
• Part of ASCO/Numatics FlexiBlok series of filter-regulator‑lubricator units
• Coalescing filter with 0.3 micron fine element to remove oil aerosols and sub‑micron particles
• 3/8″ FNPT (NPTF) threaded ports, rated up to 18 SCFM (≈510 L/min) and 0–150 PSIG (0–10 bar)
• 3.8 oz bowl capacity, metal bowl with sight glass, optional auto or manual drain configurations
• Operating temperature range ~+4 °C to +50 °C (40 °F–120 °F)

Common Applications:
• Critical air preparation in industrial automation systems
• Protection of pneumatic components, valves, cylinders, and air logic from contamination
• Instrumentation & analytical systems needing ultra‑clean air
• Food, beverage, pharmaceutical manufacturing environments
• Packaging and OEM machinery requiring fine filtration of compressed air

Specification	Details
Model	F22D-03
Series	FlexiBlok
Component Type	Coalescing Filter
Filtration Rating	0.3 micron
Port Size	3/8" NPT (NPTF)
Flow Capacity	18 SCFM (≈510 L/min)
Operating Pressure	0–150 PSIG (0–10 bar)
Bowl Capacity	3.8 oz
Bowl Material	Metal with sight glass
Drain Option	Manual or automatic
Operating Temperature	+4 °C to +50 °C (40 °F to 120 °F)
Applications	Industrial automation, instrumentation, food & beverage, pharmaceutical, OEM systems
