Numatics | Aventics Coalescing Filter 1/4 in NPT, 12SCFM | F14E-02

Name: Numatics | Aventics Coalescing Filter 1/4 in NPT, 12SCFM | F14E-02
Brand: NUMATICS, INC
SKU: F14E-02
Price: 98.48 USD
Availability: InStock

Mfr. Part #: F14E-02

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 139609

Description
Features
Specifications
Resources

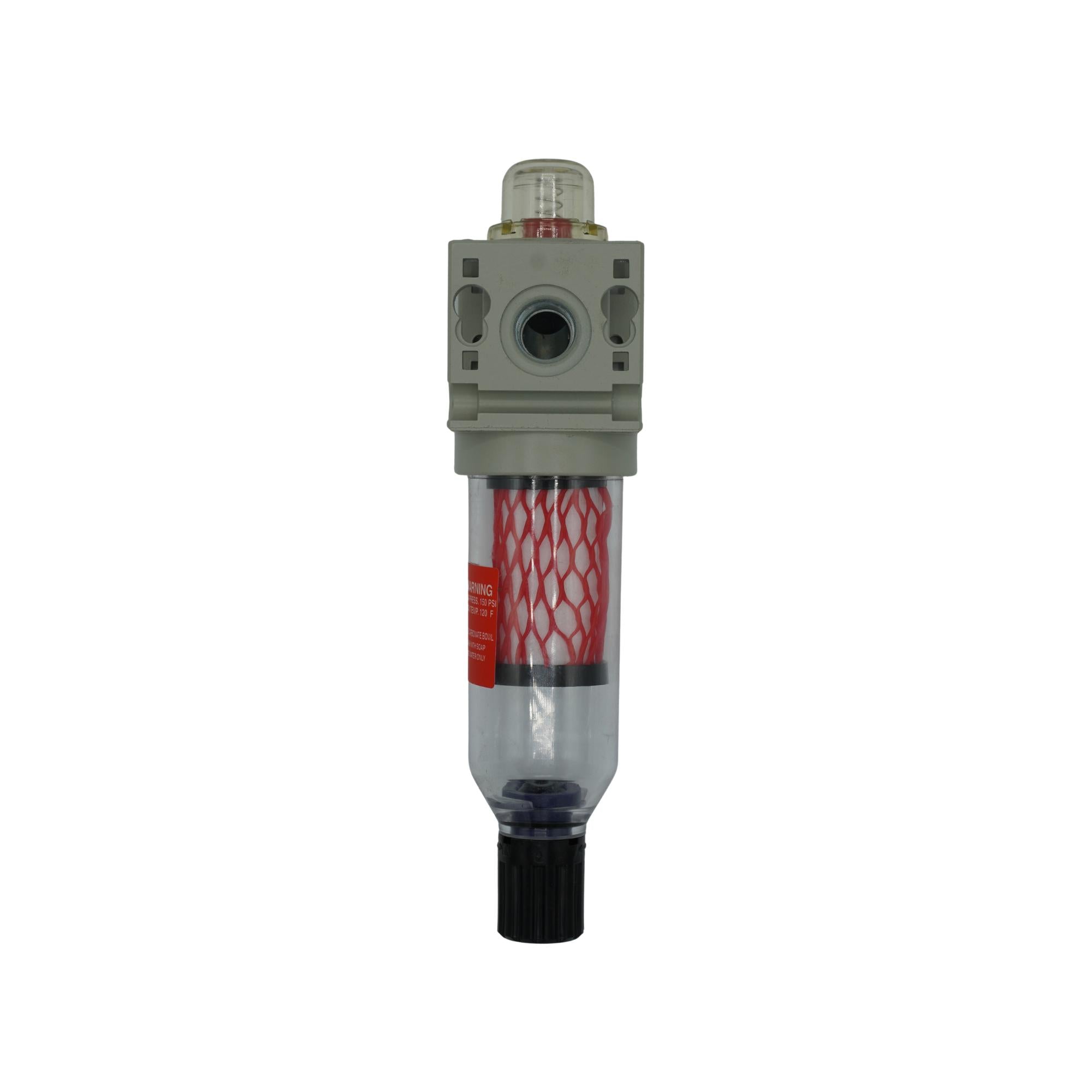

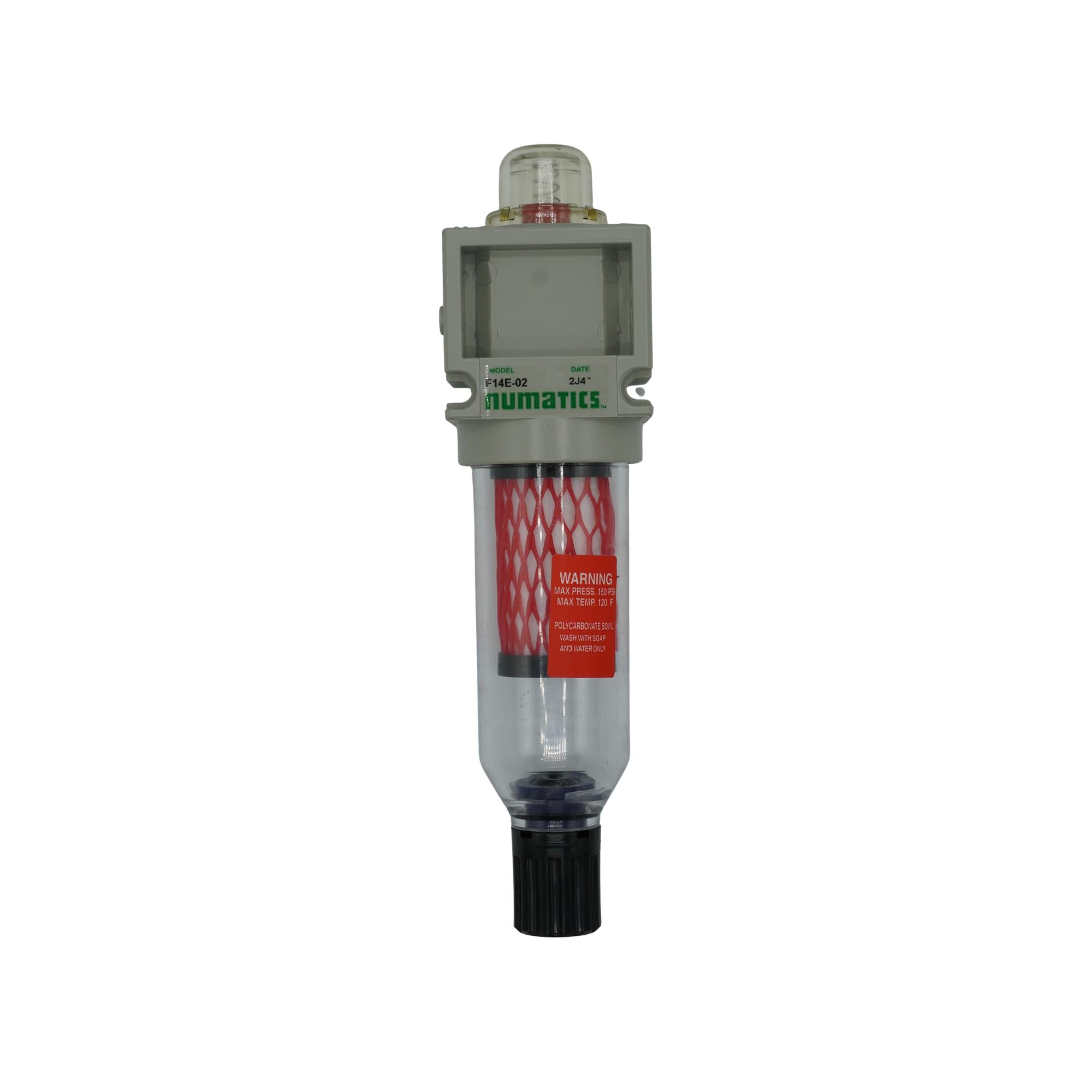

High-efficiency 1/4" coalescing air filter F14E-02 with 0.01 micron filtration for clean, dry compressed air in industrial and automation systems.
Key Features:
• FlexiBlok Series “14” coalescing filter (FRL accessory)
• Ultra-fine 0.01 micron coalescing element
• 1.5 oz (≈45 ml) metal bowl with sight glass, optional auto drain functionality
• 1/4″ NPTF threaded inlet/outlet ports
• Rated flow: approx. 12 SCFM (340 L/min), pressure rating up to 150 PSIG (10 bar)
• Operating temperature range roughly +4 °C to +50 °C (+40 °F to +120 °F)

Common Applications:
• Precision air preparation in pneumatic systems
• Removal of oil aerosol and sub-micron particulates to protect valves, actuators, and instrumentation
• Ideal for OEM panels and systems in automation, packaging, food & beverage, and pharmaceutical environments

Specification	Details
Model	F14E-02
Series	FlexiBlok 14 Series
Function	Coalescing Filter
Filtration Rating	0.01 micron (10 nm)
Bowl Capacity	1.5 oz (≈45 ml)
Bowl Material	Metal with sight glass
Port Size	1/4" NPTF
Flow Capacity	Approx. 12 SCFM (≈340 L/min)
Pressure Rating	Up to 150 PSIG (10 bar)
Operating Temperature	+4 °C to +50 °C (40 °F to 120 °F)
Drain Option	Manual or optional automatic drain
Applications	Precision air preparation, OEM panels, packaging, food & beverage, pharmaceutical, and automation systems
