| Main function | Filter (Air) |
| Product series / family name | Air Preparation - Modular Air Preparation |
| Sub-range name | 651 series |

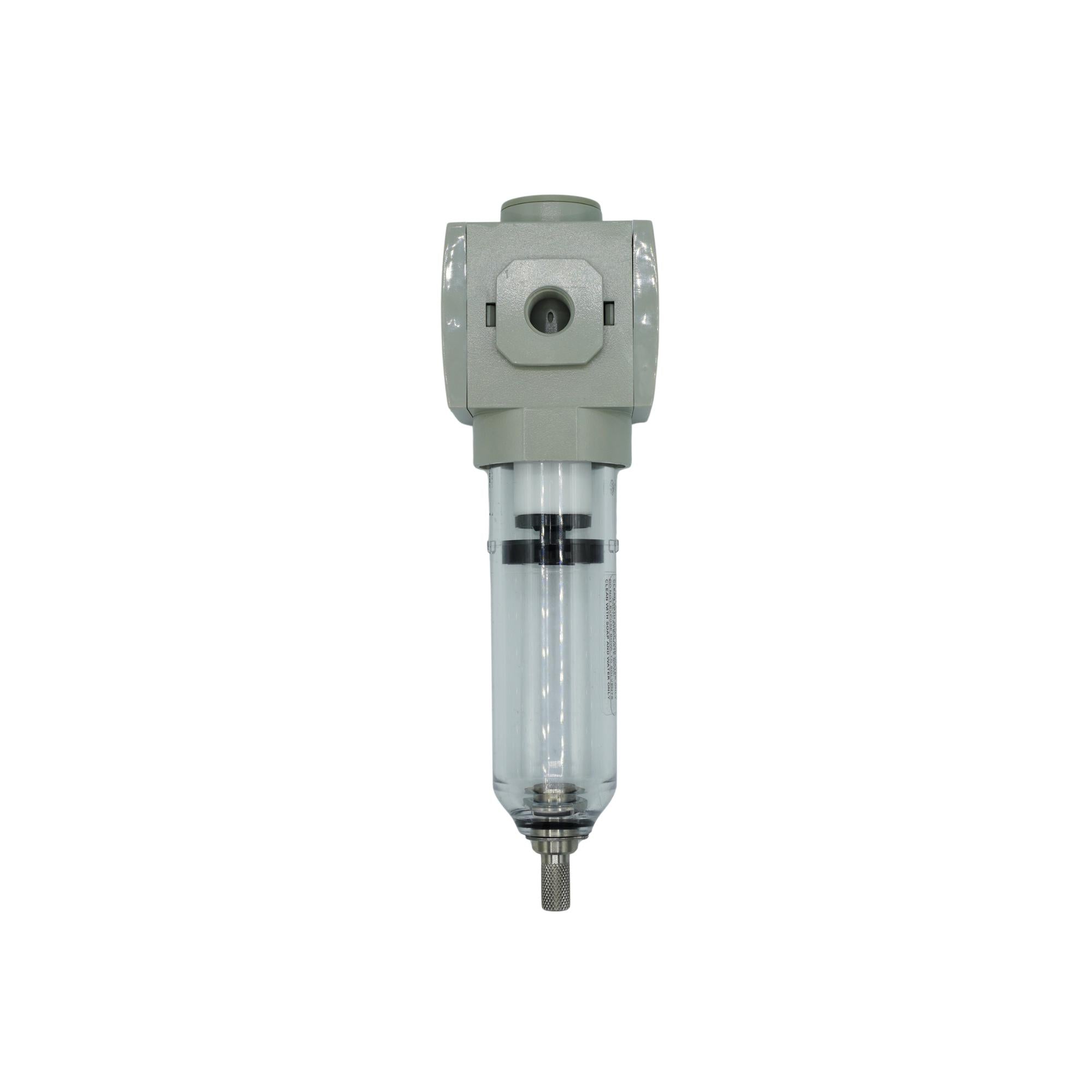

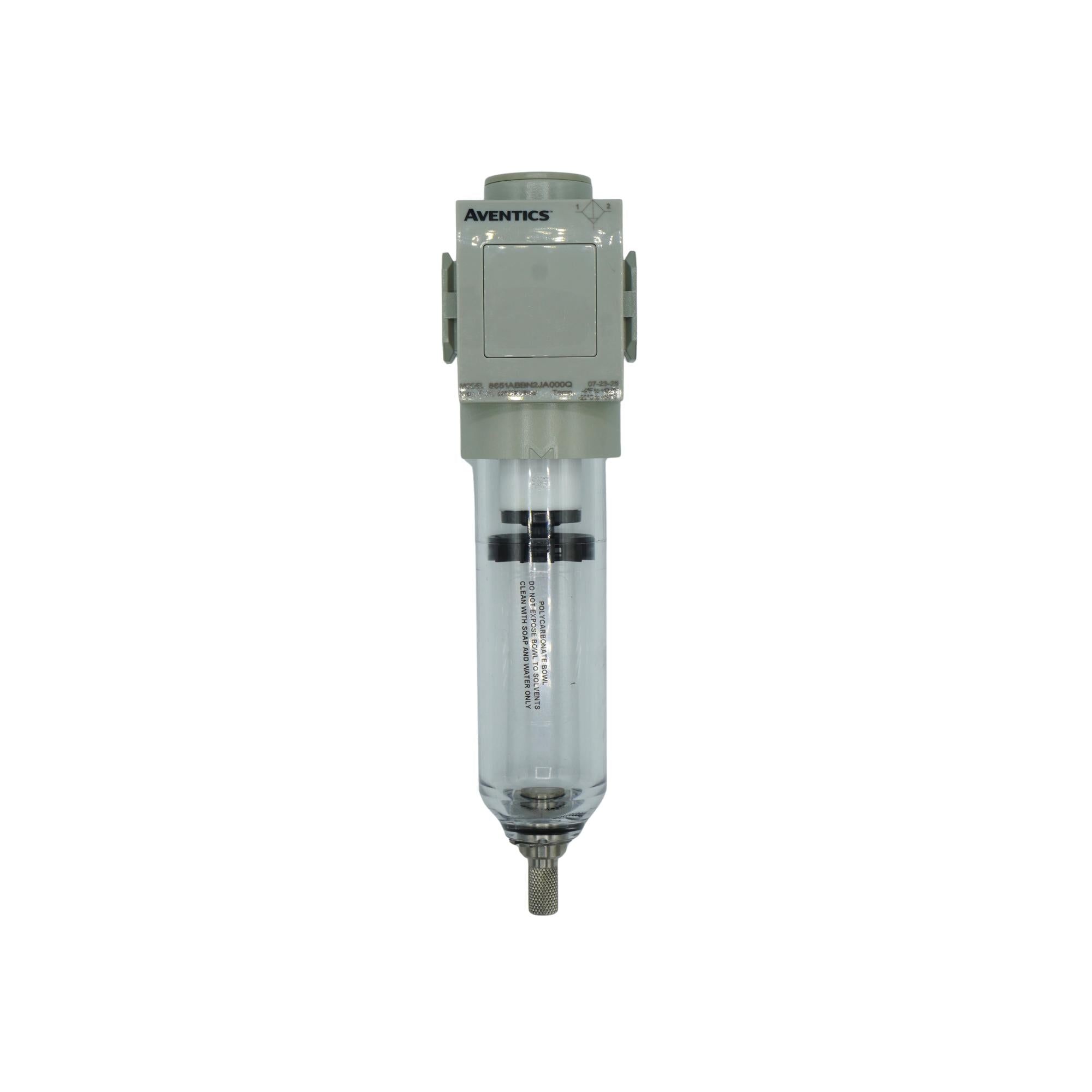

| Functions | Particulate filter assembly |
| Design |
5μm (5micron) white element
polycarbonate bowl stainless steel manual drain air purity class according to ISO8573-1/2010 [5;8;4] for air / insert gas |
| Flow | 44.1SCFM (1250L/min (LPM) ANR) |
| Pressure | 0...+232psig max inlet pressure 0...+16bar max inlet pressure |
| Temperature | -4°F...+122°F / -20°C...+50°C (fluid) |
| Connection type | 1/4" NPTF threaded port |
| Length |
197mm
|
|
Net Width (mm)
|
50 mm |
|
Mounting mode
|
Individual / modular unit
|
| Material | Aluminum body housing NBR seal Polycarbonate bowl Sintered Polyethylene filter element |
| Ambient air temperature for operation |
-4°F...+122°F / -20°C...+50 °C
|
|
Compliant with standard(s)
|
ISO8573-1 ISO6358 |
ID #: 150346
