VacMotion Product Catalog

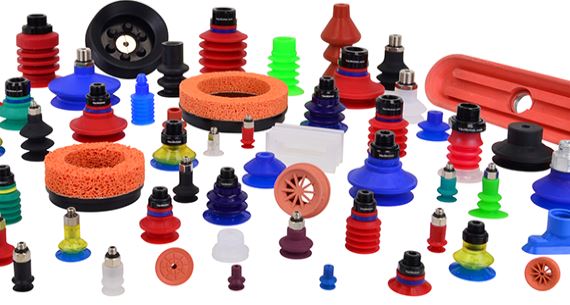

Material Handling Suction Cups
- Flat low profile cups
- Single bellows
- Multiple bellows
- Oval and rectangular shapes
- Dual durometer Polyurethane
- Foam seal cups
Materials Available
- NBR - Nitrile Butadiene Rubber
- SIT - FDA Translucent Silicone
- HNBR - Hydrogenated NBR
- NR - Natural Rubber
- VIT - Viton
- SIR - Red Silicone
- Polyurethane
- Dual Durometer Polyurethane
Multi-Stage and Single Stage Venturi Vacuum Generators
- No moving parts – Maintenance free
- Anodized aluminum construction
- Vacuum levels up to -27 inHg
- Vacuum flow from 0.10 scfm to 440 scfm
Available Models:
- Single Stage
- Mini Multi-Stage
- Plastic In-Line
- Cartridge Style Multi-Stage
Vacuum Filters and In-Line Strainers
- Filters dust and small particles from vacuum flow
- Replaceable porous plastic 10-micron filter elements
- 1/8” to 1-1/2” NPT or BSP threads
Spring Level Compensators
- Offers a soft touch ensuring all cups contact parts being handled.
- Ideal for large objects with multiple vacuum cups.
Vacuum Switches and Sensors
- Used for signal generation when specific vacuum levels are reached for safety, cycle start, and part presence detection.
Porous Plastic Mufflers
- Reduce air blast noise from exhaust ports.
- Non-clogging “free-flow” style available.
VacMotion Vacuum Generators
| Model | Air Consumption SCFM | Vacuum Flow SCFM | Vacuum Level "Hg | Operating Pressure PSI |
|---|---|---|---|---|
| SSV3-120H | 1.80 | 1.20 | 27 | 80 |
| SSV3-150H | 2.90 | 1.50 | 27 | 80 |
| SSV3-280H | 4.70 | 2.80 | 27 | 80 |
| SSV3-140M | 1.30 | 1.40 | 20 | 80 |
| SSV3-210M | 1.90 | 2.10 | 20 | 80 |
| SSV3-320M | 2.80 | 3.20 | 20 | 80 |
| SSV4-450H | 7.70 | 4.50 | 27 | 80 |
| SSV4-530M | 5.30 | 4.80 | 20 | 80 |
Note: These models are available with NPT-G Thread.
SSV Series Vacuum Generator
Single Stage, rectangular design, cartridge style venturi, no moving parts
Key Features
- Single stage - No moving parts
- Dual Stage - High vacuum flow
- Vacuum up to 27.5”Hg
- Inline mounting
- Economical design
- Low air consumption
- Sensor port standard
- Silencer included
DSV Series Vacuum Generator
Dual Stage, high flow, rectangular design
| Model | Air Consumption SCFM | Vacuum Flow SCFM | Vacuum Level "Hg | Operating Pressure PSI |
|---|---|---|---|---|
| DSV-195 | 0.99 | 1.94 | 26.4 | 80 |
| DSV-255 | 1.77 | 2.57 | 26.5 | 80 |
| DSV-325 | 1.77 | 3.25 | 26 | 80 |
| DSV-415 | 2.93 | 4.13 | 25.7 | 80 |
| DSV-470 | 3.99 | 4.70 | 26.8 | 80 |
Note: These models are available with G Thread.
VacMotion Vacuum Generators with Valve Control
Single and Dual Stage for high flow with high-speed valves and adjustable blowoff
| Model | Air Consumption SCFM | Vacuum Flow SCFM | Vacuum Level "Hg | Operating Pressure PSI |
|---|---|---|---|---|
| SSV-100DV | 1.60 | 1.00 | 26.5 | 80 |
| SSV-110DV | 1.60 | 1.10 | 26 | 80 |
| SSV-150DV | 3.20 | 1.50 | 27 | 80 |
| SSV-220DV | 5.90 | 2.20 | 27 | 80 |
| SSV-515DV | 6.00 | 5.00 | 27 | 80 |
Note: These models are available with G Thread.
VacMotion Variable Vacuum Pumps
AVP Series
No moving parts, dirt and dust tolerant, anodized aluminum
| Model | Vacuum Flow SCFM | Vacuum Level "Hg | Operating Pressure PSI | Air Consumption SCFM |
|---|---|---|---|---|
| AVP25 | 10 | 25 | 12 | 80 |
| AVP38 | 30 | 25 | 29 | 80 |
| AVP50 | 60 | 25 | 45 | 80 |
| AVP75 | 120 | 25 | 90 | 80 |
Material Transfer Pumps (MT Series)
Low operating costs, quick response, no electricity required
| Model | Vacuum Flow SCFM | Vacuum Level "Hg | Air Consumption SCFM (80 PSI) | Air Velocity FT/S |
|---|---|---|---|---|
| MT23 | 10 | 8 | 6 | 485 |
| MT33 | 15 | 5 | 10 | 328 |
| MT56 | 30 | 9 | 16.5 | 361 |
| MT76 | 65 | 9 | 48 | 325 |
| MT106 | 155 | 6 | 48 | 223 |
| MT156 | 198 | 2.5 | 50 | 270 |
