Mfr. Part #: 649.000.01
ID #: 193888

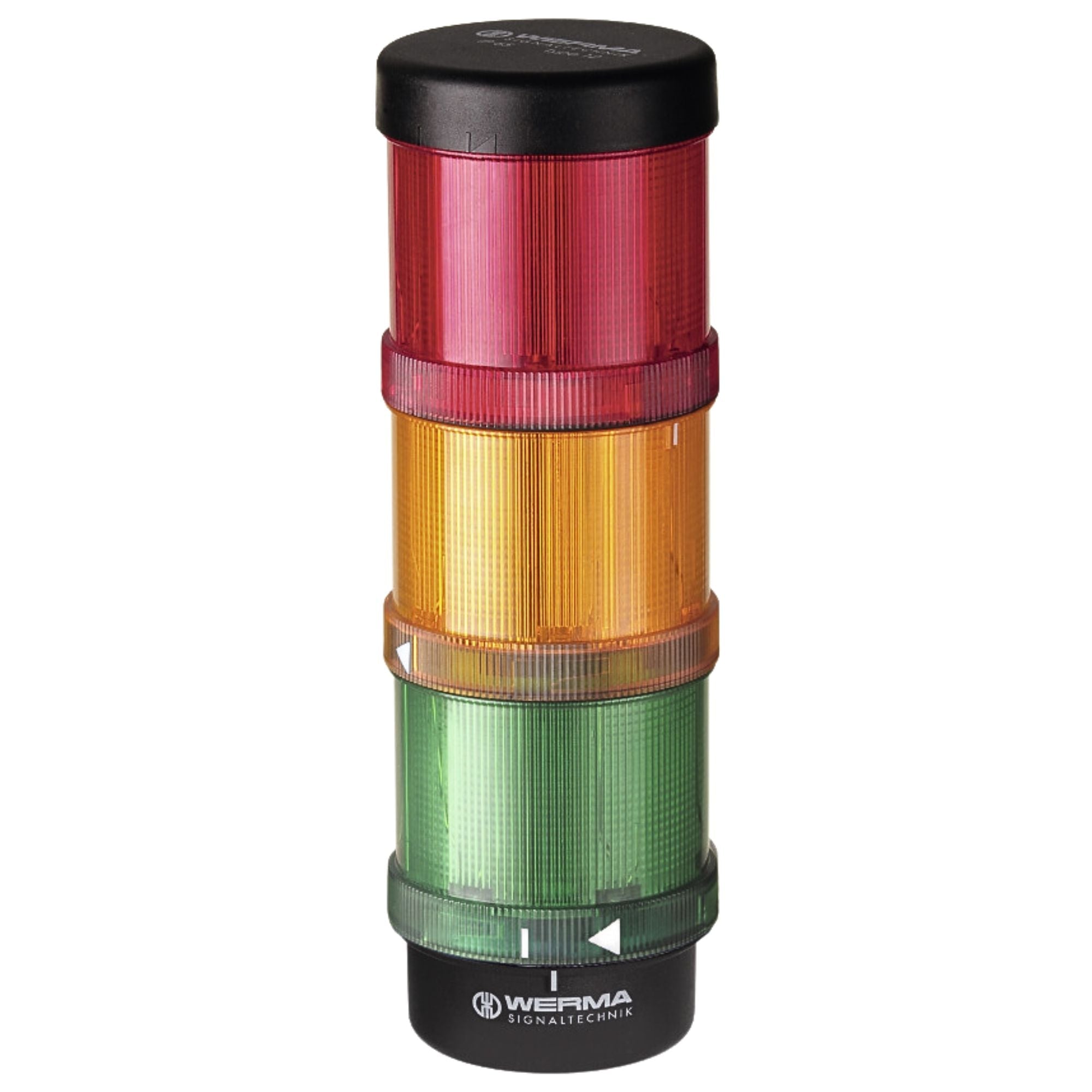

WERMA Signal Tower KS72 Classic BWM 24V AC/DC G/Y/R; IP65; 70 mm
| Series: | KombiSIGN 72 |
|---|---|
| Diameter in mm: | 70 mm |
| Voltage: | 24V AC/DC |
| Signal effect: | Permanent |
| Light color: | Green Red Yellow |
| Protection rating: | IP65 |
| Fixing: | Base mounting, Wall mounting |
| Height | 212 mm |
| Diameter | 70 mm |
| Materials | PA-GF PC |
| Dome color | Green Red Yellow |
| Housing color | Black |
| Protection category | IP65 |
| Connection | Spring-type terminal |
| cross-sectional area minimum | 0,25mm² / 24AWG |
| cross-sectional area maximum | 1,50mm² / 16AWG |
| Cable entry | Through hole |
| Cable entry maximum | d = 11 mm |
| Tension relief | Not present |
| Type of fixing | Base mounting Wall mounting |
| Working temperature minimum | -20°C |
| Working temperature maximum | +50°C |
| Weight with packaging | 367 g |
| Product weight | 309 g |
| Operating voltage | 24V |
| Operating voltage type | AC/DC |
| Operating voltage frequency | 50Hz |
| Operating voltage tolerance | +/- 10% |
| Rated operational voltage | 24 VDC |
| Rated operational current | 240 mA |
| Rated inrush current | <500mA |
| Protection class | Protection class 2 |
| Light source | LED |
| Light color | Green Red Yellow |
| Optical signal image | Permanent |
| Blink frequency | 1 Hz |
| Service life optical | 50,000 h maximum |
| Conforms with CE | Yes (through the components) |
| WEEE | Yes |
