Mfr. Part #: 240.420.55
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 193309

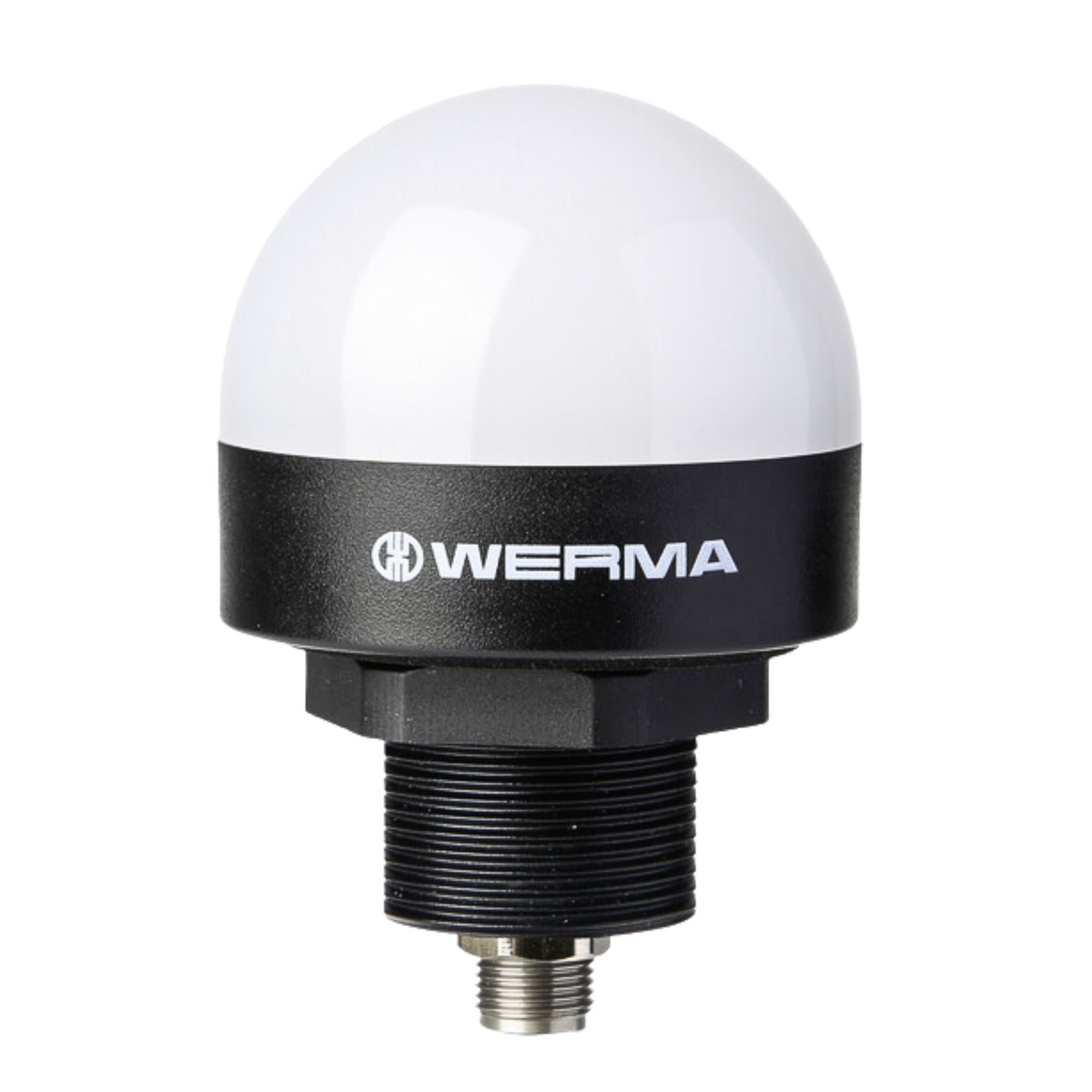

WERMA MC55 UL LED Beacon 24V RGY M12; IP69K
| Voltage: | 24V DC |
|---|---|
| Signal effect: | Permanent |
| Light color: | MC 3 colors |
| Fixing: | Built-in mounting |
| Diameter in mm: | 55 mm |
| Height in mm: | 71 mm |
| Protection rating: | IP69K |
| Dome colour | Tranclucent |
| Housing colour | Black |
| Protection category | IP69K |
| Connection | M12 plug 5-pole |
| Type of fixing | Built-in mounting |
| Working temperature minimum | -20°C |
| Working temperature maximum | +50°C |
| Weight with packaging | 91 g |
| Product weight | 64 g |
| Operating voltage | 24V |
| Operating voltage type | DC |
| Operating voltage tolerance | +/- 10% |
| Rated operational voltage | 24 VDC |
| Rated operational current | 40 mA |
| Rated inrush current | <150mA |
| Protection class | Protection class 2 |
| Light source | LED |
| Light colour | MC 3 colours |
| Optical signal image | Permanent |
| Service life optical | 50,000 h maximum |
| Conforms with CE | Yes |
| WEEE | Yes |
| Conforms with CCC | No |
| Conforms with UL | cULus |
| UL Type Rating | Type 4X |
