Weintek | Faceless HMI with WiFi | cMT-SVR-200

1 in stock | Need More? >>

Weintek Faceless HMI with WiFi; 1 Ethernet Port, 1 USB Port, 1 Serial Port

Memory 256MB
SD Card Slot SD/SDHC
USB Host USB 2.0 x1
Ethernet 10/100/1000 Base-T x1
WiFi IEEE 802.11 b/g/n
COM Port

COM1: RS-232 2W

COM2: RS-485 2W/4W

COM3:RS-485 2W

RTC Built-in
Input power 10.5 ~28VDC
Power isolation Built-in
Power consumption 1000mA@12VDC; 450mA@24VDC
Voltage Resistance 500VAC (1 min)
Isolation Resistance Exceed 50m at 500VDC
Vibration Endurance 10 to 25Hz (X,Y,Z direction 2G 30 minutes)
PCB Coating Yes
Enclosure Plastic

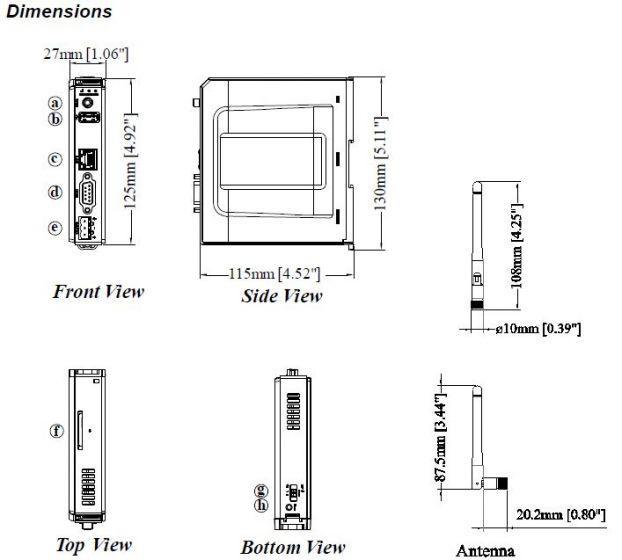

Dimensions 27 W x 130 H x 115 mm D
Weight .18kg
Mount 35mm DIN rail mounting
Protection structure IP20
Storage temperature -4 ~ 158 F
Operating temperature 14 ~ 131 F
Relative humidity 10% ~ 90% (non-condensing)

ID #: 177826
