Weidmuller | ZQV 2.5N/6 Terminal Block Jumper 2.5mm 6 Pole Orange | 1527630000

Name: Weidmuller | ZQV 2.5N/6 Terminal Block Jumper 2.5mm 6 Pole Orange | 1527630000
Brand: WEIDMULLER, INC
SKU: 1527630000
Price: 2.84 USD
Availability: InStock

Mfr. Part #: 1527630000

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 197362

Description
Features
Specifications
Resources

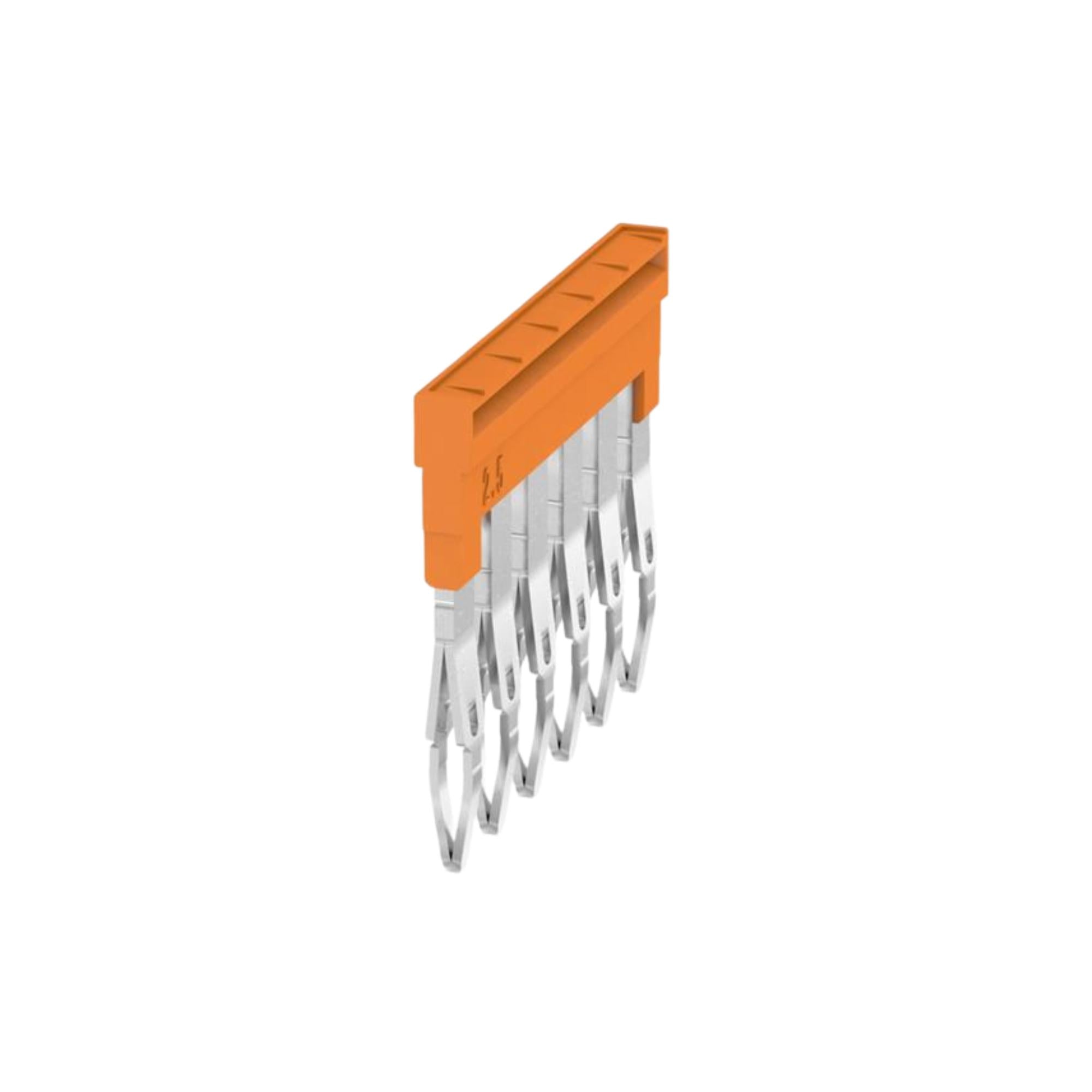

Weidmuller 1527630000 6‑pole plug-in terminal connector, 5.10 mm pitch, 24 A, 400 V, for DIN rail terminal blocks and industrial control panels.
Key Features:
• Plug‑in cross‑connector (terminal) from Weidmüller’s ZQV Series
• 6 poles with 5.10 mm pitch for standard terminal blocks
• Insulated orange body for safe installation
• Rated current up to 24 A and nominal voltage up to 400 V
• Compact dimensions ~28.3 mm width × 24.7 mm depth × 2.8 mm height
• Direct mounting with push‑in installation; UL 94 V‑0 flammability rating

Common Applications:
• Bridging adjacent terminals on DIN rail terminal block assemblies
• Potential distribution or signal transmission across terminal strips
• Electrical and control panels in industrial automation systems
• OEM equipment and modular wiring installations requiring reliable interconnects
• Signal and power bridging in industrial control cabinets

Specification	Details
Model	Weidmuller 1527630000
Type	Plug-in Cross Connector (Terminal)
Poles	6
Pitch	5.10 mm
Rated Current	24 A
Rated Voltage	400 V
Material / Insulation	Orange insulated body, UL 94 V‑0
Mounting	Push-in on DIN rail terminal blocks
Dimensions (approx.)	28.3 mm W × 24.7 mm D × 2.8 mm H
Applications	Bridging terminals, industrial control panels, OEM wiring, signal and power distribution
