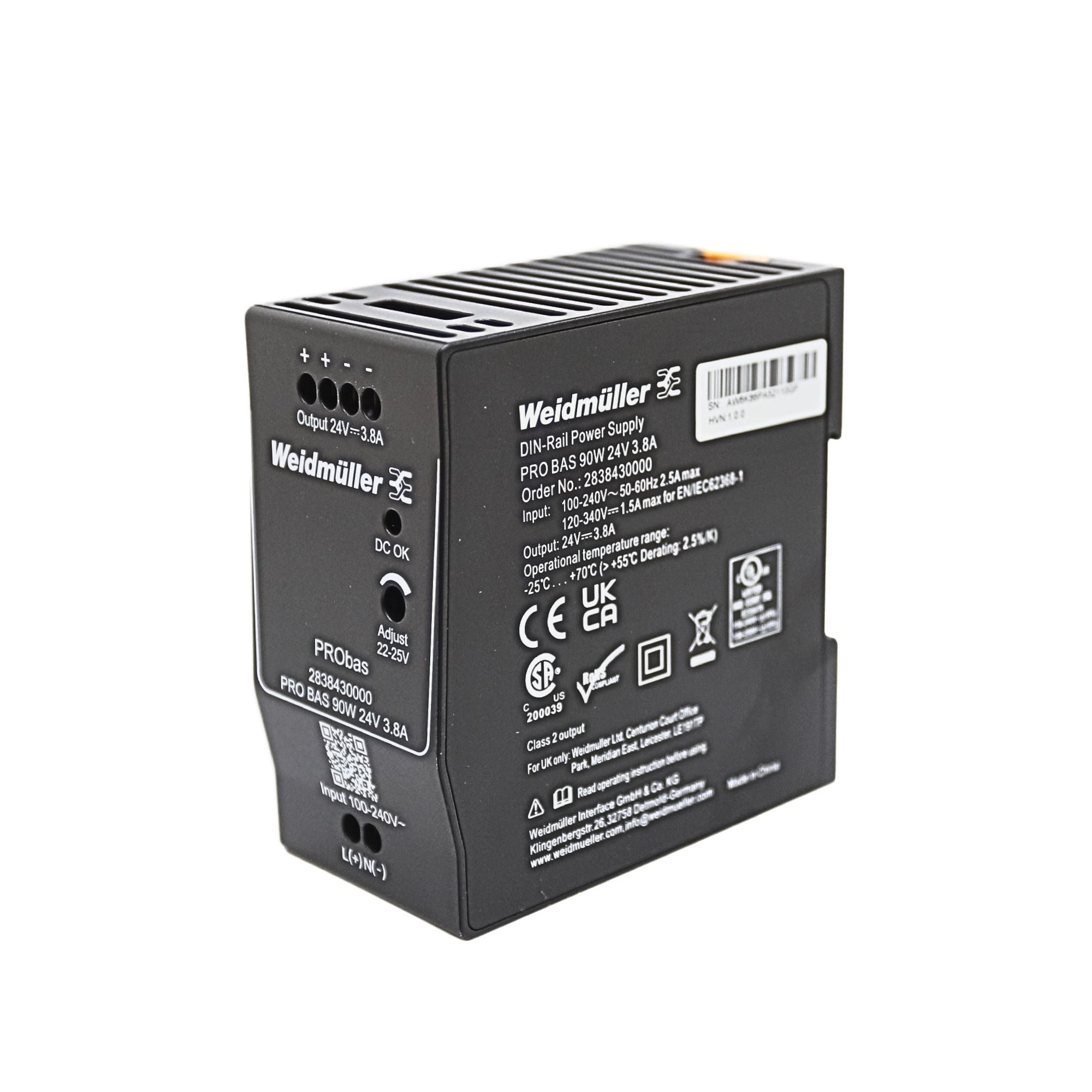

Weidmuller PRO BAS 90W 24V 3.8A; Power supply, switch-mode power supply unit, 24V; (2838430000)
High performance, compact design and a good price-performance ratio are the main characteristics of the new PRObas power supplies. The product family comprises 12 variants with 5, 12, 24 or 48 V DC output voltage and a wide-range input. All units have comprehensive safety functions and are internationally approved. Due to compatibility with our electronic fuses, DC UPS and diode modules, they are also suitable for setting up power management systems.
| Depth | 85 mm |
| Depth (inches) | 3.346 inch |
| Height | 90 mm |
| Height (inches) | 3.543 inch |
| Width | 47 mm |
| Width (inches) | 1.85 inch |
| Net weight | 376 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| AC input voltage range | 85...264 V AC (derating at 100 V AC) |
| Connection system | Screw connection |
| Capacitive load | 5.5mF |
| Connection system | Screw connection |
| Continous output current @ UNominal | 3.8 A @ 55 °C, 2.375 A @ 70°C |
| Nominal output current for Unom | 3.8 A @ 55 °C |
| Output power | 90 W |
| Output voltage, max. | 25 V |
| Output voltage, min. | 22 V |
| Overload protection | Yes |
| Parallel connection option | yes, max. 3 |
| Protection against inverse voltage | Yes |
| Rated output voltage | 24 V DC |
| Residual ripple, breaking spikes | ≤ 50 mVpp @ full load |
| Wire connection method | Screw connection |
ID #: 192593
