Weidmuller | PRO BAS 30W 12V 2.6A Power Supply | 2838400000

1 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.
Quantity Discount Part Price
1-4 0.0 % $54.15
5-24 Contact us for a quote $51.44
>= 25 Contact us for a quote $48.74

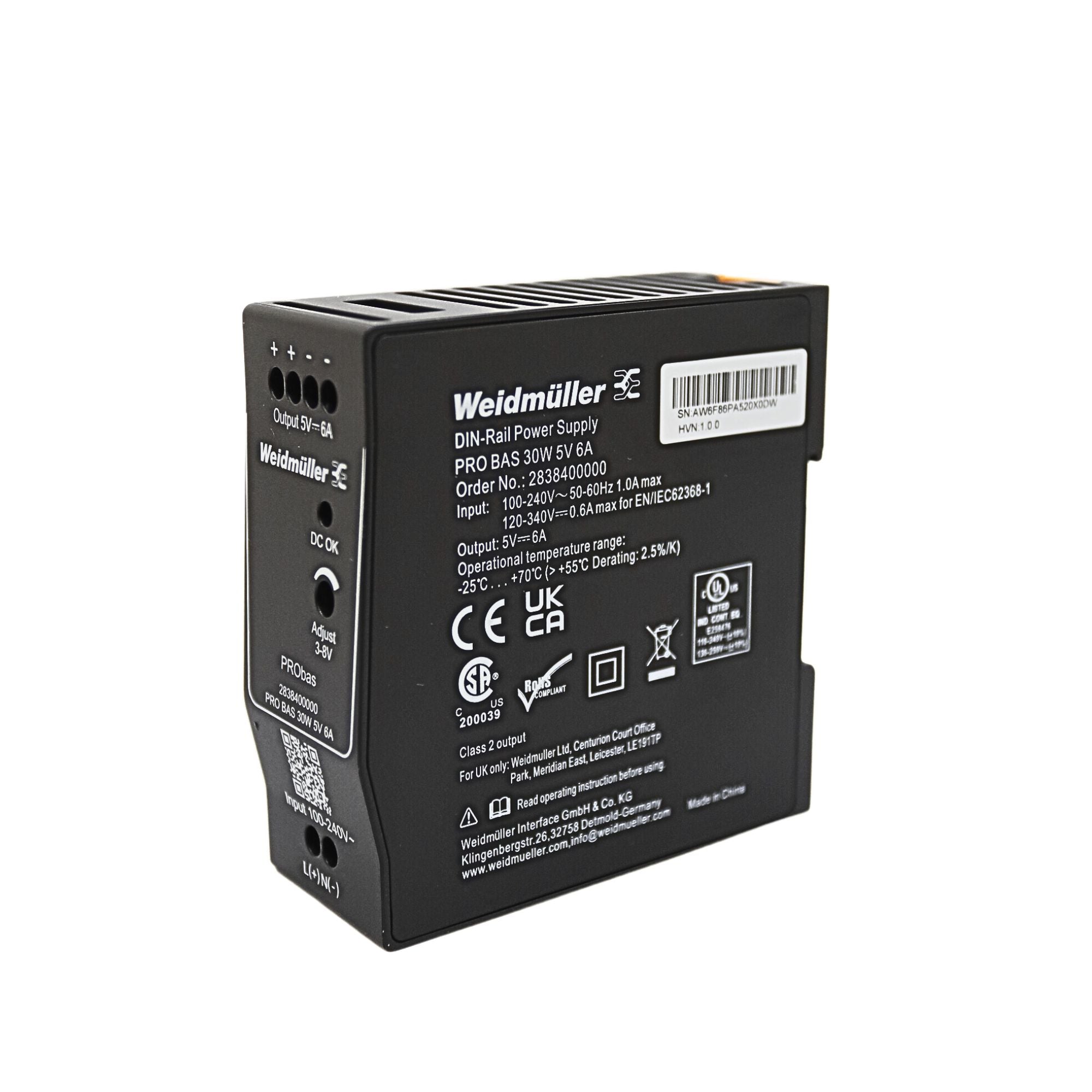

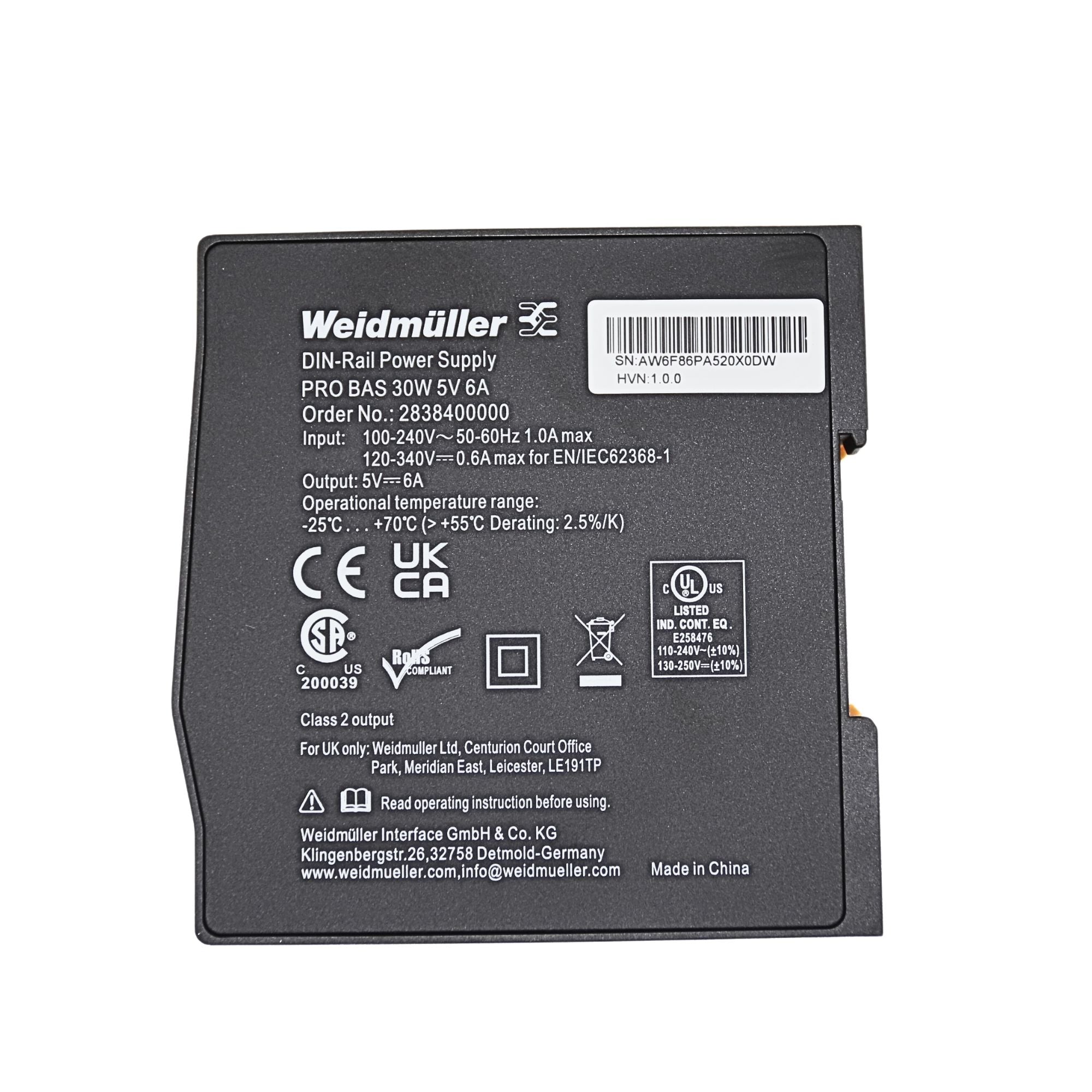

Weidmuller PRO BAS 30W 5V 6A; Power supply, switch-mode power supply unit, 5 V; (2838400000)

High performance, compact design and a good price-performance ratio are the main characteristics of the new PRObas power supplies. The product family comprises 12 variants with 5, 12, 24 or 48 V DC output voltage and a wide-range input. All units have comprehensive safety functions and are internationally approved. Due to compatibility with our electronic fuses, DC UPS and diode modules, they are also suitable for setting up power management systems.

AC failure bridging time @ Inom > 80 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency 87% @ 230 V AC
Earth leakage current, max. 3.5 mA
Housing version Plastic, protective insulation
Humidity 5…95 % rel. humidity, no condensation
MTBF
According to Standard SN 29500
Operating time (hours), min. 1,895,000 h
Ambient temperature 40 °C
Input voltage 230 V
Output power 30 W
Duty cycle 100 %
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Power factor (approx.) 0.45 @ 120 V AC, 0.45 @ 230 V AC
Power loss, idling 0.5 W
Power loss, nominal load 3.9 W
Protection against over-heating Yes
Protection degree IP20
Short-circuit protection Yes
Start-up ≥ -40 °C
Status indication Green LED

ID #: 192842
