$2.08

Weidmuller | FM 5/TS35 Accessories, Mounting foot, Steel, bright finish. Din rail mount clip with 5mm thread. (packs of 40) | 0636800000

Name: Weidmuller | FM 5/TS35 Accessories, Mounting foot, Steel, bright finish. Din rail mount clip with 5mm thread. (packs of 40) | 0636800000
Brand: WEIDMULLER, INC
SKU: 0636800000
Price: 2.08 USD
Availability: InStock

Mfr. Part #: 0636800000

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

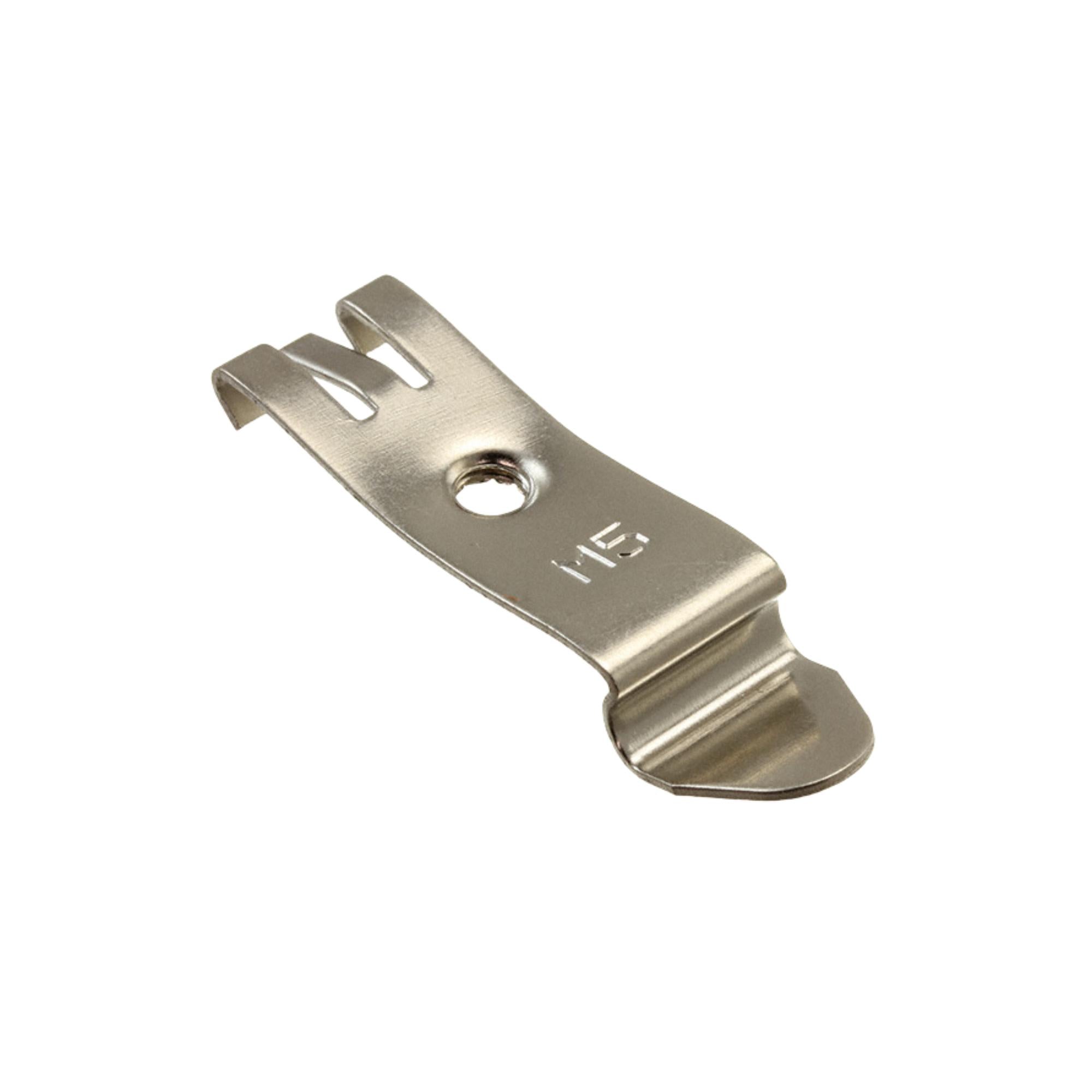

Weidmuller 0636800000DIN-rail mounting foot, M5 threaded, nickel-plated steel, for FM series terminal blocks in industrial control panels.

Key Features:
• Mounting foot accessory for DIN‑rail terminal blocks in the FM Series
• Snap‑on design for fast installation on TS 35 mounting rails
• Steel construction with bright nickel‑plated finish
• M5 threaded hole for secure component attachment
• Compact footprint: ~14 mm width, ~50.2 mm height, ~7 mm depth
• RoHS compliant

Common Applications:
• Supporting and elevating terminal blocks on DIN rail assemblies
• Electrical control panels and enclosure installations
• General industrial automation and signal distribution frames
• OEM chassis requiring reliable rail‑mounted block support

Specification	Details
Model	Weidmuller 1527630000
Type	Plug-in Cross Connector (Terminal)
Poles	6
Pitch	5.10 mm
Rated Current	24 A
Rated Voltage	400 V
Material / Insulation	Orange insulated body, UL 94 V‑0
Mounting	Push-in on DIN rail terminal blocks
Dimensions (approx.)	28.3 mm W × 24.7 mm D × 2.8 mm H
Applications	Bridging terminals, industrial control panels, OEM wiring, signal and power distribution
