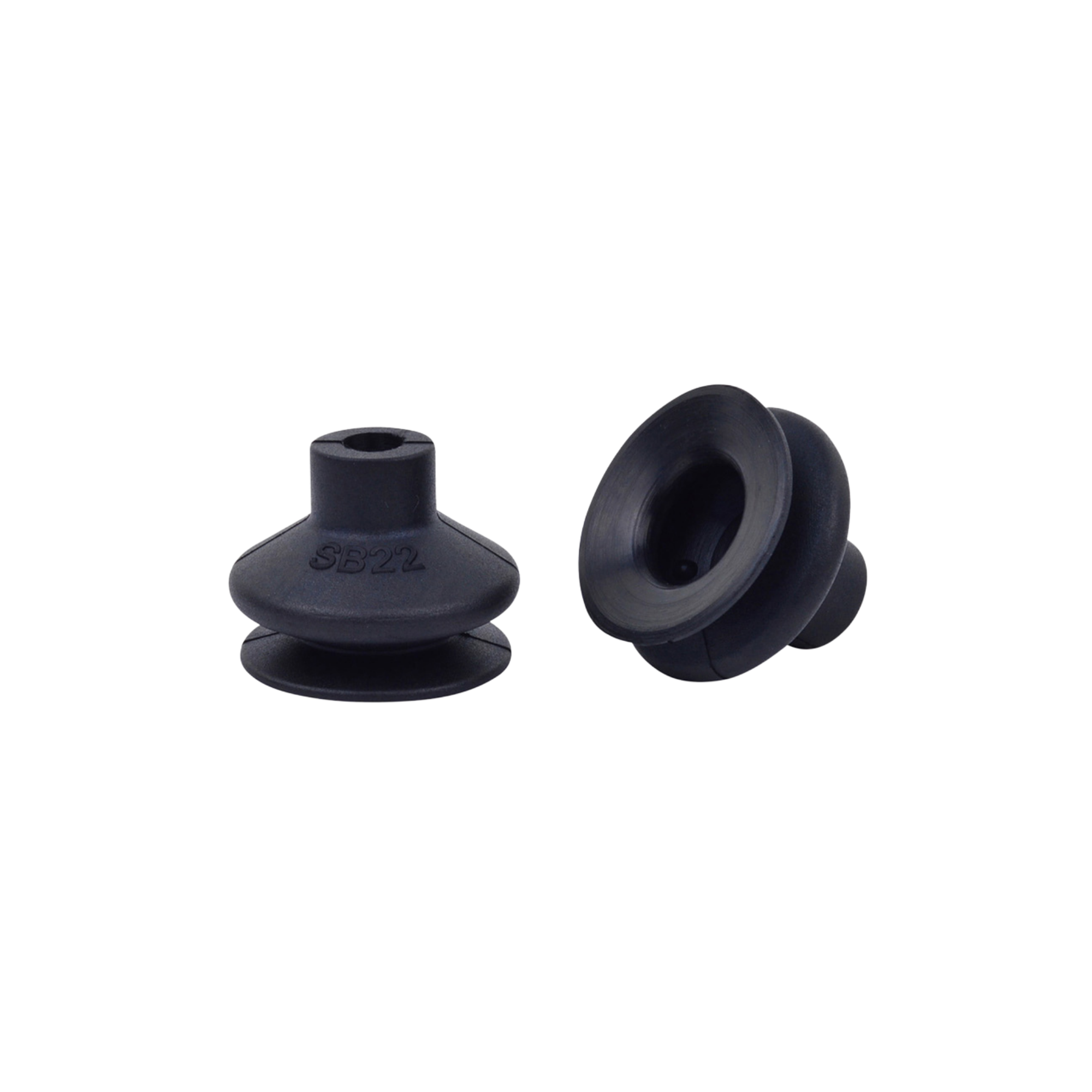

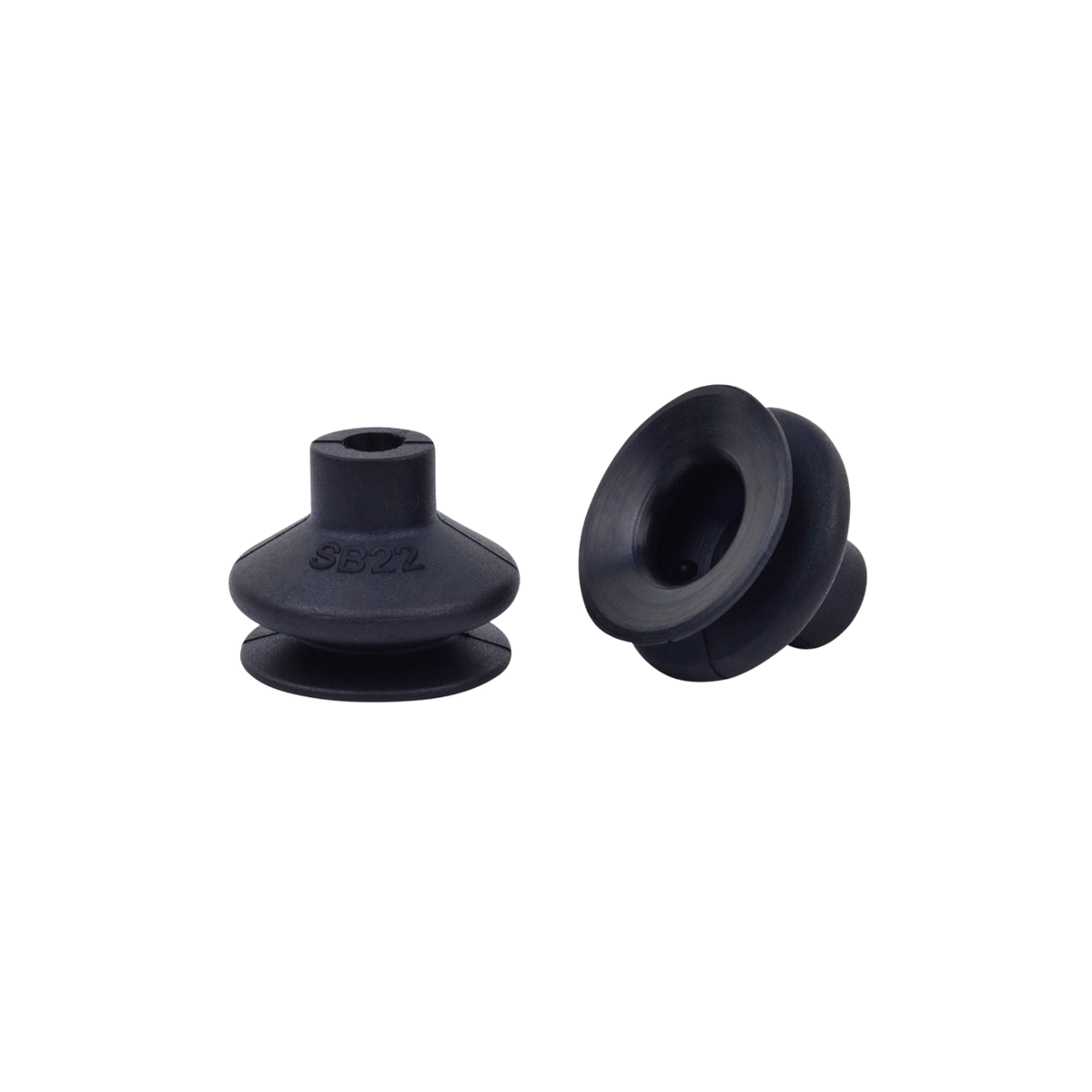

VacMotion | Single Bellows NBR Suction Cup 22mm | SB22-NBR

Mfr. Part #: SB22-NBR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 210440

22 mm, 1.5-bellows NBR suction cup designed for vacuum handling applications. The flexible bellows construction provides level compensation for uneven surfaces and varying product heights while also supplying a slight lifting movement for separating thin or stacked materials. NBR construction provides good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacements include B1.5-22-NBR, 5427A836, 5427A636, and 012219A. Compatible fittings include M5 male, G1/8" male, G1/8" female, 1/8" NPT female, and 10-32 barb fittings.
Feature Set
• 1.5-bellows design

• NBR rubber construction

• 22 mm diameter

• Height compensation

• Thin material separation

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

Specification	Details
Style	Bellows
Material	NBR
Outside Diameter	22.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Black
Weight	0.0061 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.70 lbs.
Vertical Lifting Capacity at 6 inHg	0.35 lbs.
Horizontal Lifting Capacity at 18 inHg	2.12 lbs.
Vertical Lifting Capacity at 18 inHg	1.06 lbs.
Horizontal Lifting Capacity at 27 inHg	3.18 lbs.
Vertical Lifting Capacity at 27 inHg	1.59 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
