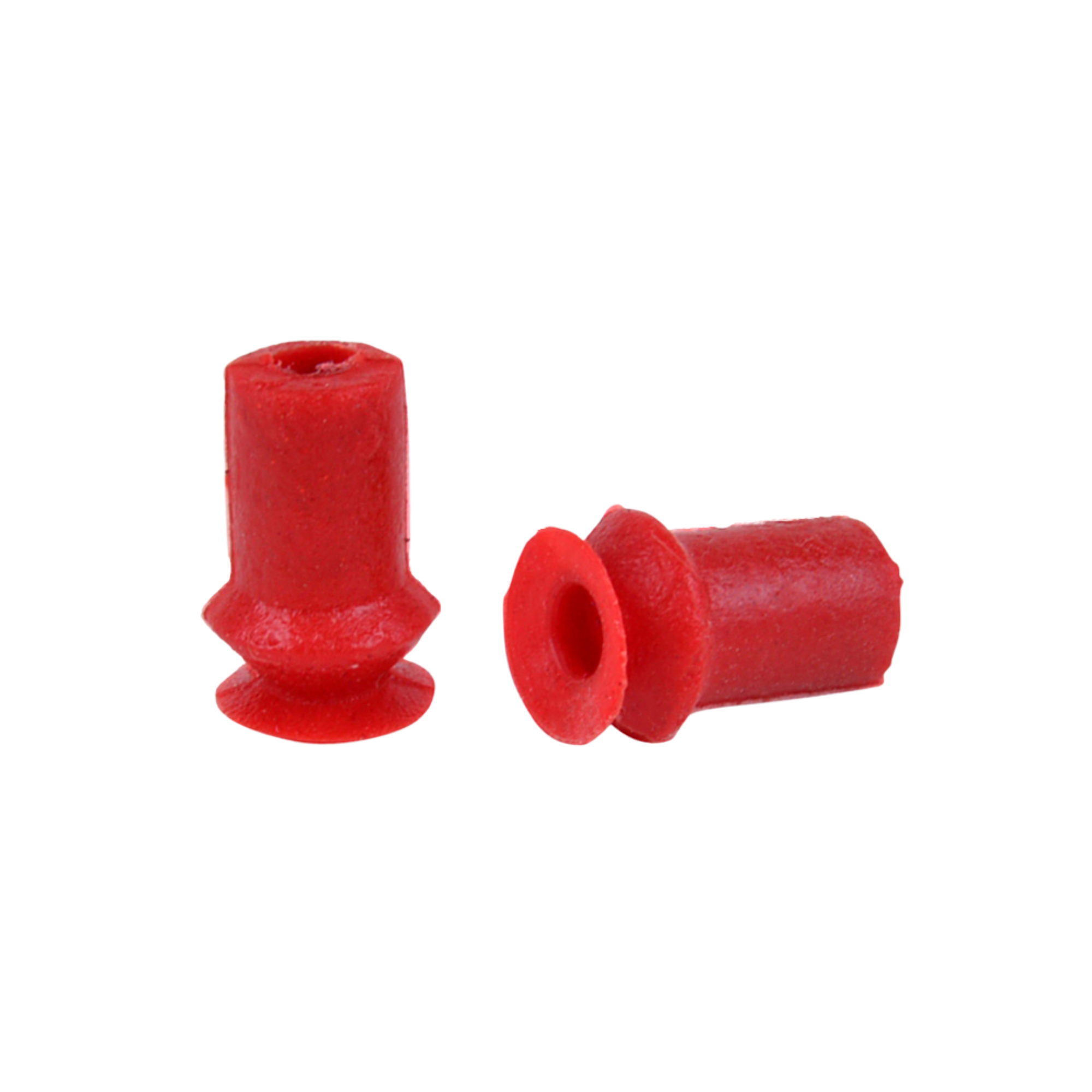

VacMotion | Silicone Suction Cup, 5.4mm Single Bellows, Red | PSB5-SIR

Mfr. Part #: PSB5-SIR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 214348

5.4 mm, 1.5-bellows silicone suction cup designed for small-part vacuum handling and pick-and-place applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacements include B5.20, VB5-S, 3150287S, XP-B5S, GSV B5 20, 1414, A-B5.20, VCR-B5P-RS, and 210.005.045.02R. Compatible fitting: M5 male barb fitting (400.006).
Feature Set
• 1.5-bellows design

• Silicone construction

• Compact 5.4 mm diameter

• Height compensation

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• M5 fitting compatible

Specification	Details
Style	Bellows
Material	Silicone
Outside Diameter	5.4 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Red
Weight	0.0004 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.04 lbs.
Vertical Lifting Capacity at 6 inHg	0.02 lbs.
Horizontal Lifting Capacity at 18 inHg	0.12 lbs.
Vertical Lifting Capacity at 18 inHg	0.06 lbs.
Horizontal Lifting Capacity at 27 inHg	0.19 lbs.
Vertical Lifting Capacity at 27 inHg	0.09 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
