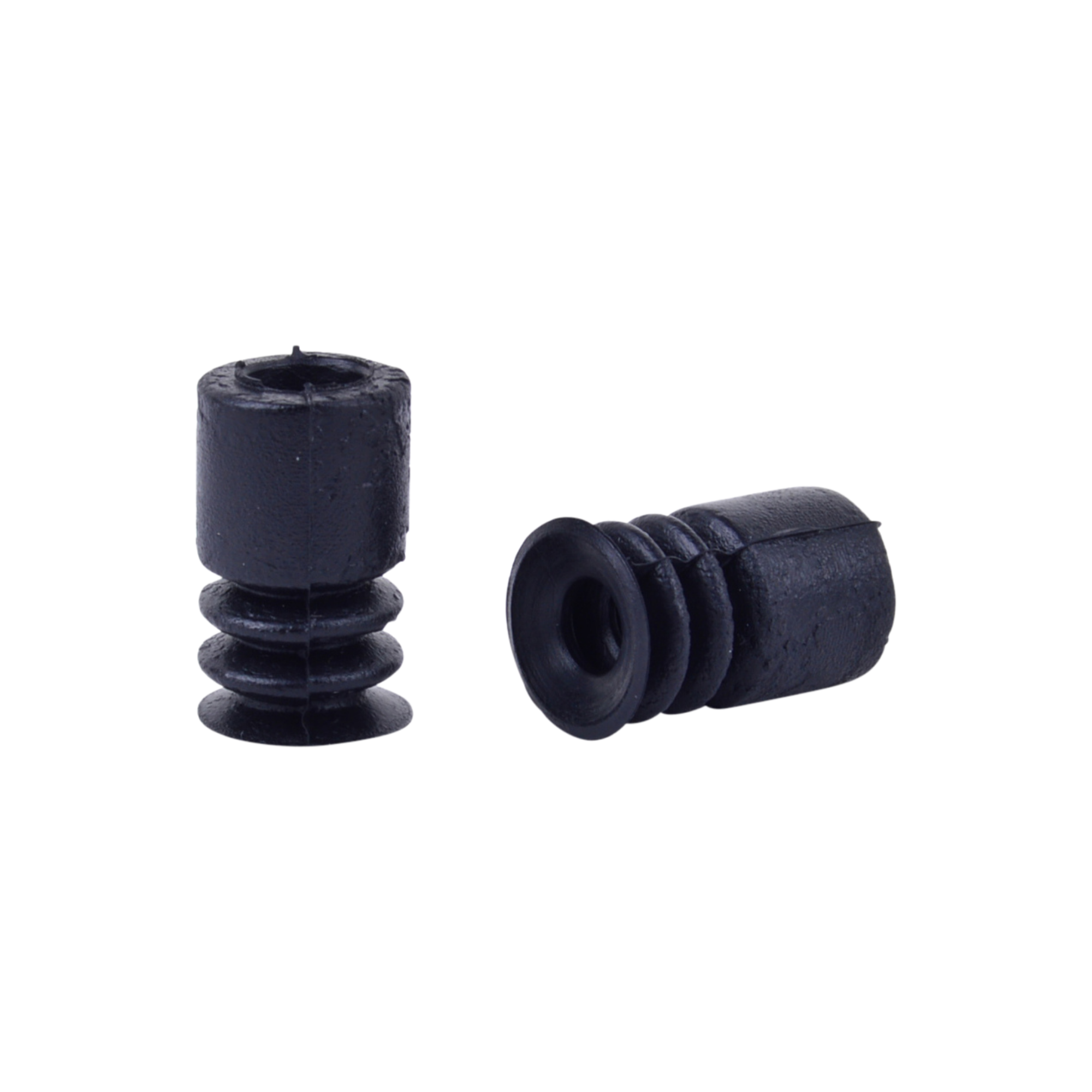

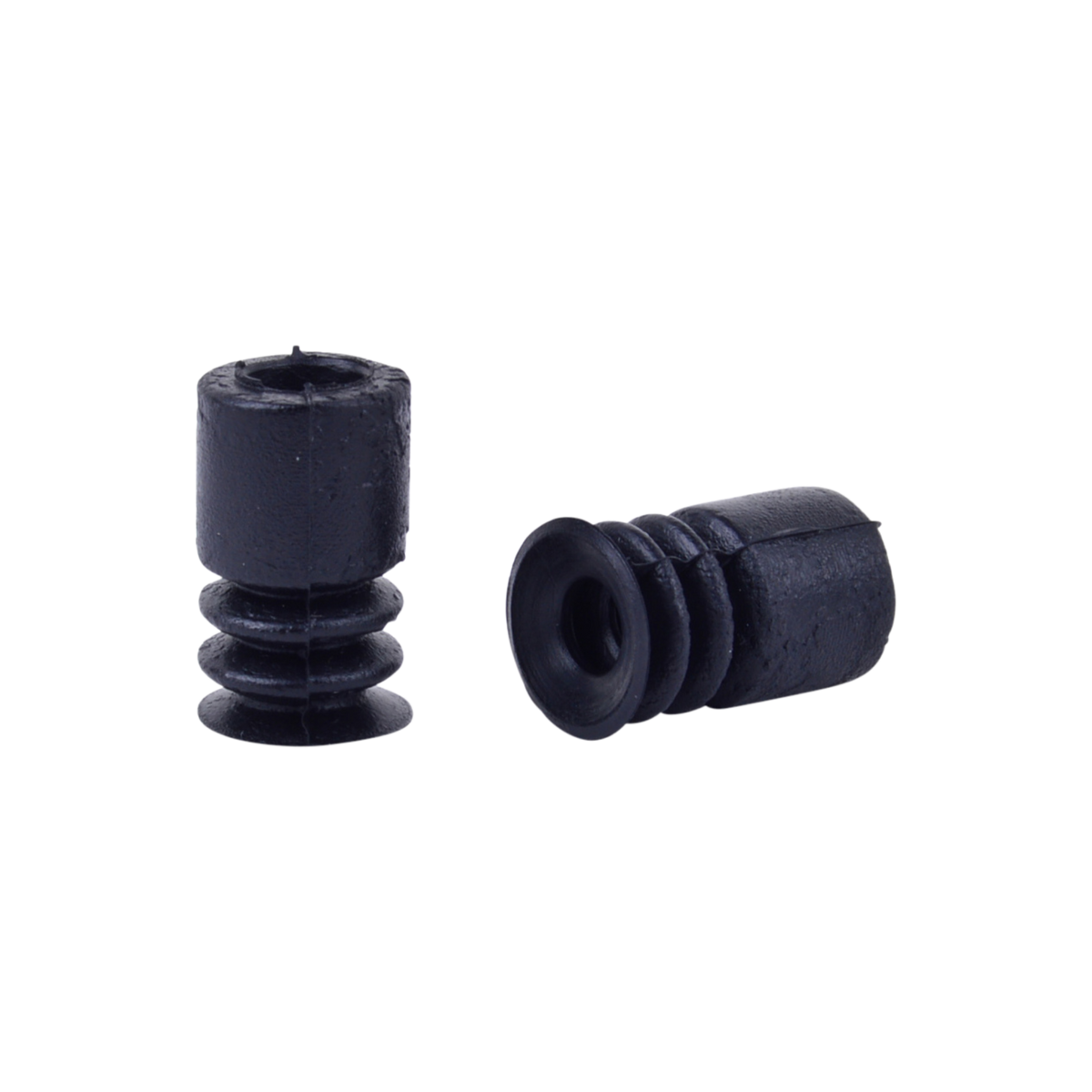

VacMotion | 9mm 2.5 bellows NBR suction cup | MB10-NBR

Mfr. Part #: MB10-NBR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222051

9 mm, 2.5-bellows NBR suction cup designed for vacuum handling applications where additional flexibility and height compensation are needed. The multi-bellows construction helps handle objects with varying shapes and height differences while providing lifting movement for separating thin materials. NBR offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacements include B2.5-9-NBR, FSG 9 NBR-55 M5-AG, 10.01.06.00023, PCTM-10-NBR-M5, and MB10-NBR-M5. Compatible fittings include M5 male (130.013C), G1/8" male (401.002), G1/8" female (401.026), 1/8" NPT female (401.025), and 10-32 barb (411.001).
Feature Set
• 2.5-bellows design

• NBR rubber construction

• Height compensation

• Thin material separation

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

Specification	Details
Style	Bellows
Material	NBR
Outside Diameter	9.0 mm
Bellows	2.5
Thread Size	None
Cleats	No
Color	Black
Weight	0.0018 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	0.11 lbs.
Vertical Lifting Capacity at 6 inHg	0.05 lbs.
Horizontal Lifting Capacity at 18 inHg	0.35 lbs.
Vertical Lifting Capacity at 18 inHg	0.17 lbs.
Horizontal Lifting Capacity at 27 inHg	0.53 lbs.
Vertical Lifting Capacity at 27 inHg	0.26 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
