Mfr. Part #: PSB8-NBR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 215835

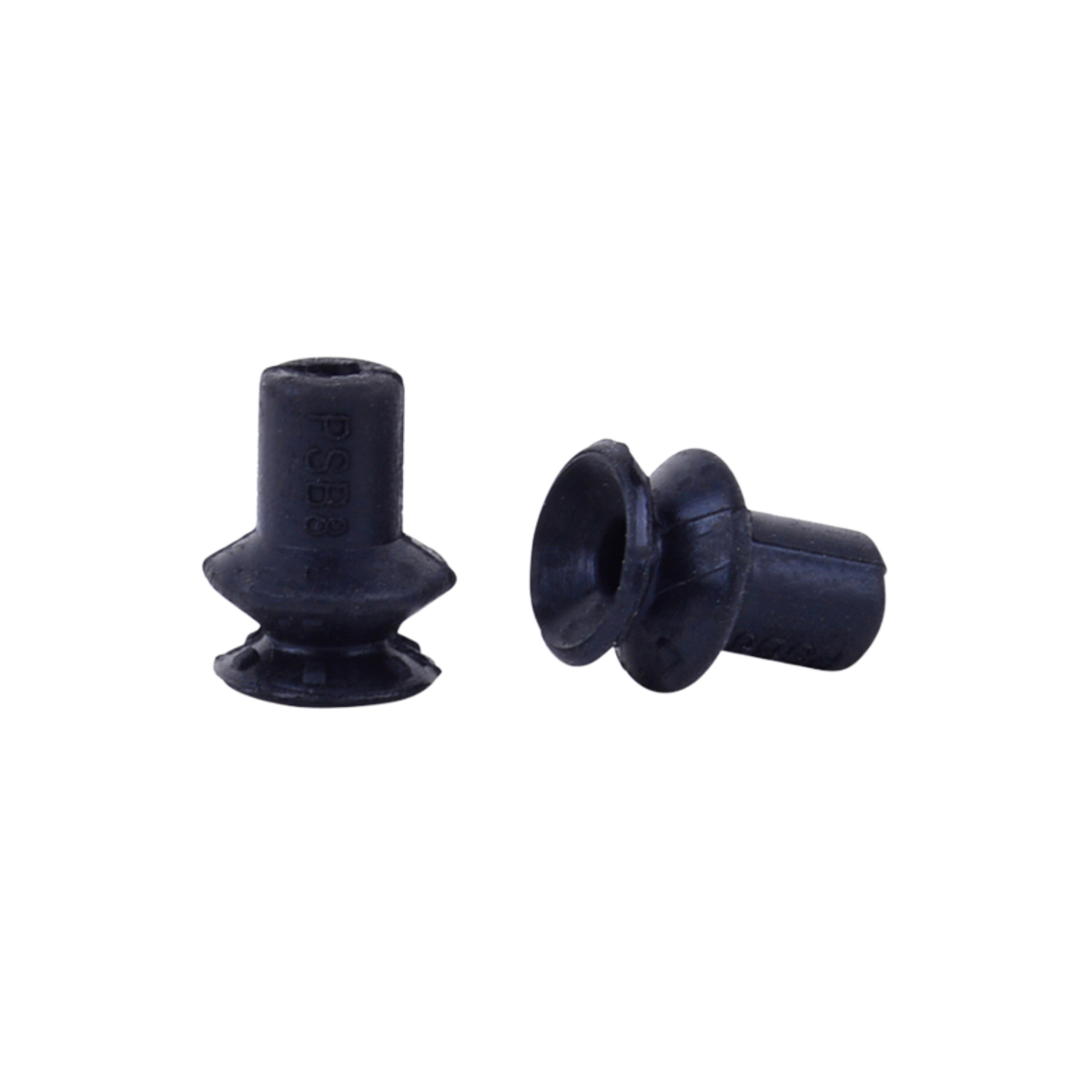

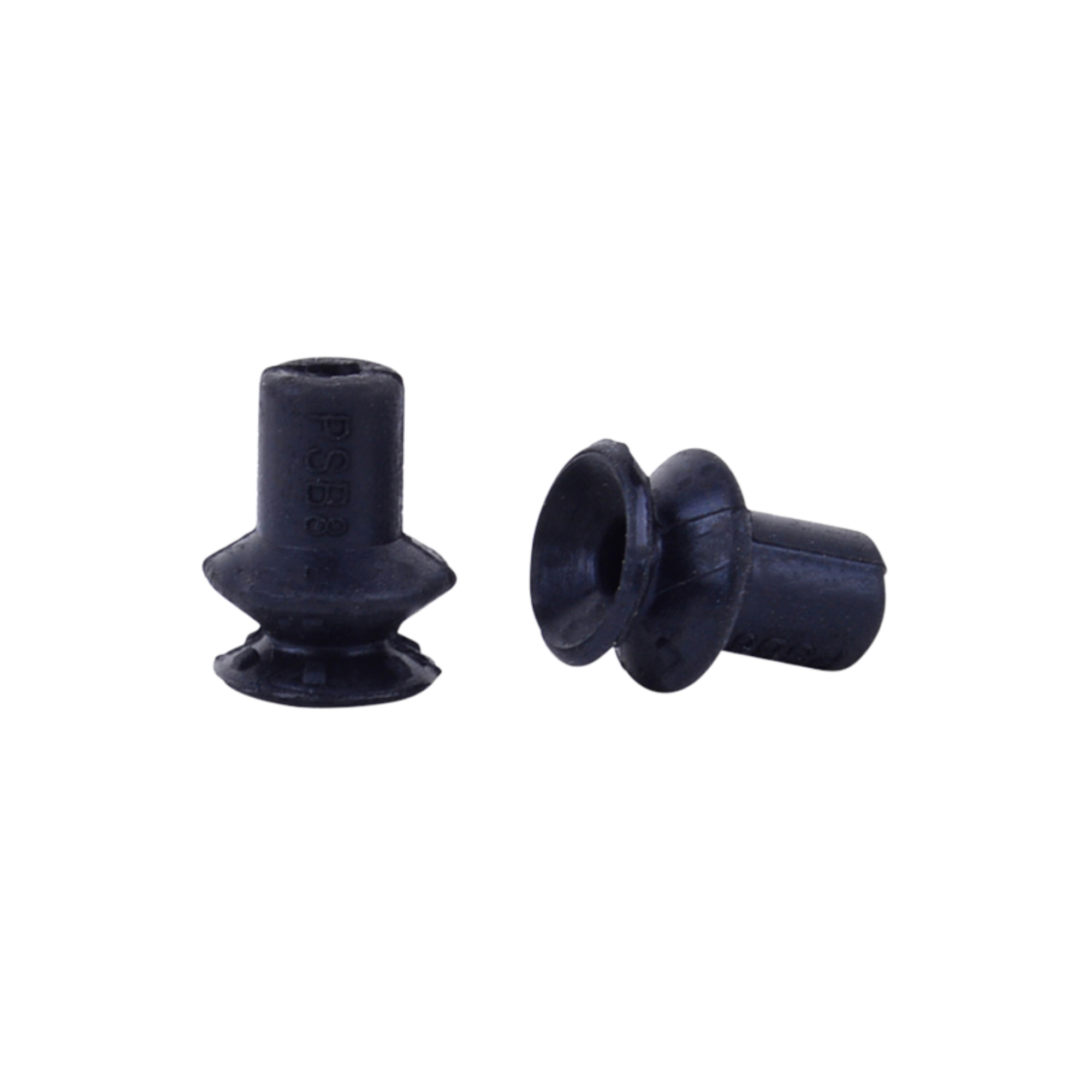

8.8 mm, 1.5-bellows NBR suction cup designed for compact vacuum handling and pick-and-place applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. NBR construction offers good wear and oil resistance with excellent weather and ozone resistance.
Compatible Products: Recommended replacements include B8.10, VB8-N, VSAB8NBR, 3150287, 23.008.166.9, XP-B8N, GSV B8 10, 5116, GSV BON 8, 1145, A-B8.10, A-3150287, VCR-B8P-C, 210.008.010.01, and VP.3150287. Compatible fitting: M5 male barb fitting (400.006).
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | NBR |
| Outside Diameter | 8.8 mm |
| Bellows | 1.5 |
| Thread Size | None |
| Cleats | No |
| Color | Black |
| Weight | 0.00044 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 0.11 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.05 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 0.33 lbs. |
| Vertical Lifting Capacity at 18 inHg | 0.16 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 0.50 lbs. |
| Vertical Lifting Capacity at 27 inHg | 0.25 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -40 to 266 °F (-40 to +130 °C) |
