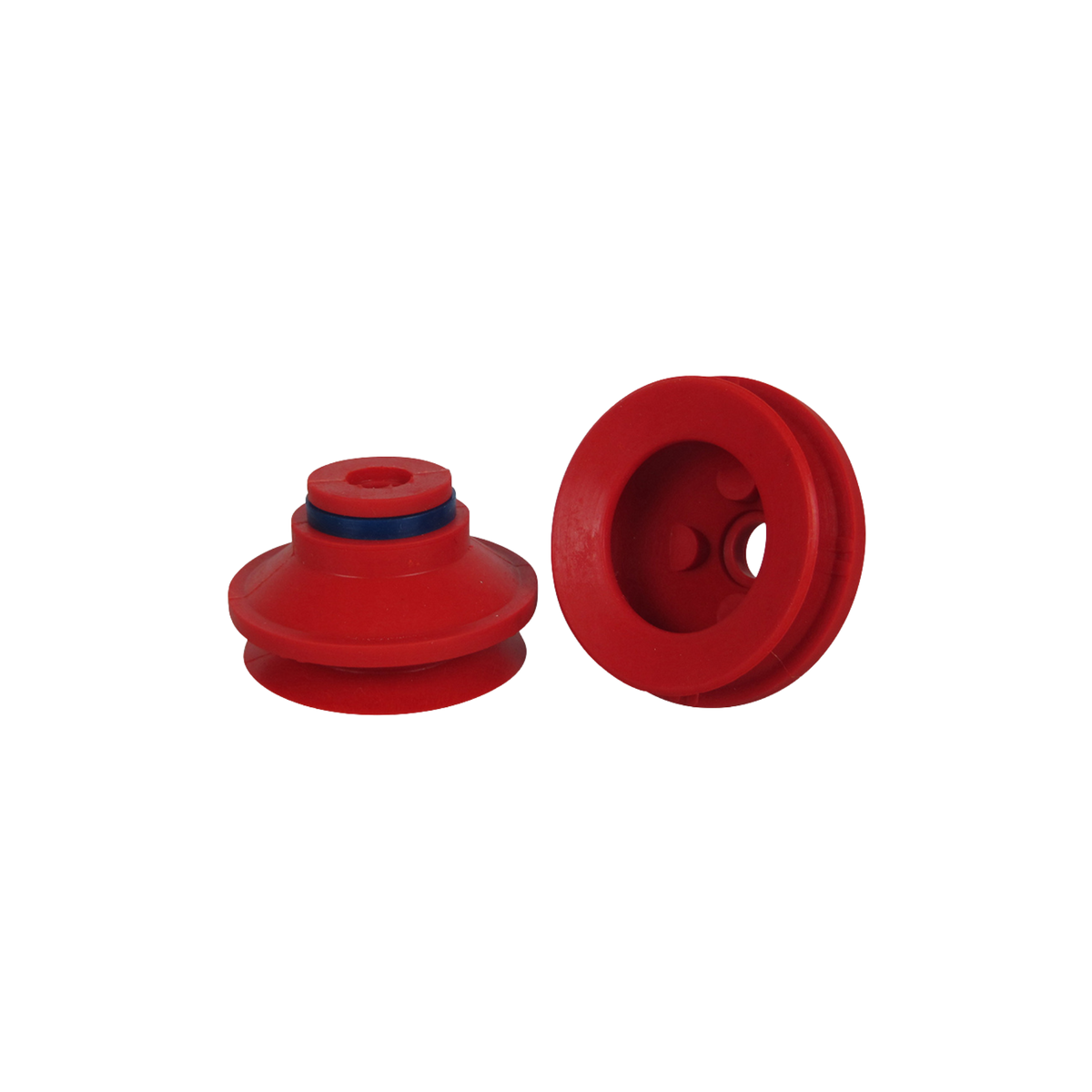

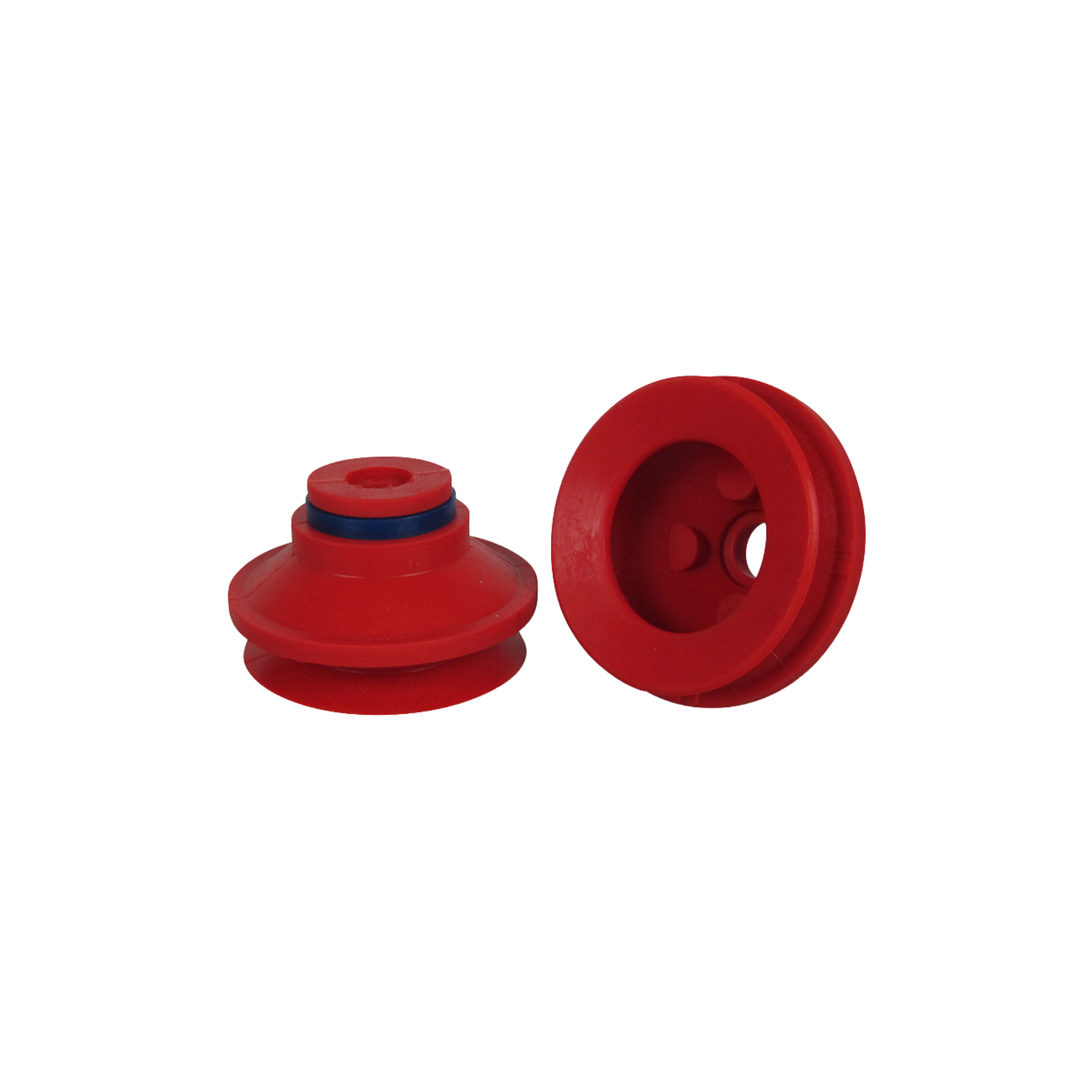

VacMotion | 52mm Single Bellows Silicone Suction Cup | PSB50-SIR

Mfr. Part #: PSB50-SIR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 218546

52 mm, 1.5-bellows silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacements include B50.20, 31.50.233S, B50-2.20, 0101108, 0101110, XP-B50S, GSV B50 2.20, GSV B50 2 20, 2382, GSV B50 20, 1420, VB50-S, VFB50-2S, 210.052.032.02R, S.B50S50.XXX.00, and S.B502S50.XXX.02. Compatible fittings include G3/8" male with filter screen (403.011), G1/4" male (402.015), G1/8" female (401.004), G3/8" female with filter screen (25050-21), G1/8" female with mesh filter (401.053), and 3/8" NPT male with filter screen (403.012)
Feature Set
• 1.5-bellows design

• Silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	Silicone
Outside Diameter	52.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Red
Weight	0.0485 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	3.95 lbs.
Vertical Lifting Capacity at 6 inHg	1.97 lbs.
Horizontal Lifting Capacity at 18 inHg	11.85 lbs.
Vertical Lifting Capacity at 18 inHg	5.92 lbs.
Horizontal Lifting Capacity at 27 inHg	17.77 lbs.
Vertical Lifting Capacity at 27 inHg	8.88 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-40 to 266 °F (-40 to +130 °C)
