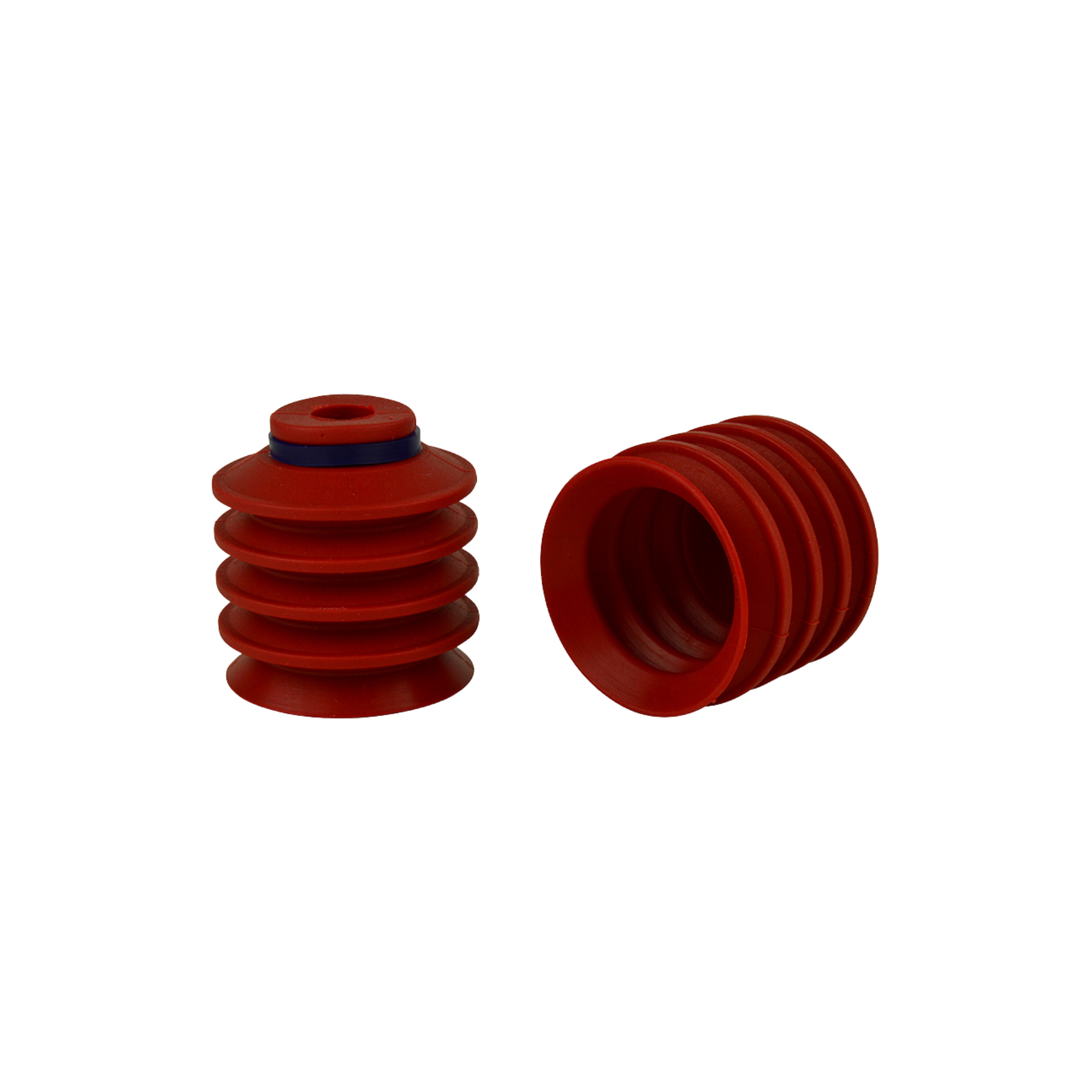

VacMotion | 50mm multiple bellows vacuum cup. Red silicone | PMB50-SIR

Mfr. Part #: PMB50-SIR

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222205

50 mm, 4.5-bellows red silicone suction cup designed for vacuum handling and bag-handling applications. The multiple-bellows construction provides flexibility for uneven surfaces and helps accommodate changes in surface height. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include PMB50-5-SIR, BL50-5.20, and other PMB50-SIR configurations. Compatible fittings include G1/8", G1/4", and G3/8" male and female fittings, depending on the application.
Feature Set
• 4.5-bellows design

• Silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	Silicone
Outside Diameter	50.0 mm
Bellows	4.5
Thread Size	None
Cleats	No
Color	Red
Weight	0.075 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	3.65 lbs.
Vertical Lifting Capacity at 6 inHg	1.82 lbs.
Horizontal Lifting Capacity at 18 inHg	10.95 lbs.
Vertical Lifting Capacity at 18 inHg	5.47 lbs.
Horizontal Lifting Capacity at 27 inHg	16.43 lbs.
Vertical Lifting Capacity at 27 inHg	8.21 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
