Mfr. Part #: PSB5-SIT
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222183

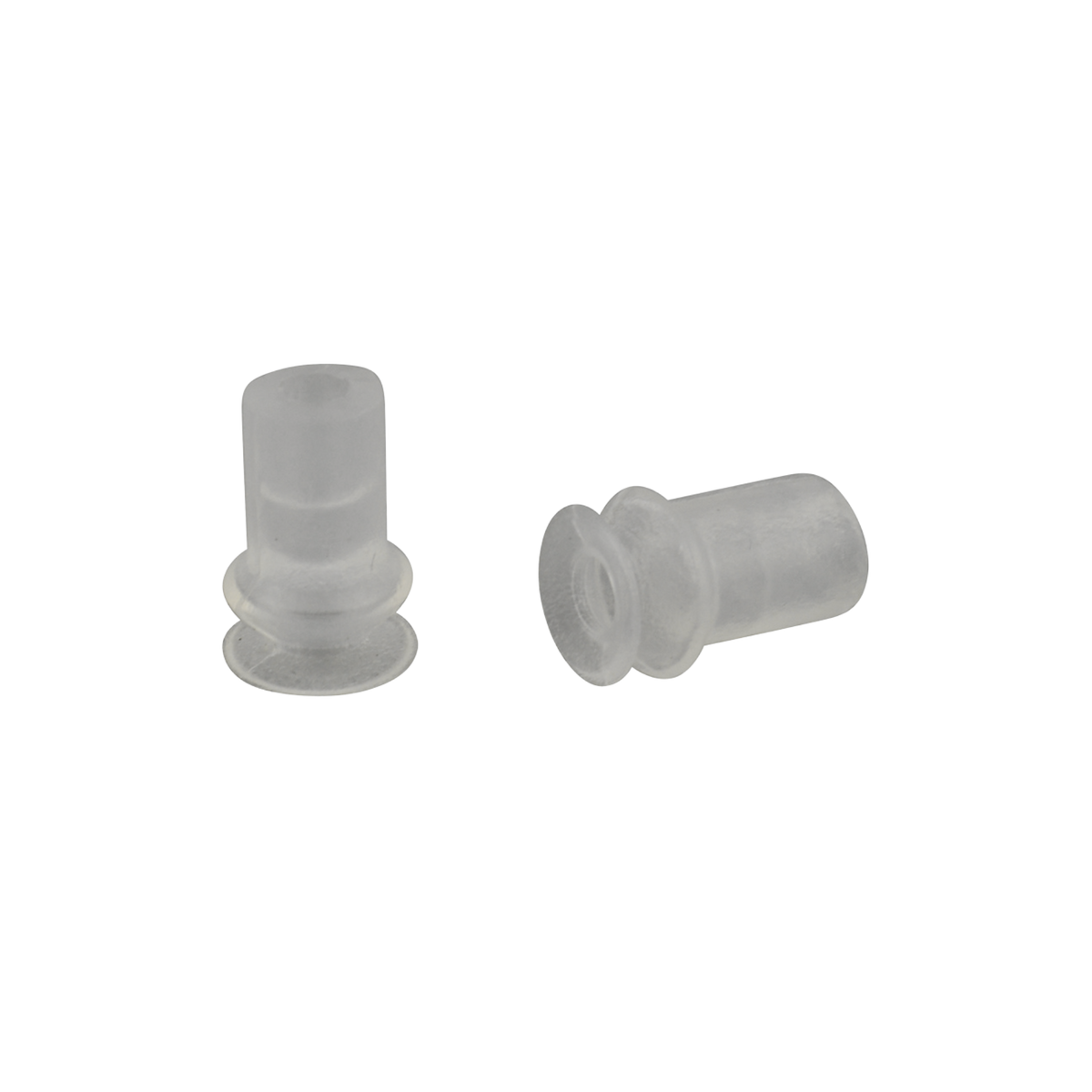

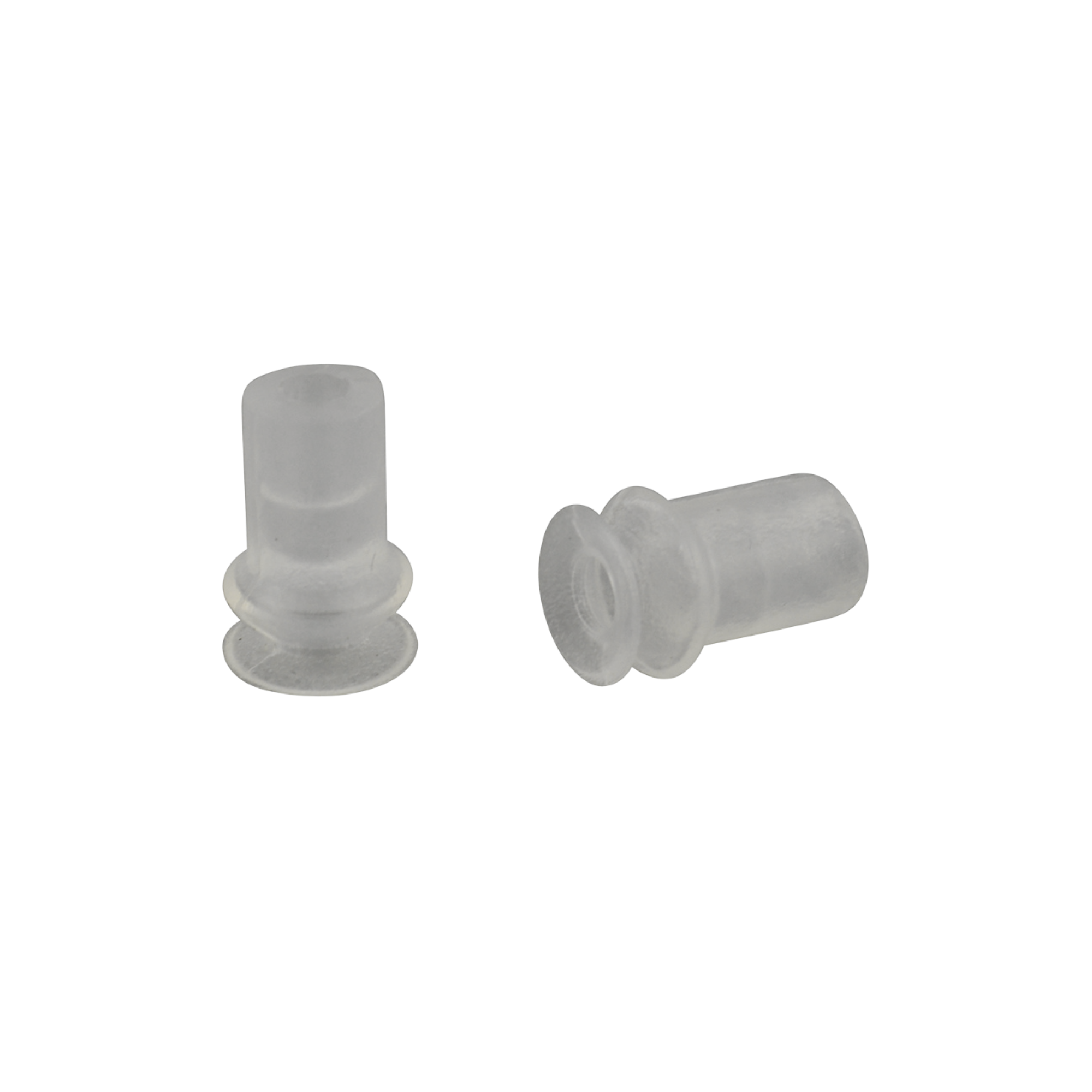

5.4 mm, 1.5-bellows FDA silicone suction cup designed for small-part vacuum handling and pick-and-place applications. The flexible bellows construction provides level compensation for uneven surfaces and helps with sheet separation and de-stacking. FDA silicone offers good wear and oil resistance with excellent weather and ozone resistance.
Compatible Products: Recommended replacement cups include VB5-CSIL, 0200277, B5.21, GSV BOS 5, 1142, A-B5.20, VCR-B5P-S, and 210.005.045.02. Compatible fitting: M5 male barb fitting (400.006).
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | FDA Silicone |
| Outside Diameter | 5.4 mm |
| Bellows | 1.5 |
| Thread Size | None |
| Cleats | No |
| Color | Translucent |
| Weight | 0.0004 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 0.04 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.02 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 0.12 lbs. |
| Vertical Lifting Capacity at 18 inHg | 0.06 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 0.19 lbs. |
| Vertical Lifting Capacity at 27 inHg | 0.09 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -94 to 392 °F (-70 to 200 °C) |
