Mfr. Part #: PSB5-NBR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222184

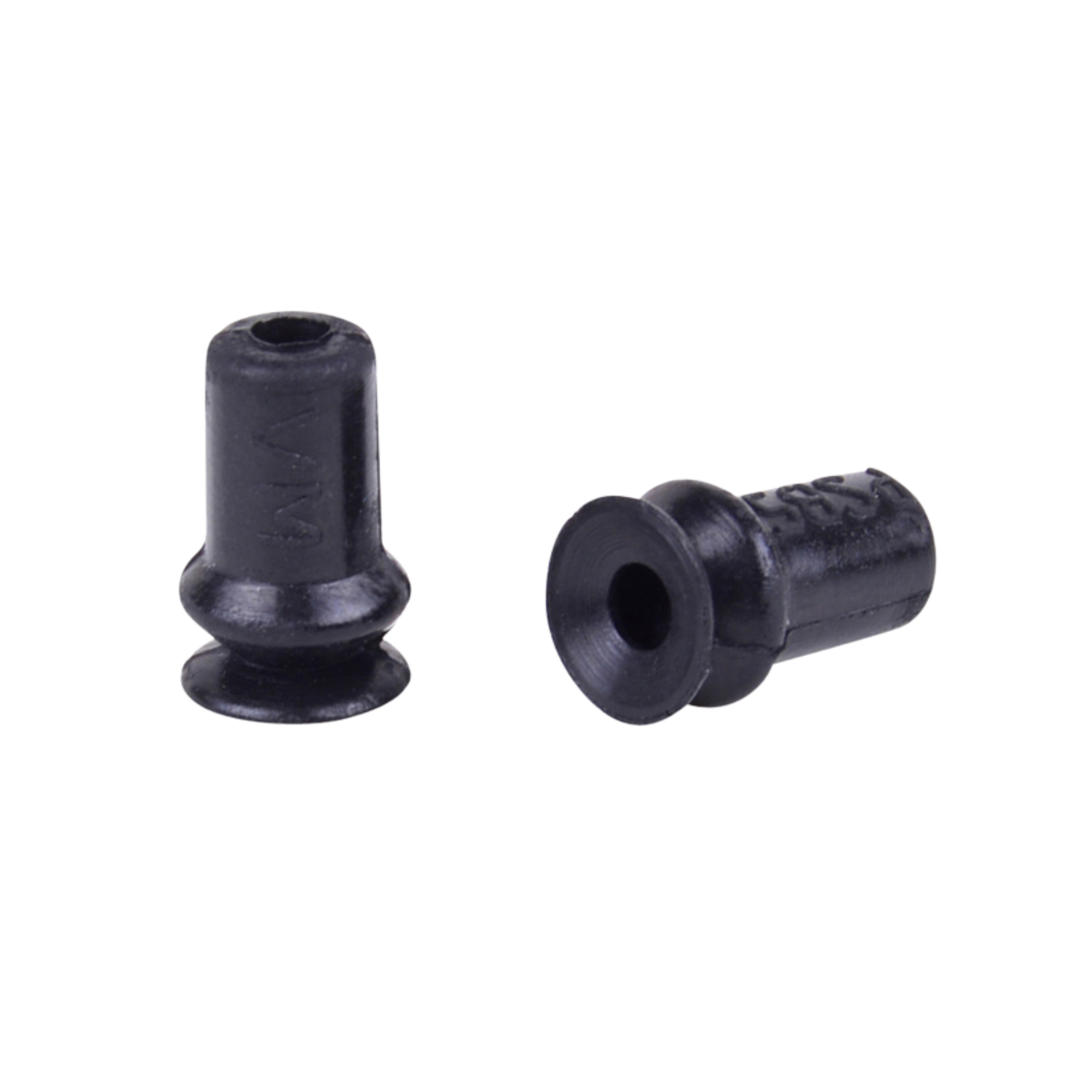

5.4 mm, 1.5-bellows NBR suction cup designed for small-part vacuum handling and pick-and-place applications. The flexible bellows construction provides height compensation while maintaining reliable gripping on uneven or variable surfaces. NBR construction is suited for general industrial vacuum handling applications.
Compatible Products: Recommended replacement cups include B5.10, 3150286, XP-B5N, 210.005.045.01, 23.005.286.9, GSV B5 10, 5115, GSV BON 5, A-B8.10, A-3150287, BSB005NB50, VSAB5NBR, and VB5-N.
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | NBR |
| Outside Diameter | 5.4 mm |
| Bellows | 1.5 |
| Thread Size | None |
| Cleats | No |
| Color | Black |
| Weight | 0.00042 lbs. |
| Fitting Included | No |
| Temperature Range | -40 to 266 °F (-40 to 130 °C) |
