VacMotion | 40mm single bellows FDA Silicone suction cup | PB40-SIT

Mfr. Part #: PB40-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222410

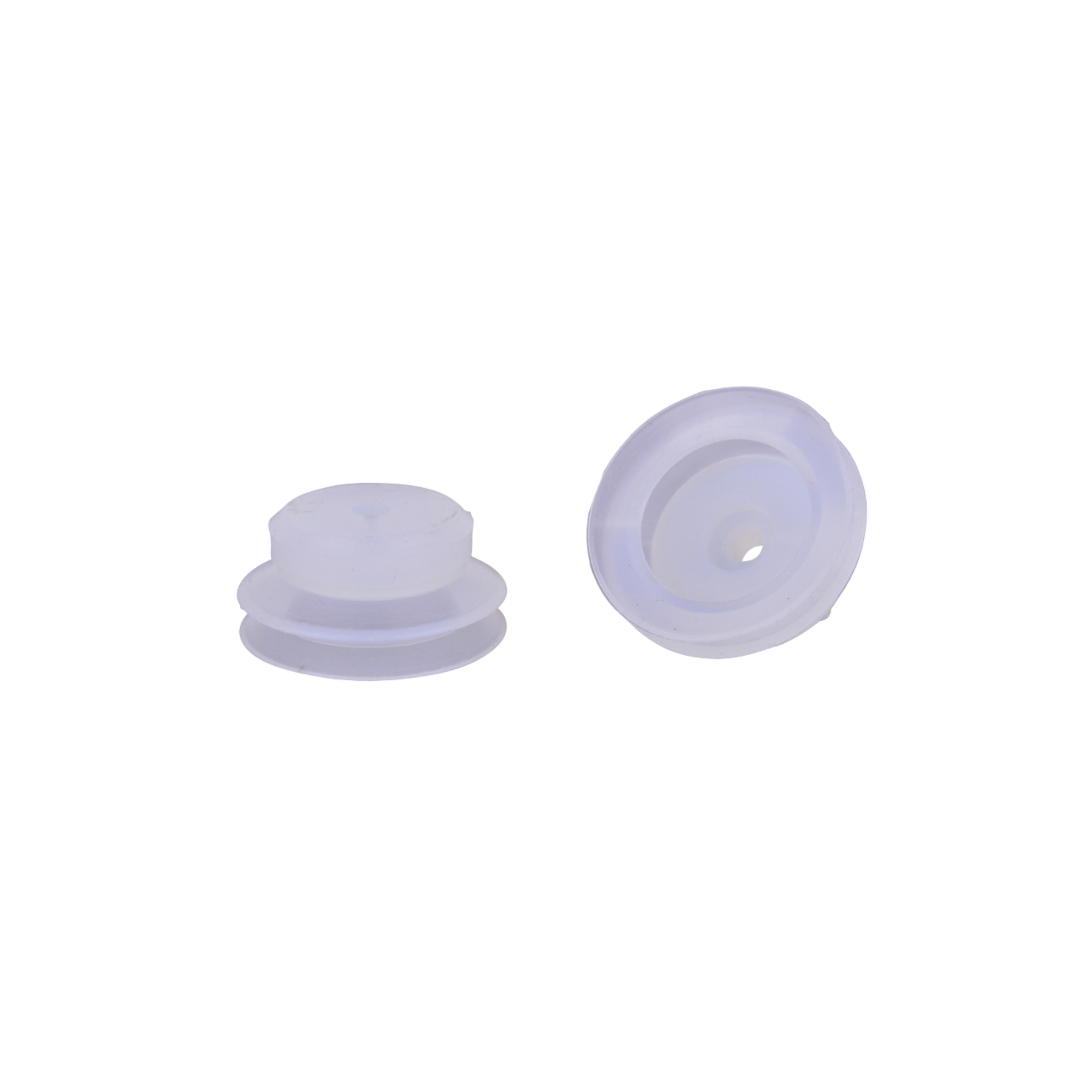

40 mm single-bellows FDA silicone suction cup designed for vacuum handling applications. Its flexible bellows construction helps accommodate uneven or curved surfaces while providing reliable gripping performance. The FDA silicone material offers good wear and oil resistance along with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include PJG-40-SI, C-BS1.5-40-SIT, and 210.040.153.02. Compatible fittings include G1/8 male fitting 130.538 and G1/8 female fitting 130.061.
Feature Set
- Single-bellows design
- FDA silicone construction
- Good wear resistance
- Good oil resistance
- Excellent weather and ozone resistance
- Wide temperature range
- No fitting included
- G1/8 male fitting available
- G1/8 female fitting available
- Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	40.0 mm
Bellows	1.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.012 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	2.33 lbs.
Vertical Lifting Capacity at 6 inHg	1.16 lbs.
Horizontal Lifting Capacity at 18 inHg	7.01 lbs.
Vertical Lifting Capacity at 18 inHg	3.50 lbs.
Horizontal Lifting Capacity at 27 inHg	10.51 lbs.
Vertical Lifting Capacity at 27 inHg	5.25 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
