Mfr. Part #: PSB30-2-SIR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222197

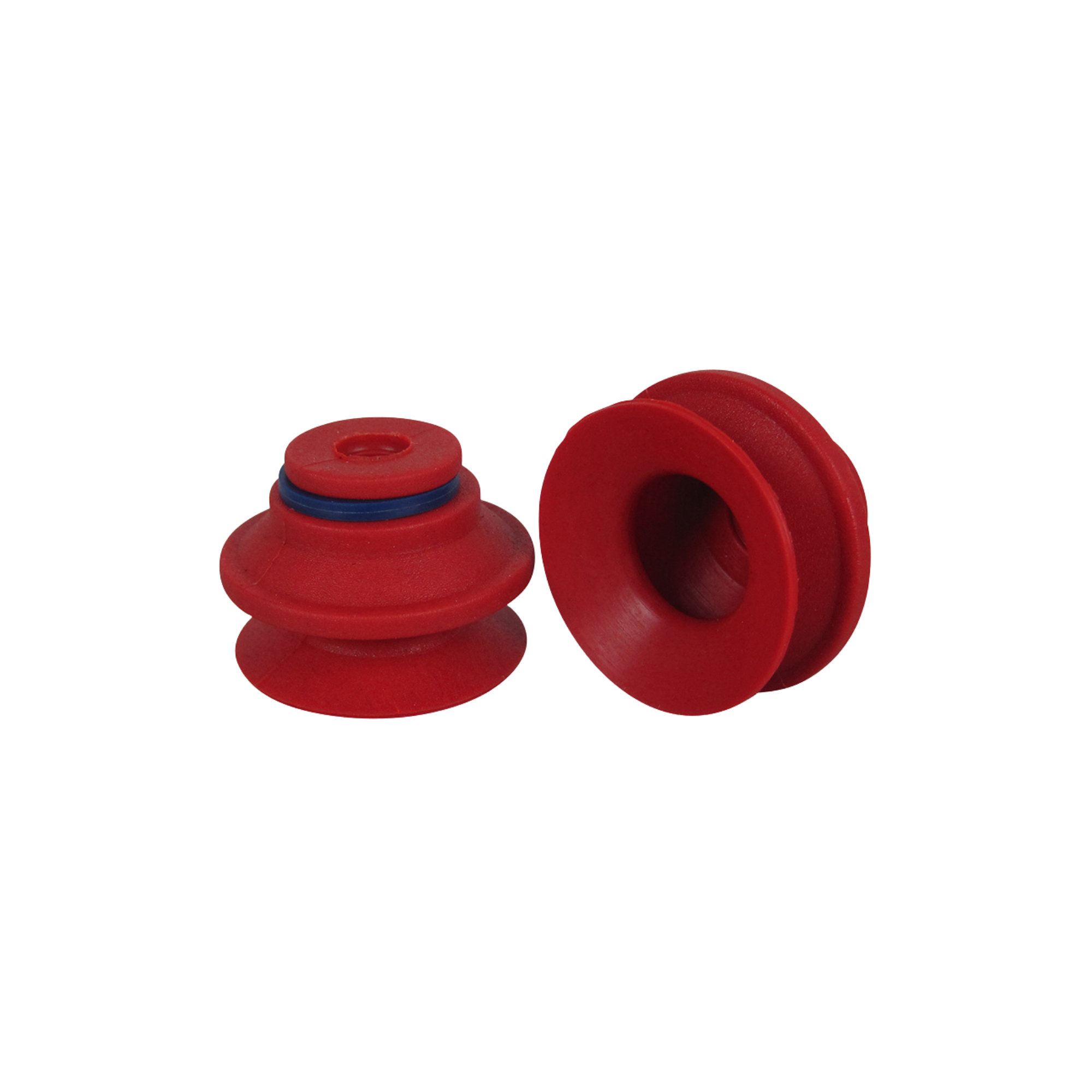

34 mm, 1.5-bellows red silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven surfaces and height differences while providing reliable gripping performance. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.
Compatible Products: Recommended replacement cups include VCR-B30P-C, B30-2.20.04AC, 0101432, and other compatible B30-series cups. Compatible fittings include G1/8" male (401.001), G1/8" female (130.251), G1/4" female with filter screen (25040-21), and G1/8" female with screen (SCF40-G18FS).
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | Silicone |
| Outside Diameter | 34.0 mm |
| Bellows | 1.5 |
| Thread Size | None |
| Cleats | No |
| Color | Red |
| Weight | 0.022 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 1.68 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.84 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 5.06 lbs. |
| Vertical Lifting Capacity at 18 inHg | 2.53 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 7.59 lbs. |
| Vertical Lifting Capacity at 27 inHg | 3.79 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -94 to 392 °F (-70 to 200 °C) |
