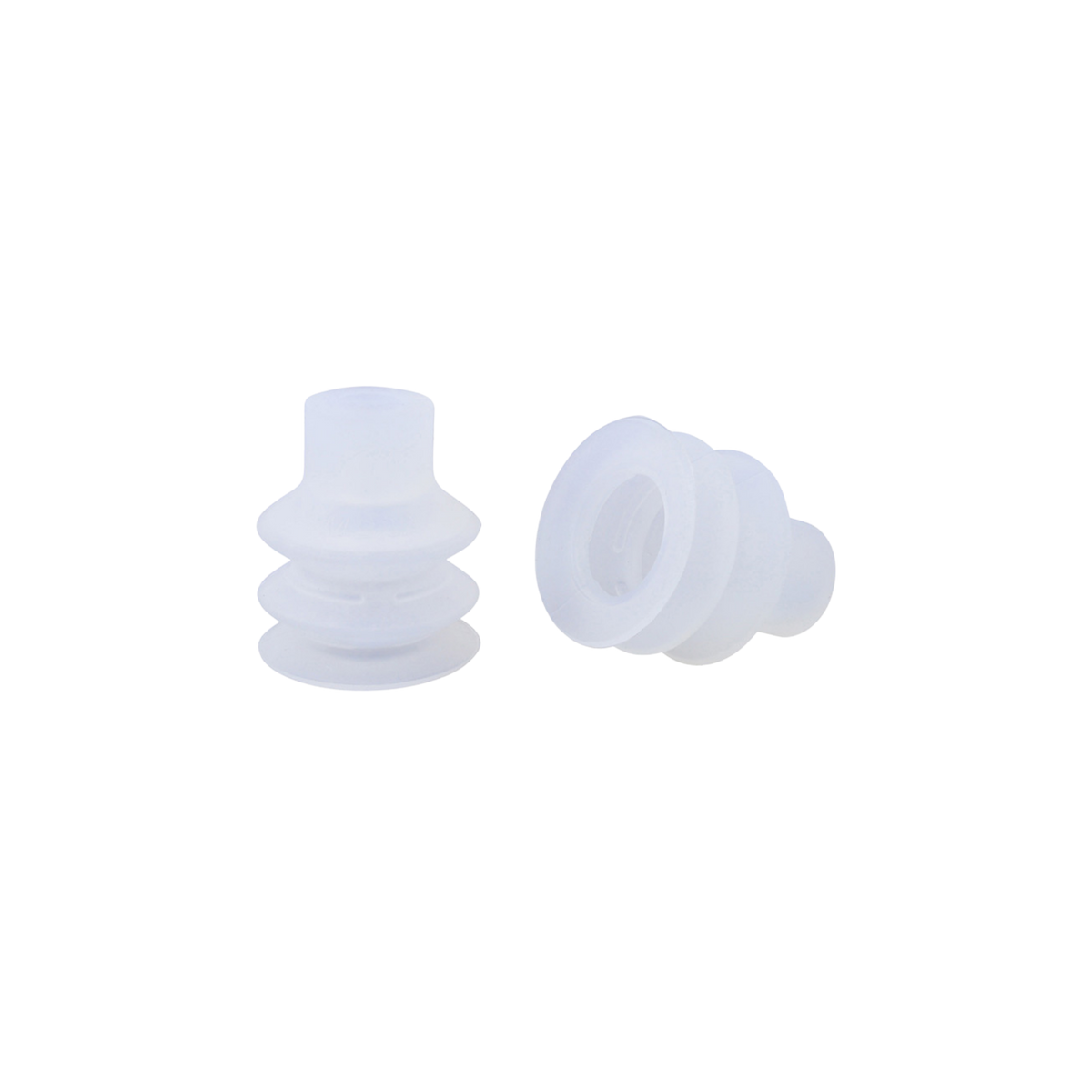

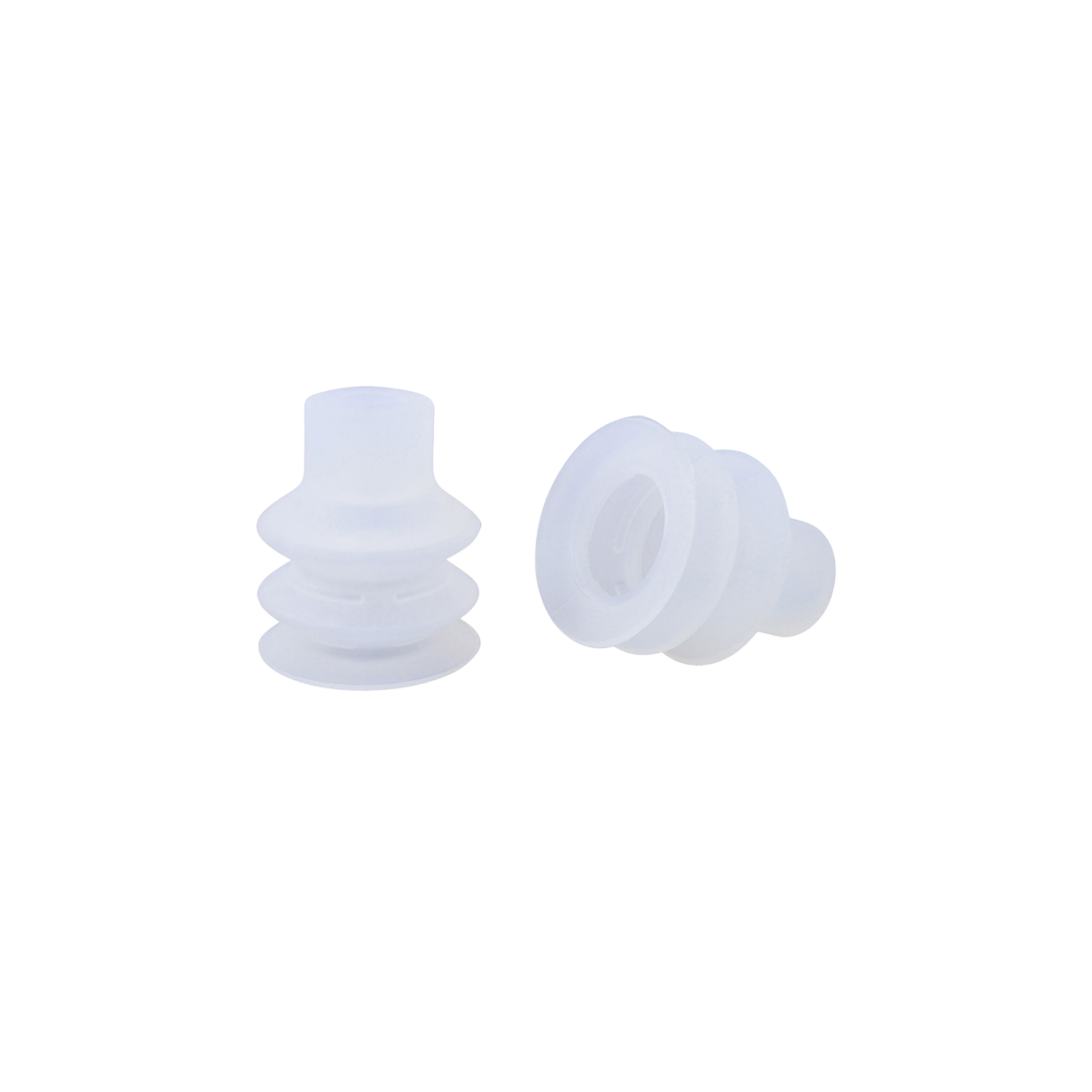

VacMotion | 32mm 2.5 bellows FDA Silicone suction cup | MB32-SIT

Mfr. Part #: MB32-SIT

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 222403

32 mm, 2.5-bellows FDA silicone suction cup designed for vacuum handling applications. The flexible bellows construction helps compensate for uneven or curved surfaces while providing reliable gripping performance. FDA silicone material offers good wear and oil resistance with excellent weather and ozone resistance.

Compatible Products: Recommended replacement cups include VS32SIT5, B2.5-32-SIT, PCG-30-NBR, PCG-30-SI, FG 32 SI-55 N018, 10.01.06.00144, 21.032.075.2/4, 21.032.075.8, VN3 30 S, 3275, VCC-B-126-S, and 220.032.003.02. Compatible fittings include G1/8" male (401.032), G1/8" female (401.034), G1/4" male (402.001), G1/4" female (402.009), 1/4" NPT female (402.010), 1/8" NPT male (401.033), 1/8" NPT female (401.035), and 1/4" NPT male (402.017).
Feature Set
• 2.5-bellows design

• FDA silicone construction

• Good wear resistance

• Good oil resistance

• Excellent weather and ozone resistance

• Wide temperature range

• Multiple compatible fittings

• Multiple interchangeable replacements available

Specification	Details
Style	Bellows
Material	FDA Silicone
Outside Diameter	32.0 mm
Bellows	2.5
Thread Size	None
Cleats	No
Color	Translucent
Weight	0.022 lbs.
Fitting Included	No
Horizontal Lifting Capacity at 6 inHg	1.49 lbs.
Vertical Lifting Capacity at 6 inHg	0.74 lbs.
Horizontal Lifting Capacity at 18 inHg	4.48 lbs.
Vertical Lifting Capacity at 18 inHg	2.24 lbs.
Horizontal Lifting Capacity at 27 inHg	6.73 lbs.
Vertical Lifting Capacity at 27 inHg	3.36 lbs.
Wear Resistance	Good
Oil Resistance	Good
Weather & Ozone Resistance	Excellent
Temperature Range	-94 to 392 °F (-70 to 200 °C)
