Mfr. Part #: PMB30-SIR
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 222203

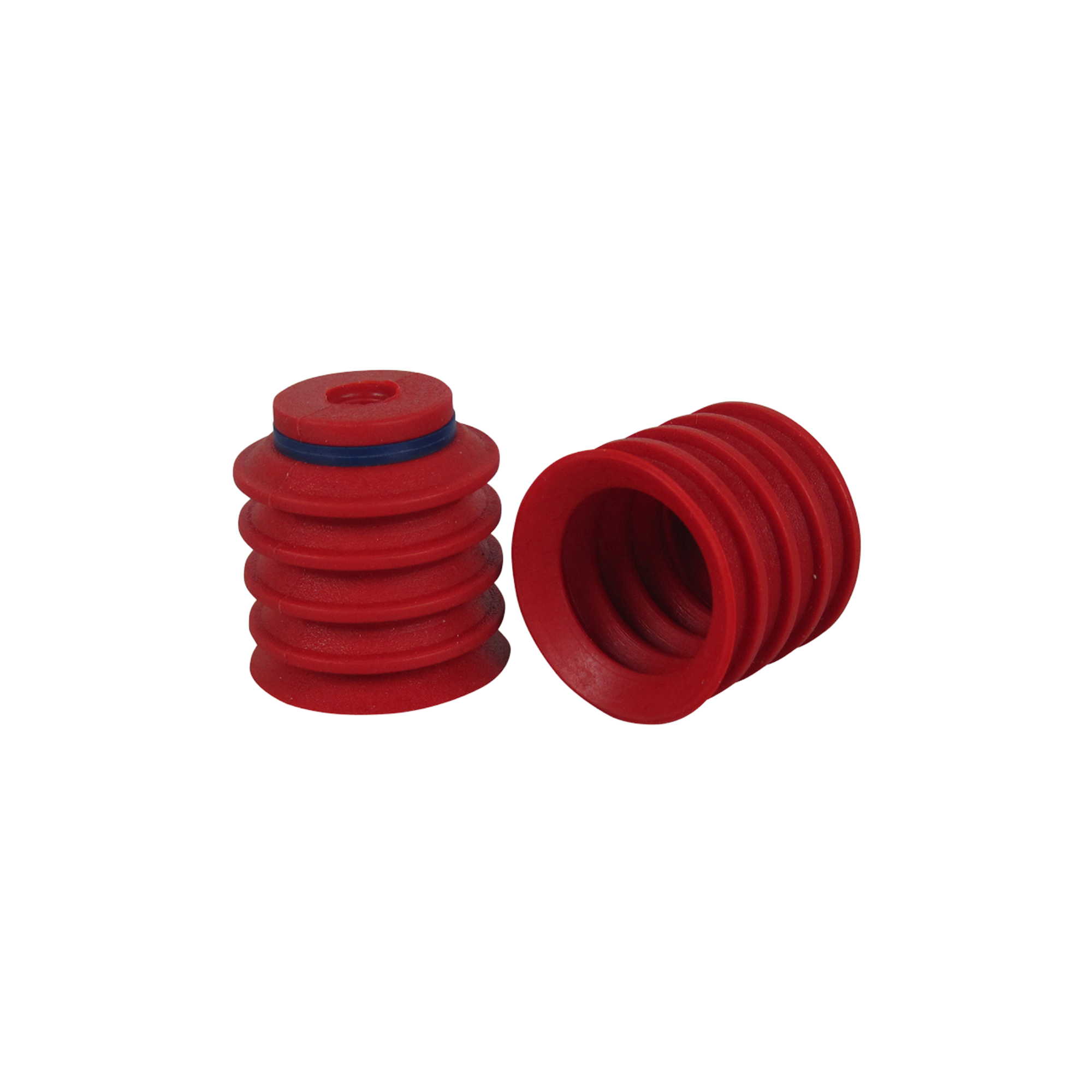

31 mm, 4.5-bellows silicone suction cup designed for vacuum handling applications. The multi-bellows construction provides flexibility for uneven surfaces and height differences while maintaining reliable gripping performance. Silicone construction offers good wear and oil resistance with excellent weather and ozone resistance.
| Specification | Details |
|---|---|
| Style | Bellows |
| Material | Silicone |
| Outside Diameter | 31.0 mm |
| Bellows | 4.5 |
| Thread Size | None |
| Cleats | No |
| Color | Red |
| Weight | 0.0230 lbs. |
| Fitting Included | No |
| Horizontal Lifting Capacity at 6 inHg | 1.40 lbs. |
| Vertical Lifting Capacity at 6 inHg | 0.70 lbs. |
| Horizontal Lifting Capacity at 18 inHg | 4.21 lbs. |
| Vertical Lifting Capacity at 18 inHg | 2.10 lbs. |
| Horizontal Lifting Capacity at 27 inHg | 6.31 lbs. |
| Vertical Lifting Capacity at 27 inHg | 3.15 lbs. |
| Wear Resistance | Good |
| Oil Resistance | Good |
| Weather & Ozone Resistance | Excellent |
| Temperature Range | -94 to 392 °F (-70 to 200 °C) |
